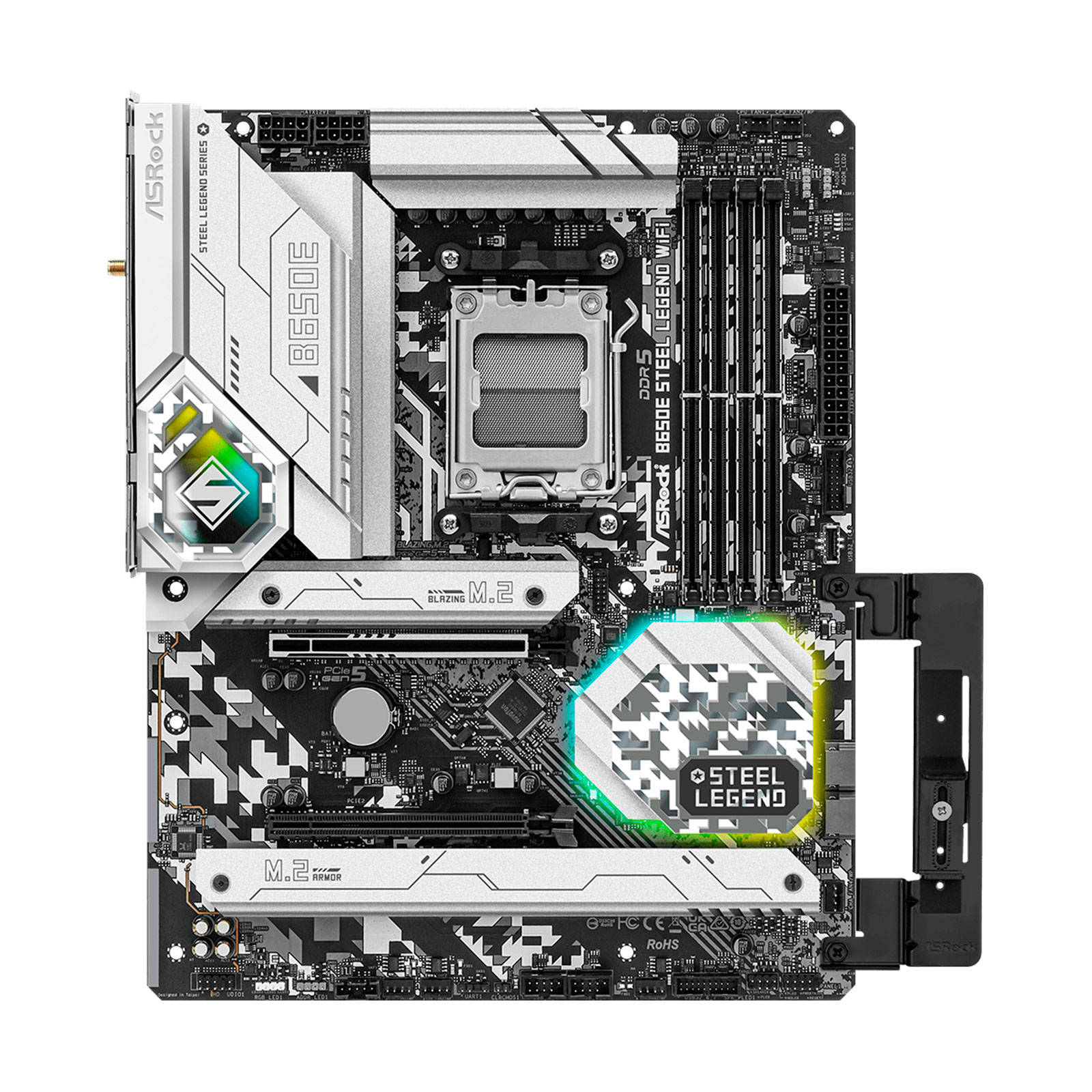

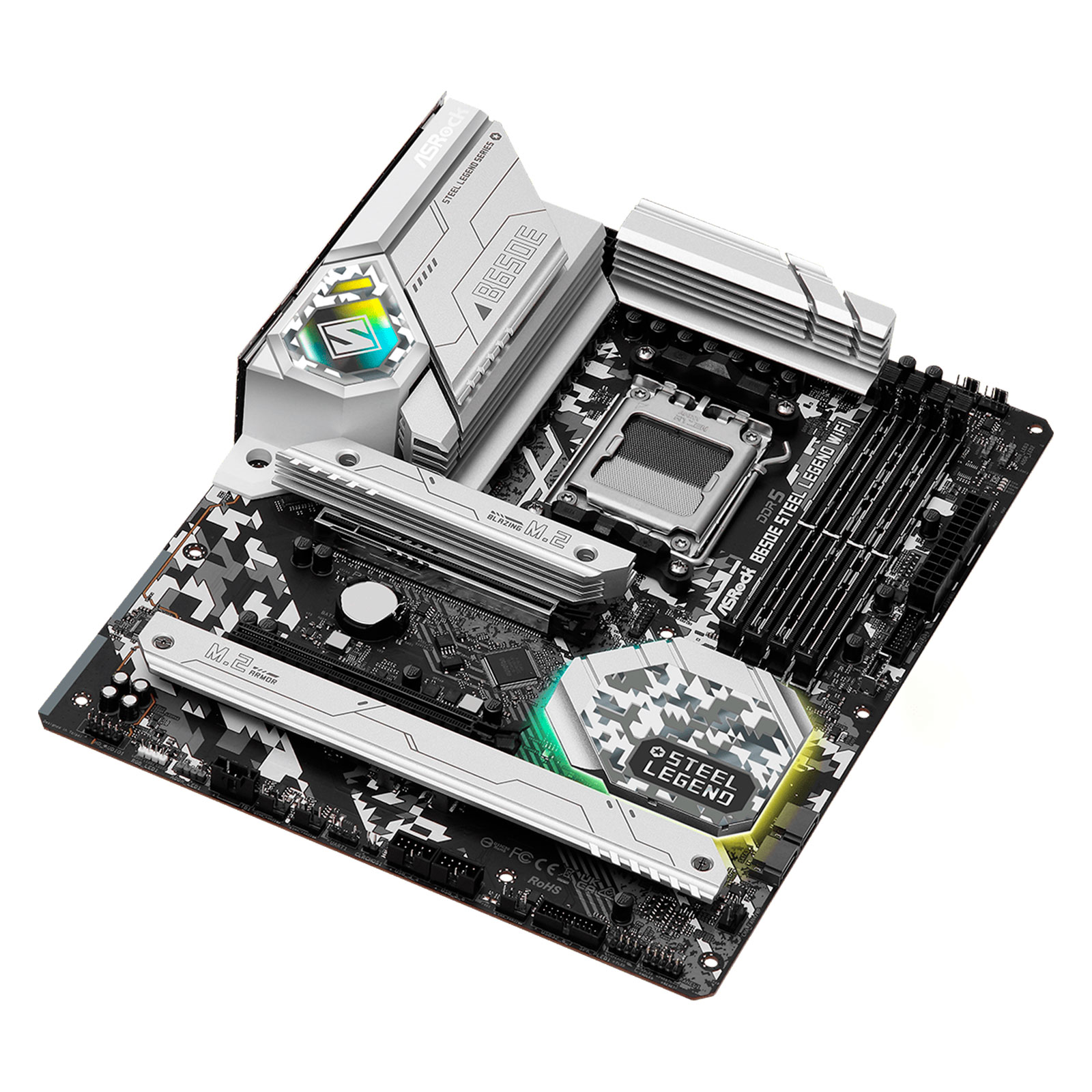

ASROCK B650E STEEL LEGEND WIFI
- Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
- 16+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 7600+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec),
Nahimic Audio - 1 Blazing M.2 (PCIe Gen5x4),
2 Hyper M.2 (PCIe Gen4x4),
2 SATA3 - 1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type A+C (Rear),
8 USB 3.2 Gen1 (4 Rear, 4 Front),
6 USB 2.0 (2 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth 5.2
$270 exc. VAT
Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics.
Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts!
Providing a strong array of materials/components to ensure a stable and reliable performance.
Server Grade Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD,
it also improves memory OC potential to deliver the most extreme memory performance.
DDR5 EXPO & XMP Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details.
All B650E motherboards are built with 8-Layer and premium low-loss materials,
enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7600MHz and beyond by enabling the pre-tested profiles.
Make sure the memory modules are AMD EXPO™/ Intel® XMP capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

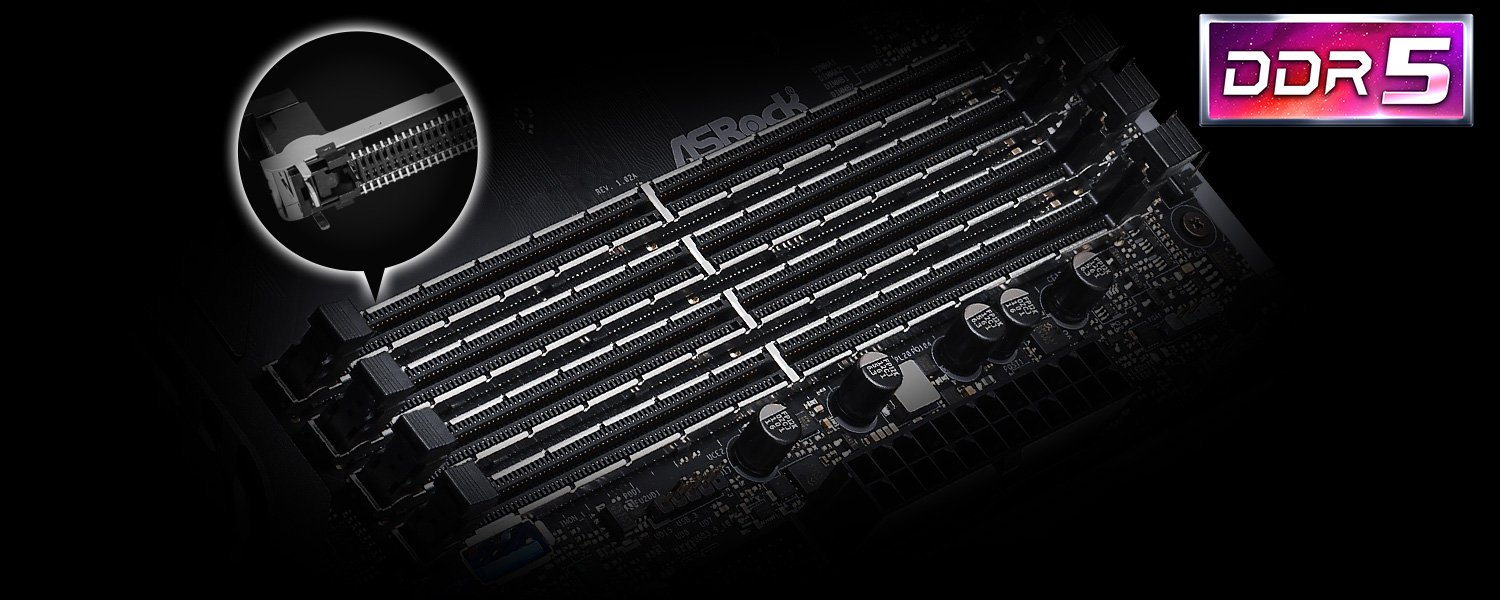

Reinforced DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal,
with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming.
Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF.
Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them.
Nahimic measure and improve to optimize our technology and offer you the best experience.
ASRock Graphics Card Holder
Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

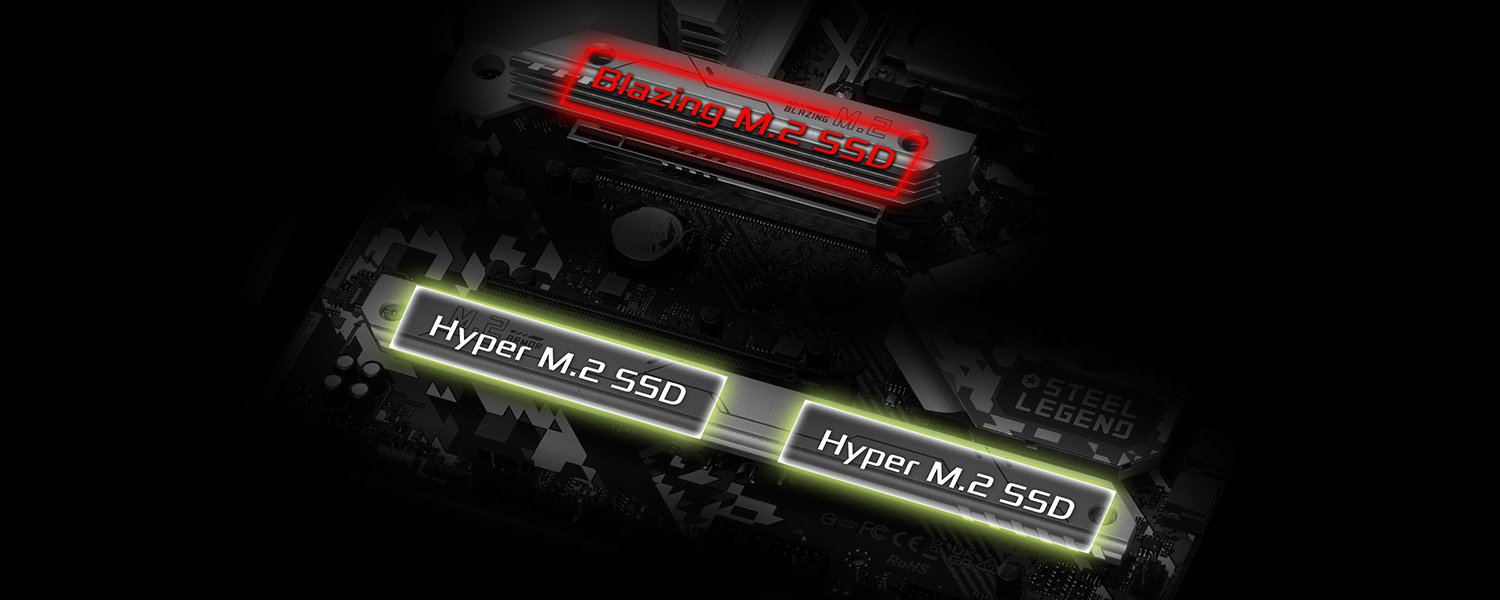

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation,
with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

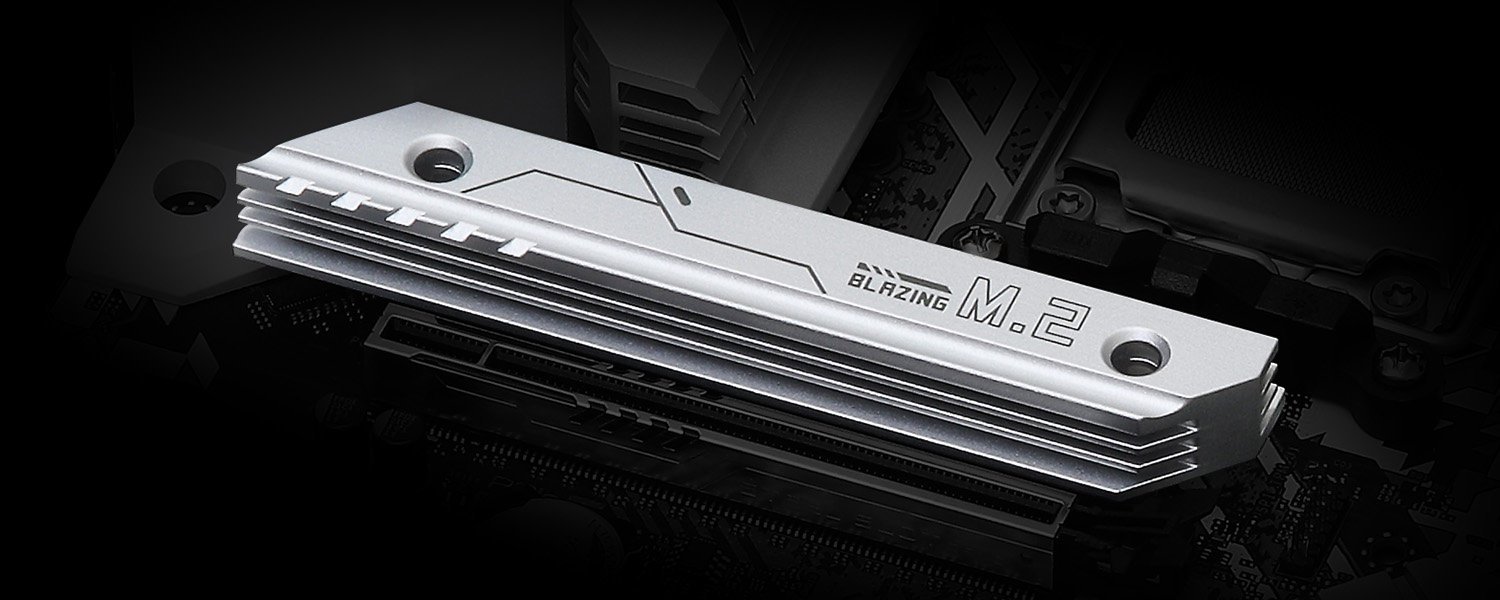

Multi-Layer M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible,
it is able to give better stability while maintaining top performance.
Dragon 2.5 Gb/s LAN
content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet,
you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Wi-Fi 6E 802.11ax
In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
*The availability of Wi-Fi 6E (6GHz) may vary between different countries.
Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region.
It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Front USB 3.2 Gen2x2 Type-C
providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
-
-
Unique FeatureSuperb Productivity
– PCIe Gen5 (Graphics, M.2)
– Dual Channel DDR5
Rock-Solid Durability
– Server-Grade Low-Loss PCB
– 16+2+1 Power Phase, 60A SPS
– Flexible Integrated I/O Shield
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
– 2.5G LAN,
802.11ax Wi-Fi 6EModule
EZ Update
– BIOS Flashback Button
– ASRock Auto Driver Installer
EZ Troubleshooter
– ASRock Post Status Checker -
CPU– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors**The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
-
Chipset– AMD B650
-
Memory– Dual Channel DDR5 Memory Technology
– 4 x DDR5 DIMM Slots
– Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)*
– Max. capacity of system memory: 256GB
– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*Please refer to Memory Support List for more information. -
BIOS– 256Mb AMI UEFI Legal BIOS with GUI support
-
GraphicsIntegrated AMD RDNA™ graphics (Actual support may vary by CPU)
– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz -
Audio– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Nahimic Audio -
LAN– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– Dragon RTL8125BG
– Supports Dragon 2.5G LAN Software
– Smart Auto Adjust Bandwidth Control
– Visual User Friendly UI
– Visual Network Usage Statistics
– Optimized Default Setting for Game, Browser, and Streaming Modes
– User Customized Priority Control
-
-
Wireless LAN– 802.11ax Wi-Fi 6E Module
– Supports IEEE 802.11a/b/g/n/ac/ax
– Supports Dual-Band 2×2 with extended 6GHz band support*
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.2 + High speed class II
– Supports MU-MIMO
