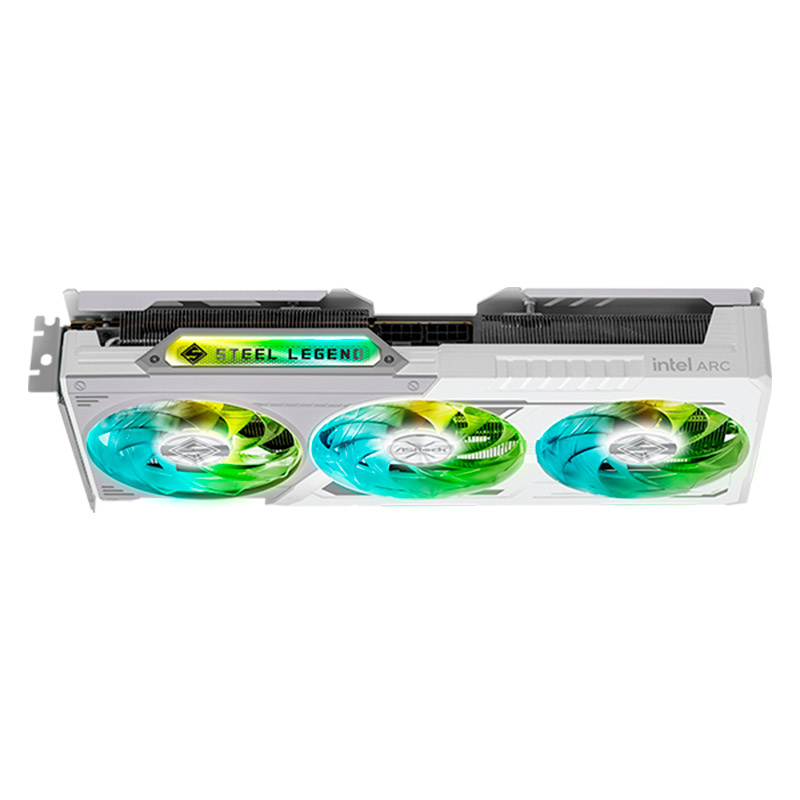

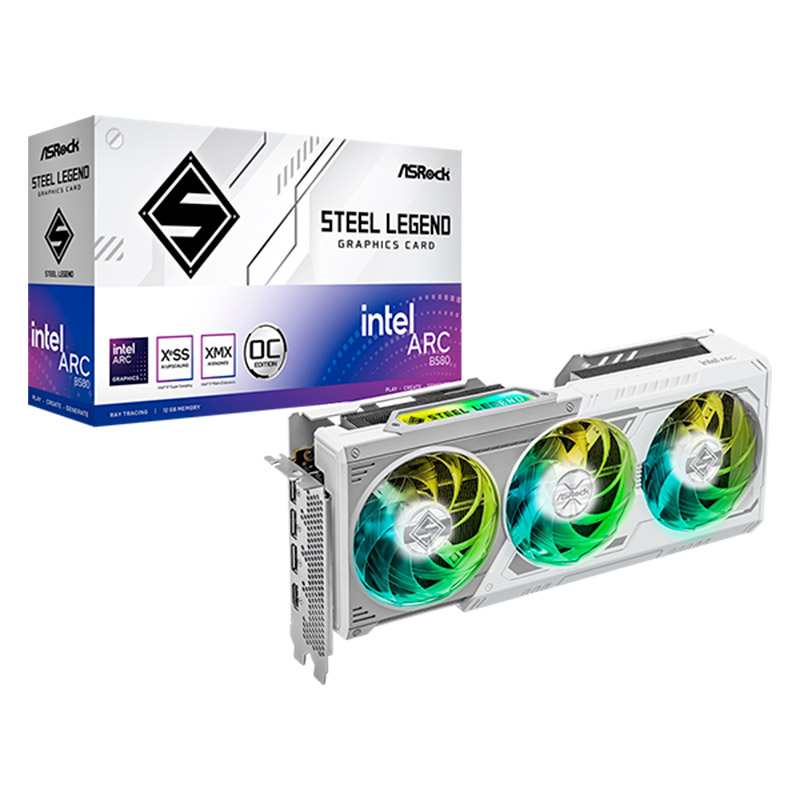

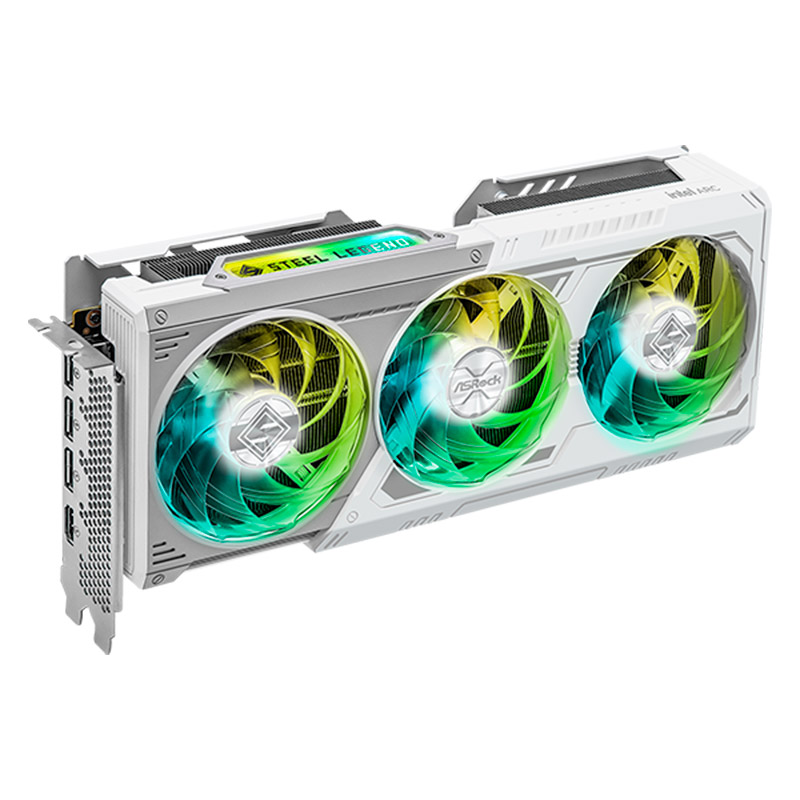

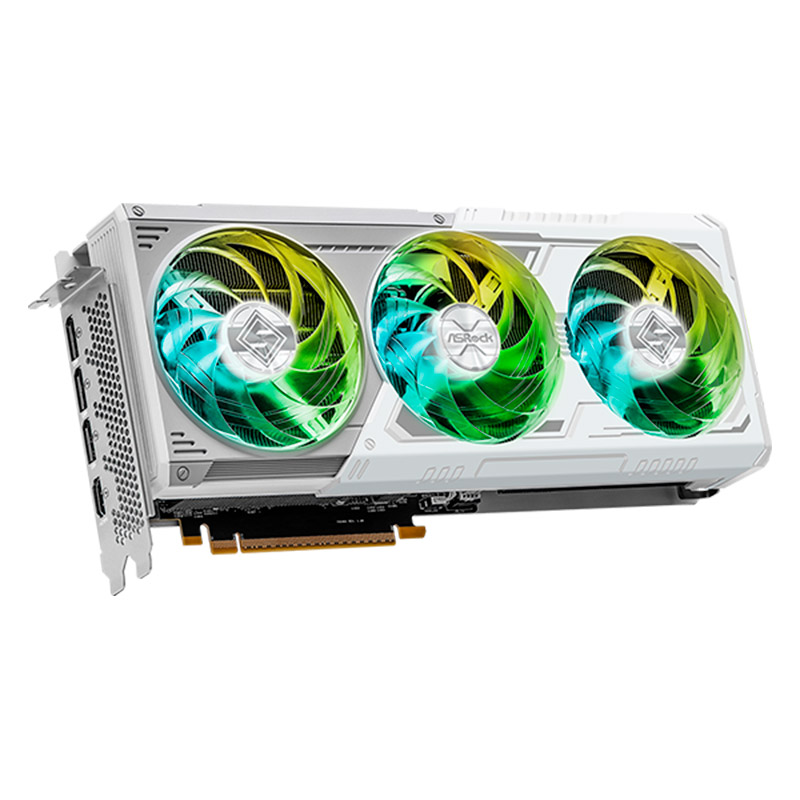

ASROCK INTEL B580 12GB GDDR6 STEELLEGEND 3X WHITE
- Clock: GPU / Memory
GPU Clock: 2800 MHz
Memory Clock: 19 Gbps - Key Specification
Intel Arc™ B580 Graphics
12GB 192-bit GDDR6
Intel Xe2-HPG Architecture
Intel Xe Super Sampling 2 (Intel XeSS 2)
Intel Xe Matrix eXtentions (Intel XMX)
Microsoft® DirectX® 12 Ultimate
2x 8-pin Power Connectors
3x DisplayPort™ 2.1, 1x HDMI™ 2.1a - Key Features
Polychrome SYNC
Triple Fan Design
Striped Ring Fan
Stylish Metal Backplate
Ultra-fit Heatpipe
Air Deflecting Fin
0dB Silent Cooling
Super Alloy Graphics Card
$297 exc. VAT
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off.
It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
ARGB Header
More ARGB, More Fancy.
With the ARGB header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

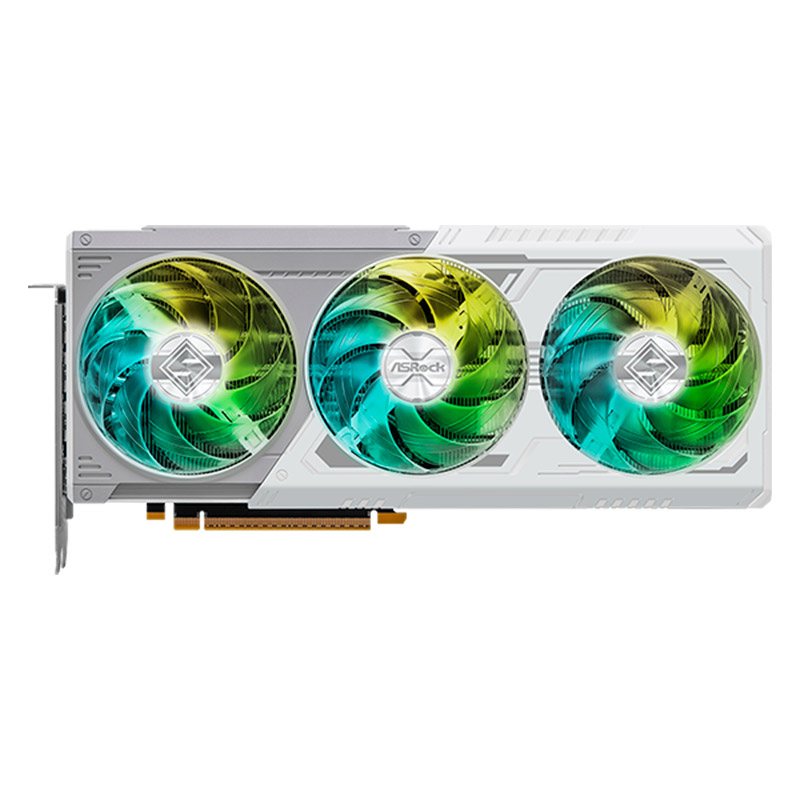

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate
Solid, Refined, Cool.
Designed to avoid PCB bending. The white-themed outlook makes the graphic card more simple and purified in visual.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
– Intel® Arc™ B580 Graphics
Bus Standard – PCI® Express4.0 x8
DirectX – 12 Ultimate
OpenGL – 4.6
Memory – 12GB GDDR6
Engine Clock – 2800 MHz
Intel® XMX Engines – 160
Memory Clock – 19 Gbps
Memory Interface – 192-bit
Resolution – Digital Max Resolution: 7680 x 4320
Interface
– 1 x DisplayPort 2.1 (Primary, up to UHBR13.5)
– 2 x DisplayPort 2.1 (Up to UHBR10)
– 1 x HDMI 2.1a
Graphics Card Interface I/O
HDCP – Yes
Multi-view – 4
Recommended PSU – 650W
Power Connector – 2x 8-pin
Accessories – 1x Quick Installation Guide
Dimensions – 298 x 131 x 51 mm, 2.6-slot
Net Weight – 959 g
