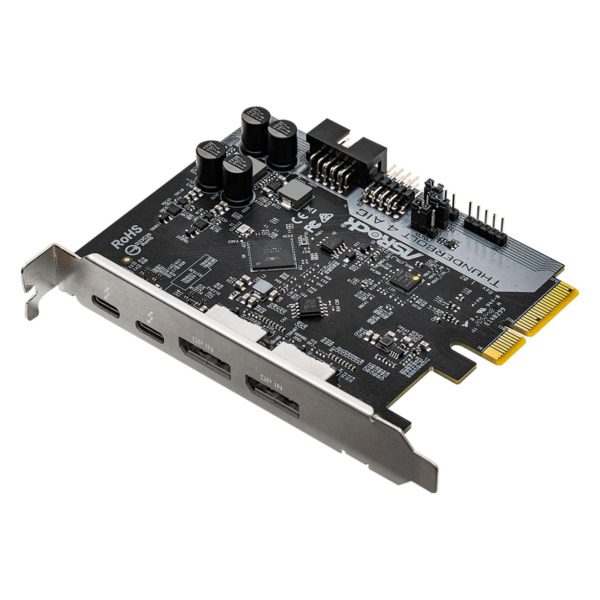

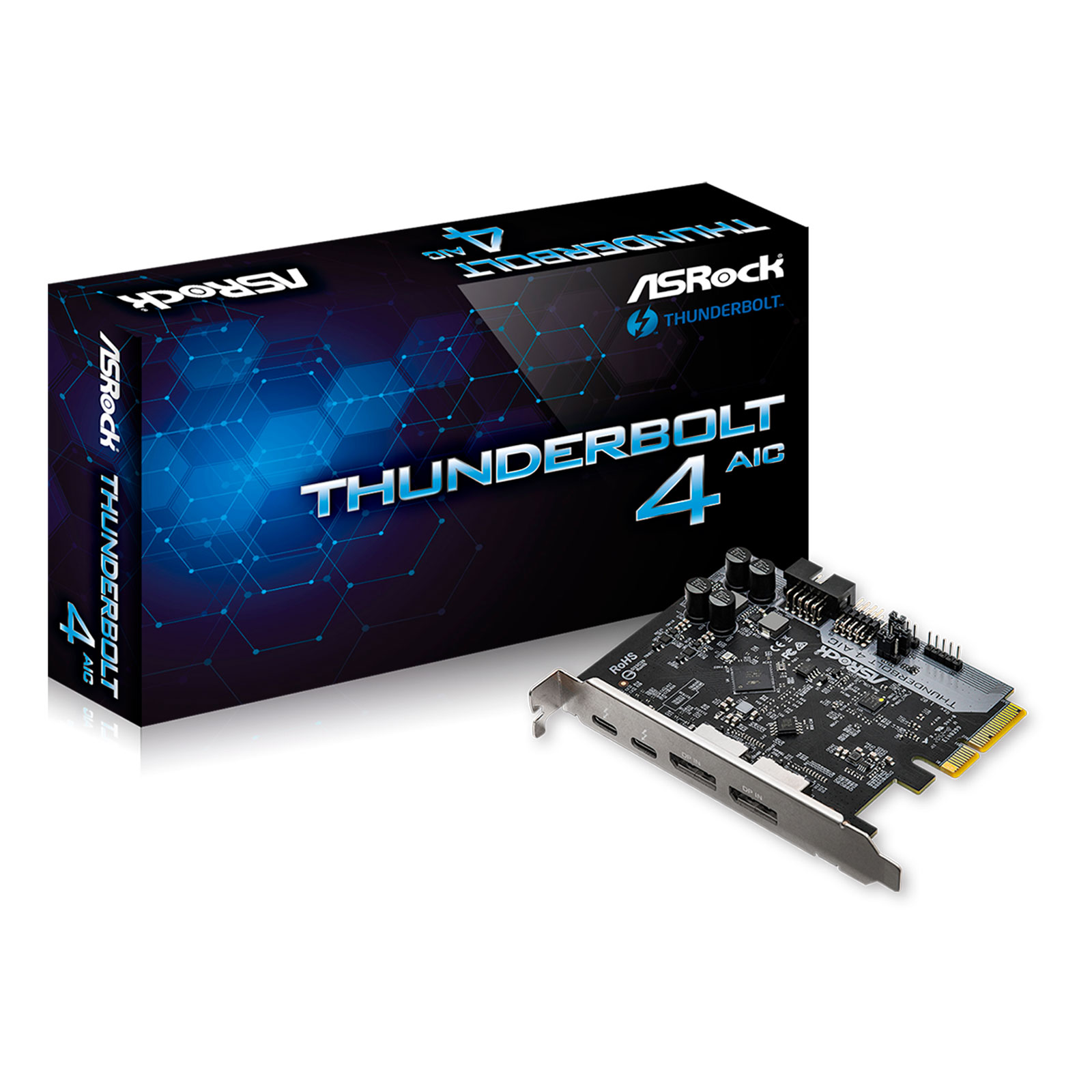

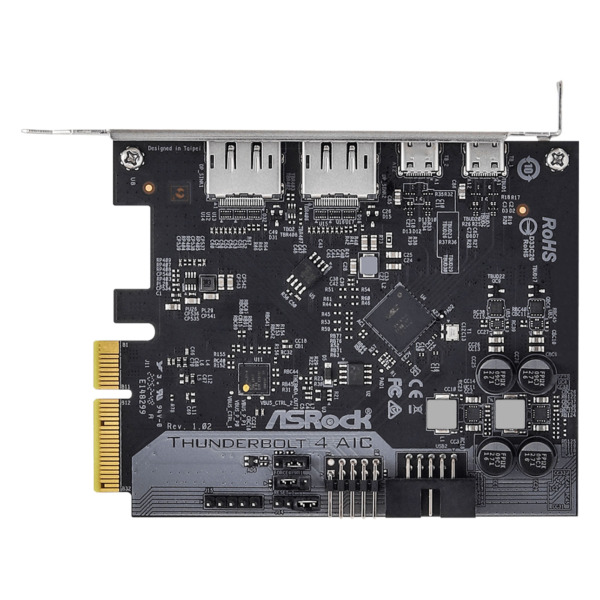

Asrock Thunderbolt 4 AIC PCI Express

Fastest Speed

High Definition

Power Delivery

Support with USB 4

Install your Thunderbolt 4 AIC in a few easy steps!

Step1. Align and install ASRock Thunderbolt 4 AIC into PCI-E 3.0 x4 slot on the motherboard.

Step2. Connect ASRock Thunderbolt 4 AIC to the onboard Thunderbolt header with TBT Header Cable.

Step3. Connect ASRock Thunderbolt 4 AIC to the onboard Thunderbolt header with USB 2.0 Cable.

Step4. Connect ASRock Thunderbolt 4 AIC with DisplayPort IN (A) and DisplayPort Port (B) by the supplied DisplayPort Cable.

• Platform
  – Dimensions: 3.3-in x 4.1-in
• Chipset
  – Intel^® JHL8540 Thunderbolt™ 4 Controller
  *
• External Connectors
  – 2 x Thunderbolt™ 4 Type-C Ports (with up to 40Gbps bandwidth)*
  – 1 x TBT Header
  – 2 x DisplayPort IN Ports
  – 1 x USB 2.0 Header
  *Supports daisy-chaining of up to five Thunderbolt™ devices
  Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging
  USB keyboard/mouse wake up is not supported.
• Interface
  – PCI Express 3.0 x4 interface
• Graphics
  – Supports Thunderbolt™ 4 interface with max. resolution of 5K (5120 x 2880)@ 60Hz for one display over a single cable connection
  – Supports Thunderbolt™ 4 interface with max. resolution of 4K x 2K (4096×2160)@ 60Hz for dual displays over a single cable connection
  – Supports up to two streams (eight lanes) of DisplayPort video bandwidth; supports daisy-chaining of multiple DisplayPort monitors
• Data Rate
  – Supports 40Gbps bi-directional bandwidth per channel with Thunderbolt™ 4 port
• OS
  – Microsoft^® Windows^® 10 64-bit / 11 64-bit
• Accessories
  – Quick Installation Guide, Support CD
  – 1 x TBT Header Cable
  – 2 x DisplayPort Cable
  – 1 x USB 2.0 Cable
