The integrated 2.5 Gbps Intel ® Ethernet connection offers a multitude of benefits,
including transferring files at full speed or gaming at low latency.

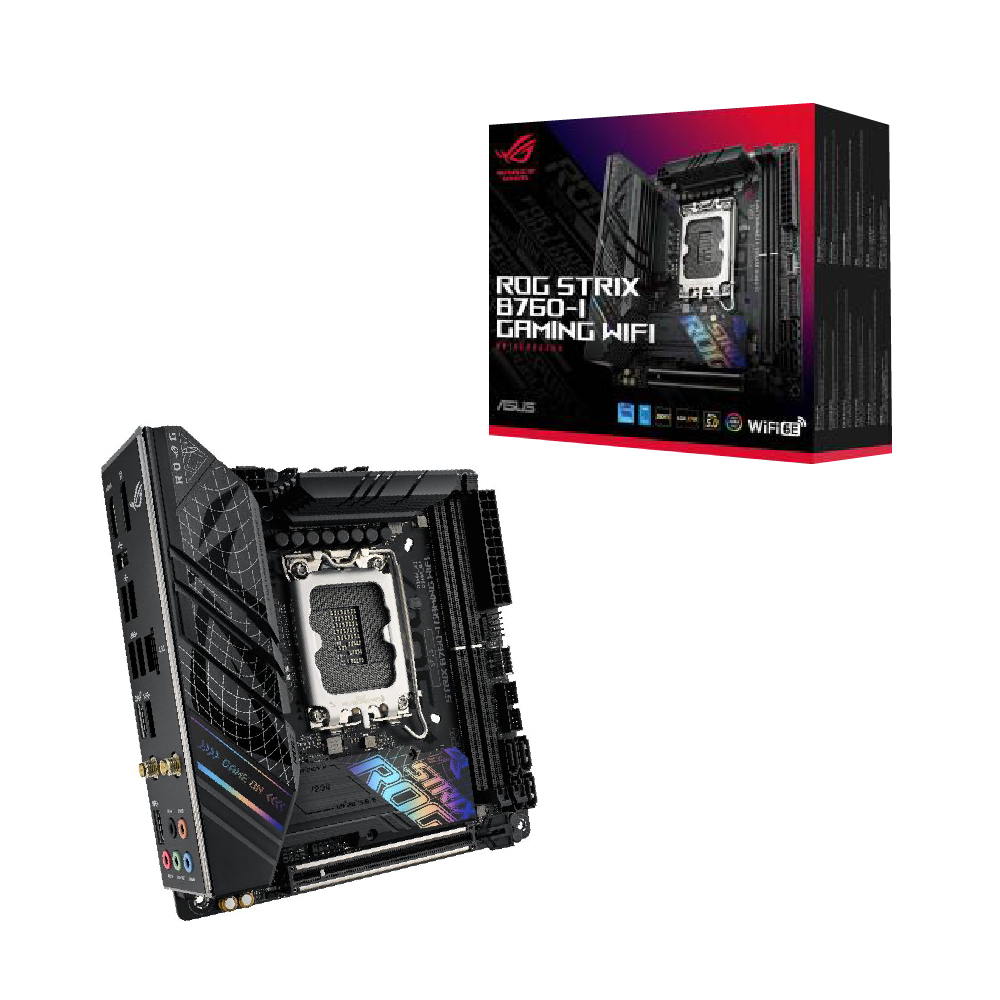

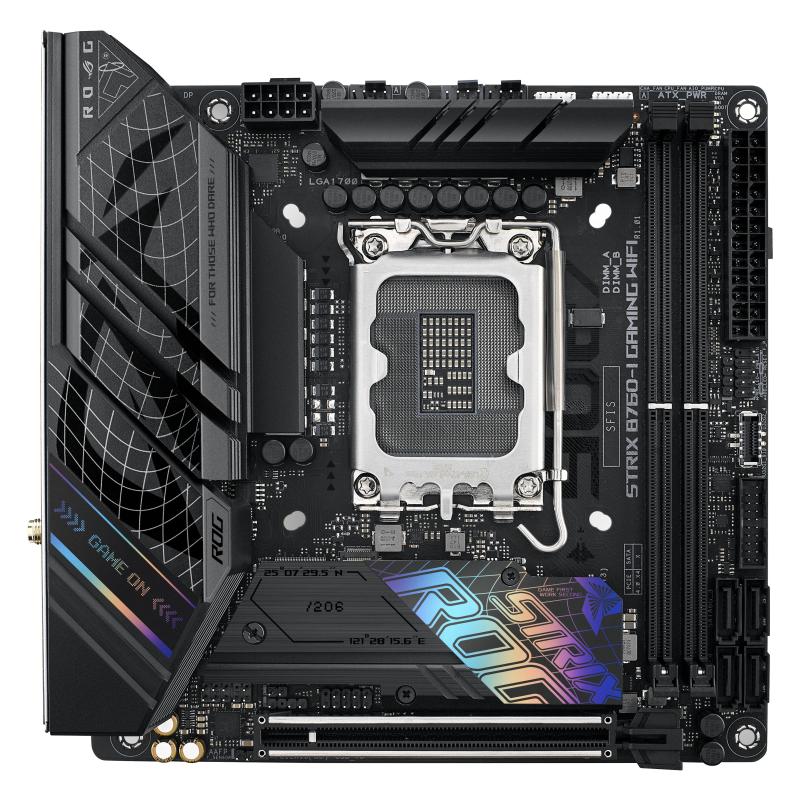

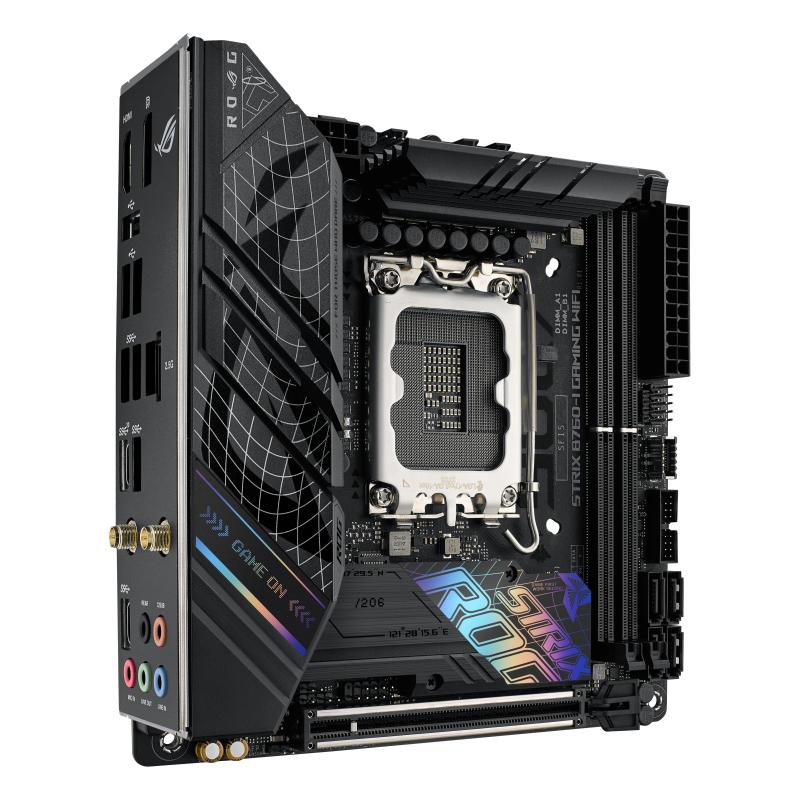

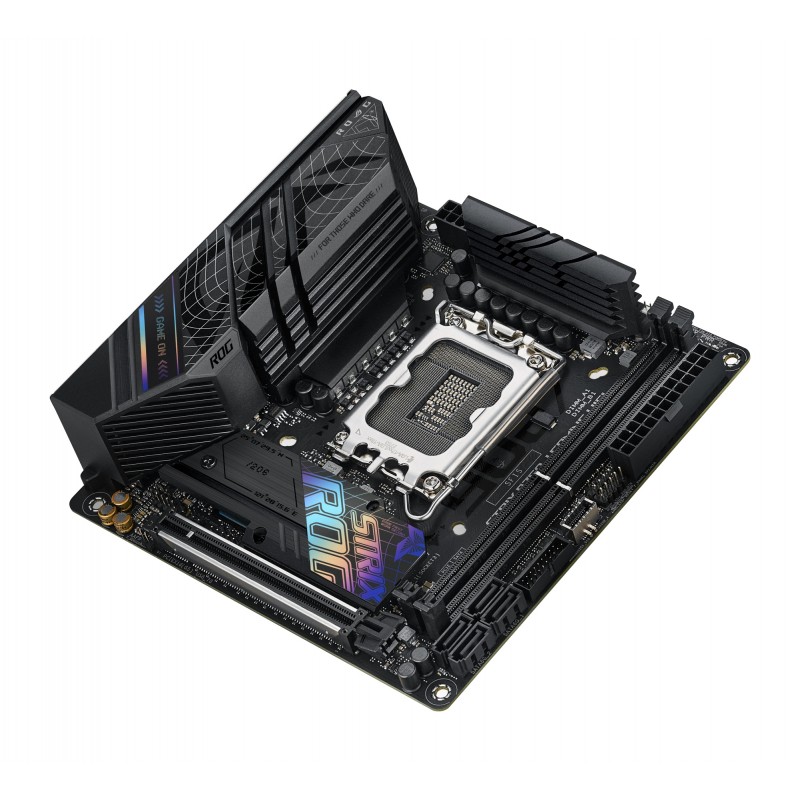

ASUS ROG B760-I STRIX GAMING WIFI
- Intel ® LGA 1700 Socket: Ready for 13th and 12th generation Intel ® Core ™ , Pentium ® Gold and Celeron ® processors .
- Robust Power Solution: 8+1+2 power phases rated at 80A, ProCool power connector, high quality alloy chokes and durable capacitors are leveraged to support the latest multi-core processors.
- Optimized VRM Thermals: Thick heatsinks bonded to the VRM with high-conductivity thermal pads, and the largest one integrated with the I/O cover for additional surface area.
- Extensive M.2 Support: Two PCIe 4.0 M.2 ports, one with a robust heat sink and the other strategically located on the back to save space.
- Next-generation networking: Integrated Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard.
- Abundant connectivity: USB 3.2 Gen 2×2 Type-C ® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 connector on the front panel, PCIe 5.0 x16 SafeSlot, HDMI ® 2.1 and DisplayPort ™ 4.
- Smart Control: ASUS-exclusive AI Networking and 2-way AI Noise Cancellation to simplify setup and improve performance.
- DIY Design: Pre-assembled I/O board, Q-Latch M.2 and Q-LED.
- Industry-leading gaming audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS ® Sound Unbound ™ and Sonic Studio III.
- Renowned Software: 60-day AIDA64 Extreme trial subscription included and intuitive UEFI BIOS panel with integrated MemTest86.
$236 exc. VAT
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 port.
The design uses a simple locking mechanism to secure the unit, eliminating the need for a traditional screw.
Q-LED
Four onboard LEDs indicate electrical status and identify issues with the CPU,
memory, graphics card, or boot device for faster diagnosis.

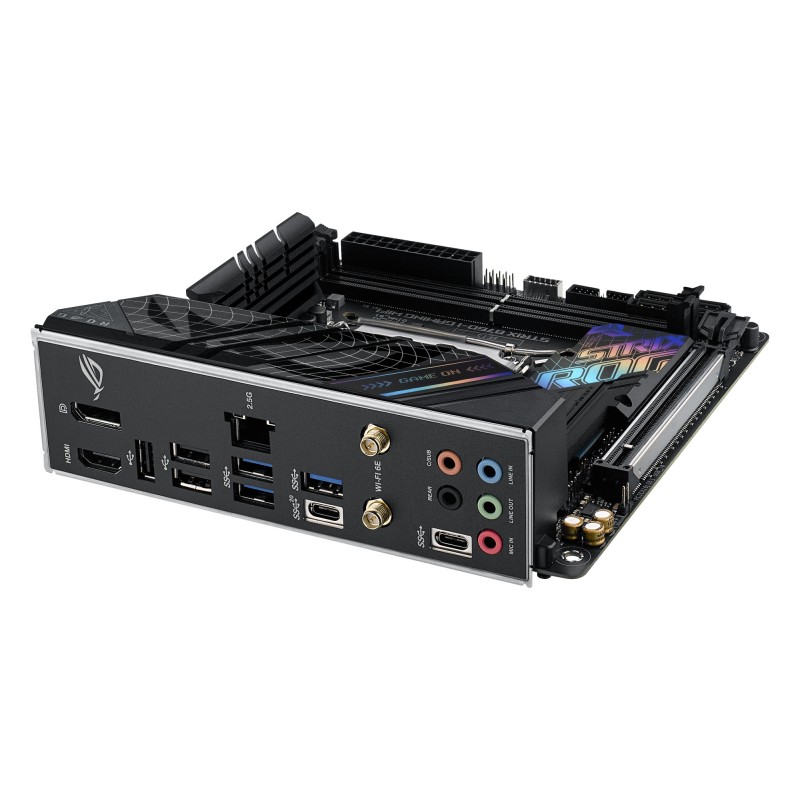

PRE-ASSEMBLED I/O COVER
ROG’s proprietary I/O shield has a sleek matte black finish and comes built-in,
further simplifying the motherboard installation process.
THE POWER OF DDR5
ROG has always flexed the performance of faster memory, and DDR5 is no exception.
Thanks to improved signal routing, more advanced kits have now surpassed the 7 GT/s mark on the Strix B760-I,
and who knows how far future DIMMs can go? Veteran users can test their mettle by experimenting with the wide range of UEFI tuning options.
PCIE PERFORMANCE
The x16 expansion port is ready for whatever comes with incredible PCIe 5.0 bandwidth.
Plus, it’s protected with a SafeSlot retention bracket to handle most of the latest graphics cards.

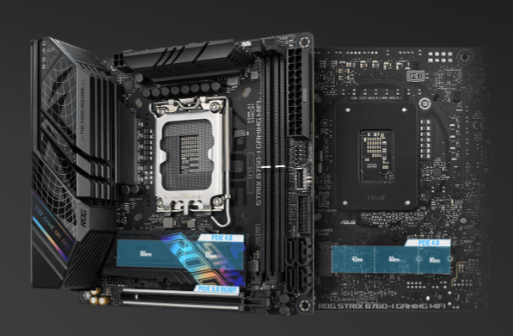

Take advantage of fast storage courtesy of the pair of M.2 PCIe 4.0 ports,
one under the front heatsink and the other on the back to save space.

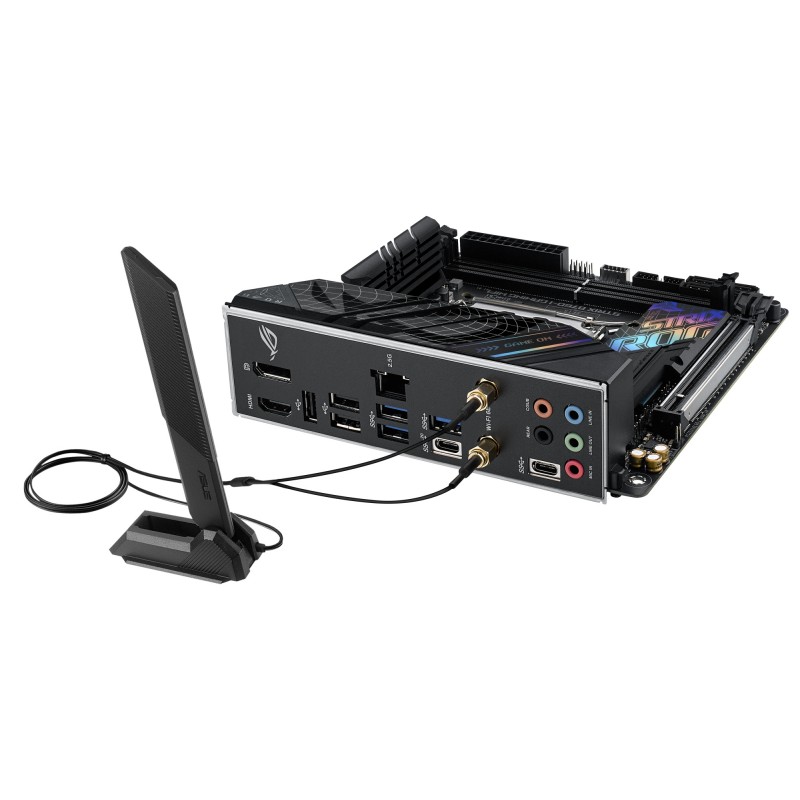

WIFI 6E
Integrated WiFi 6E technology takes advantage of the new spectrum available in
the 6 GHz band to offer up to seven 160 MHz channels. All to provide you with ultra-fast
performance and better performance in dense wireless environments.
*WiFi 6E availability and features depend on regulatory limitations and coexistence with 5GHz WiFi.
Ethernet Intel the 2.5 Gb
REFRIGERATOR COMPATIBILITY
The ROG Strix B760-I carries the same LGA 1700 socket as the Z690 and B660 models,
so many existing heatsinks are compatible, including all of the all-in-one offerings from ASUS and ROG.
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics
1 x DisplayPort**
1 x HDMI®***
1 x HDMI®***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
1 x PCIe 5.0 x16 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
