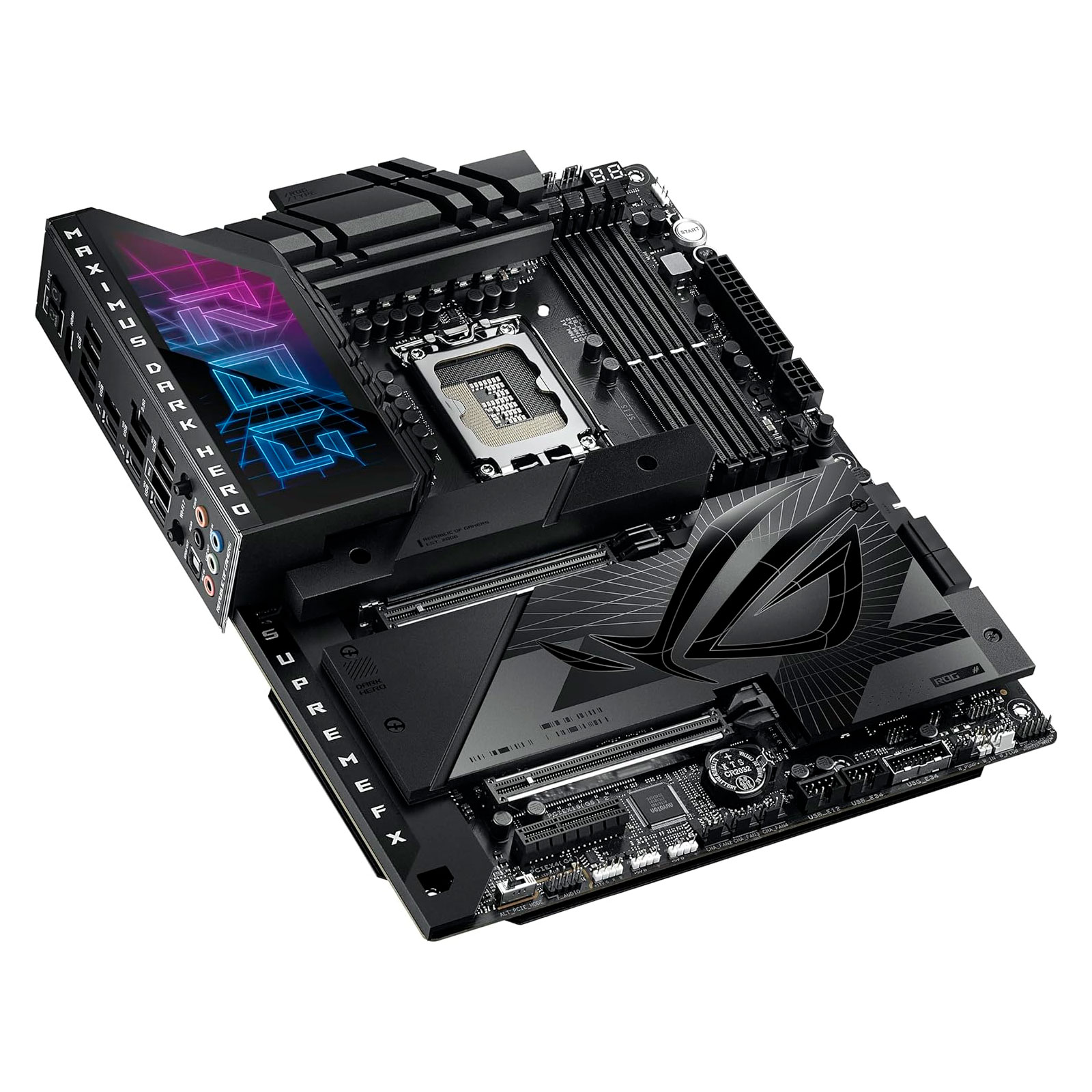

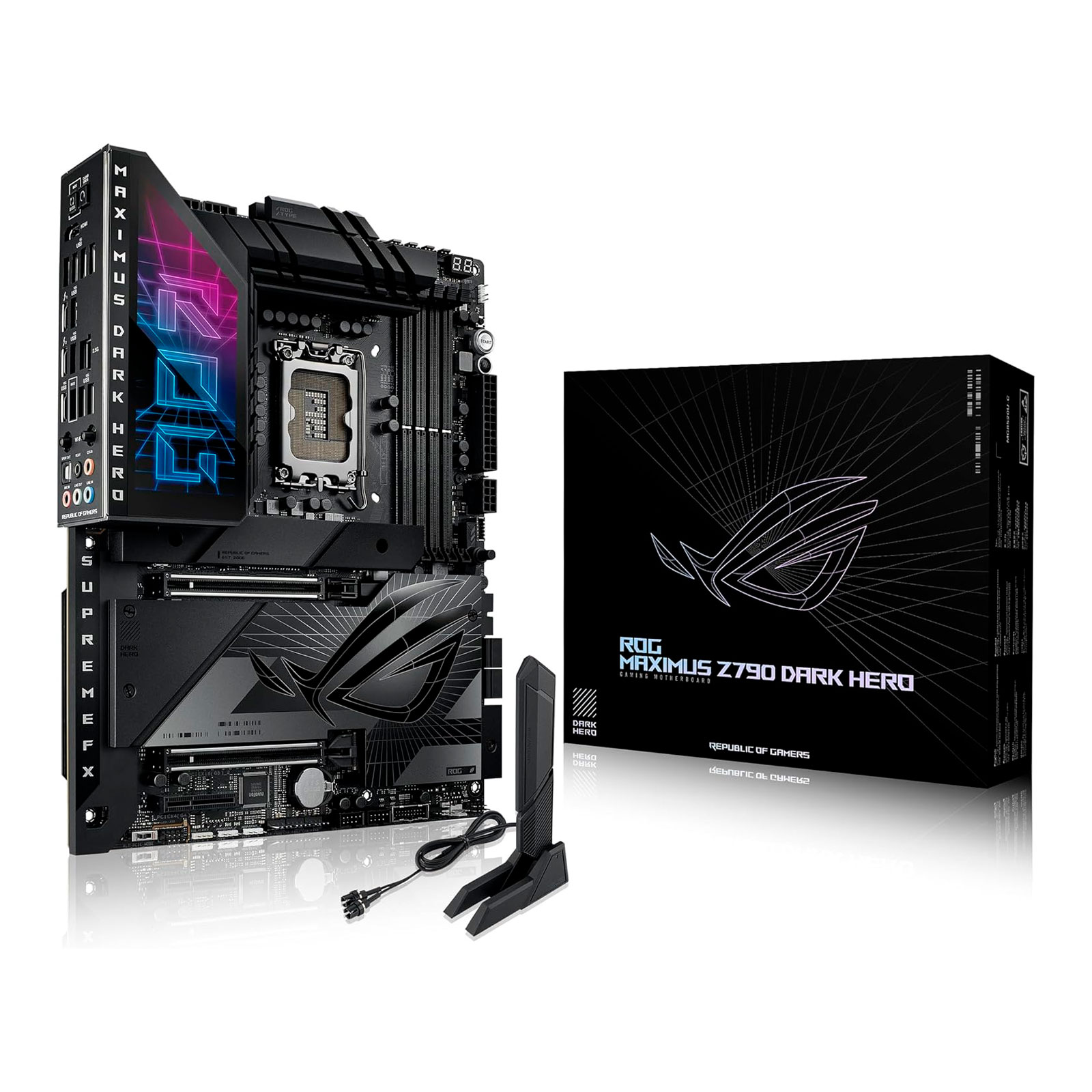

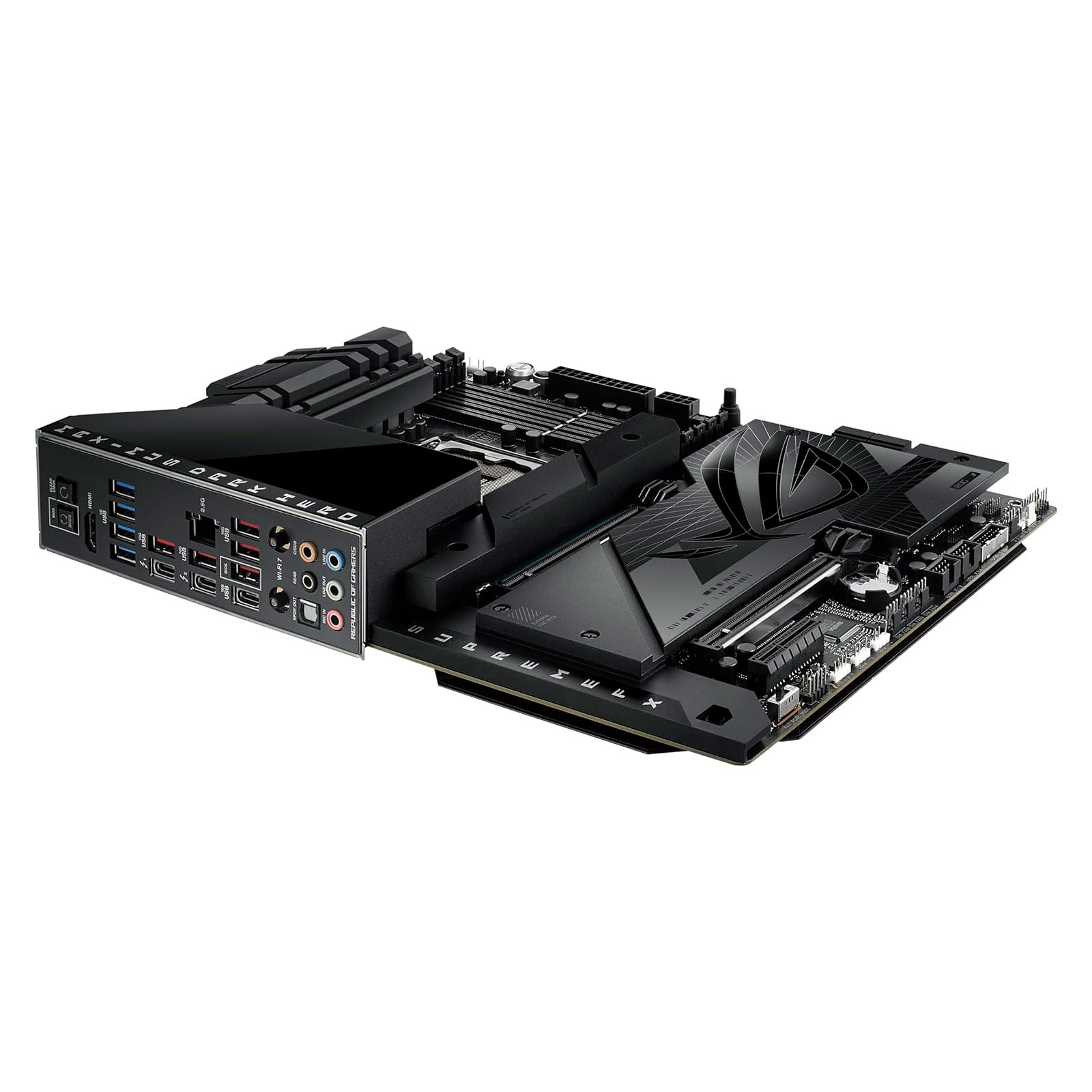

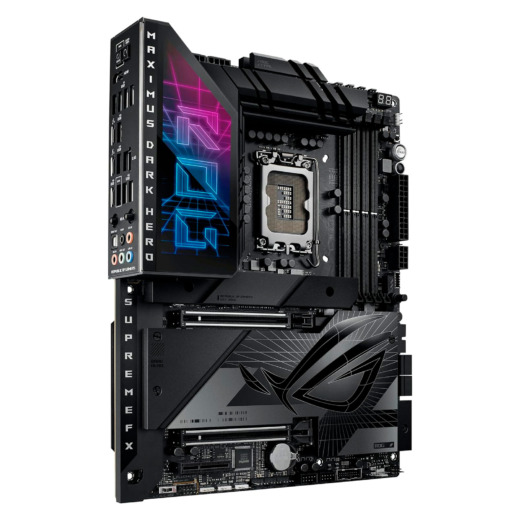

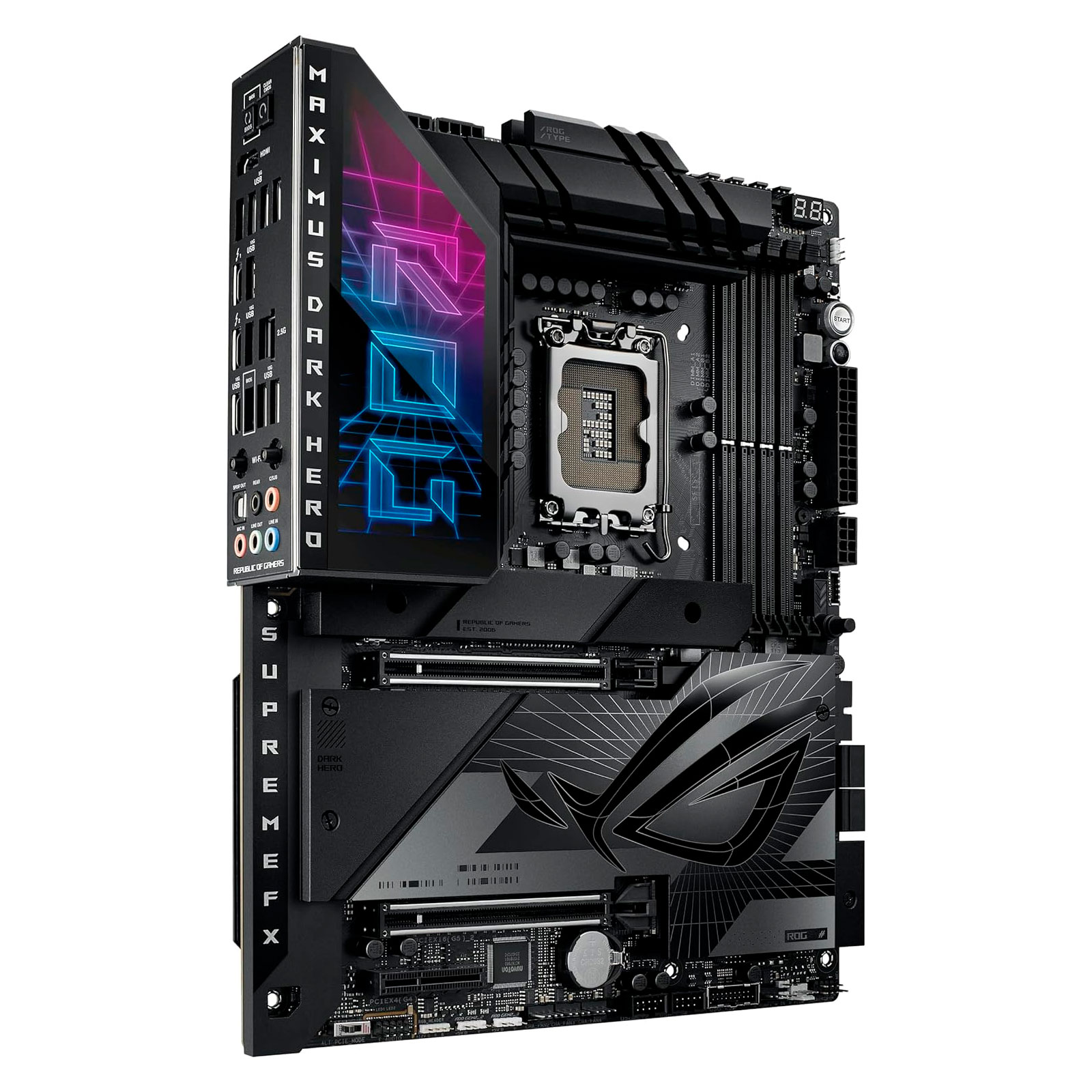

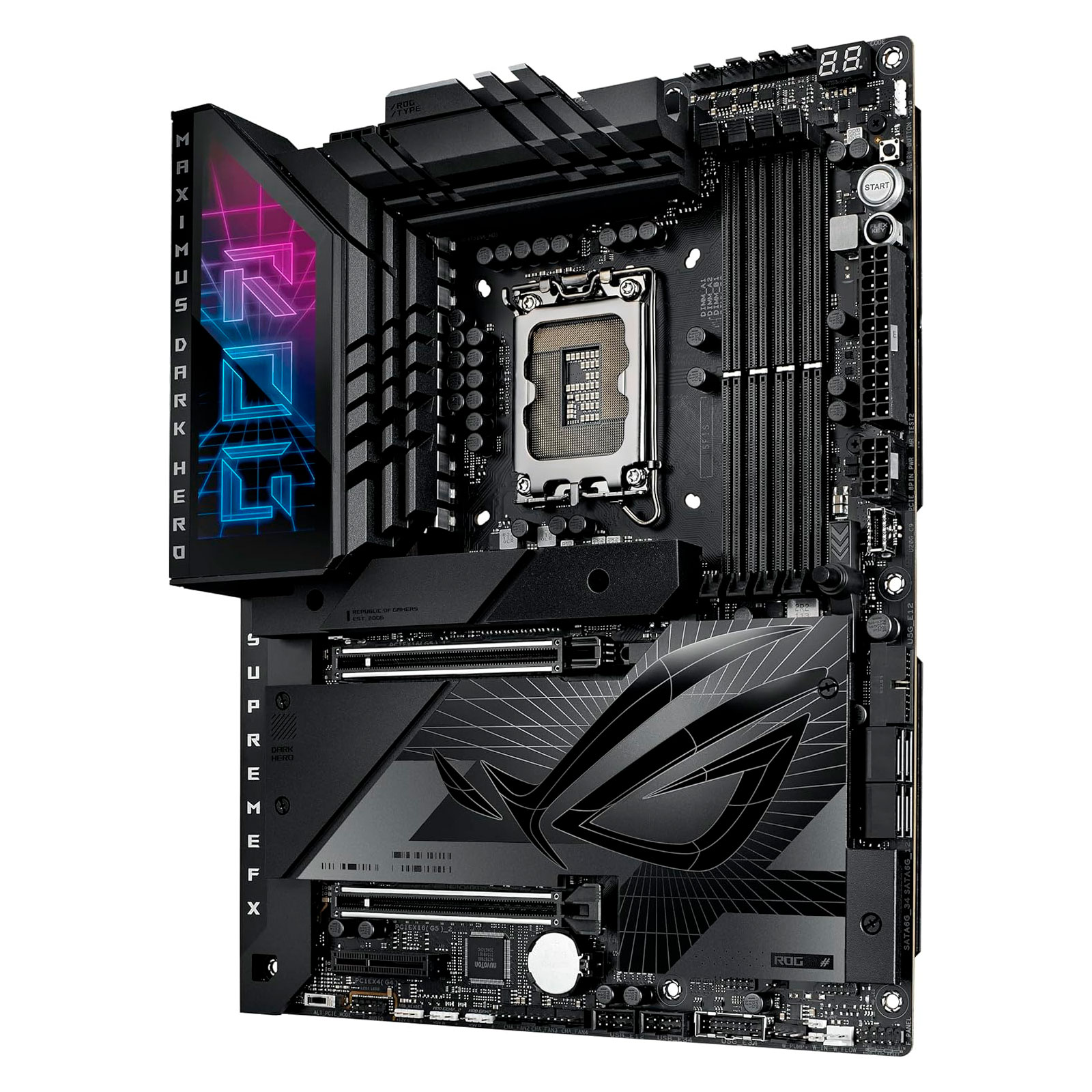

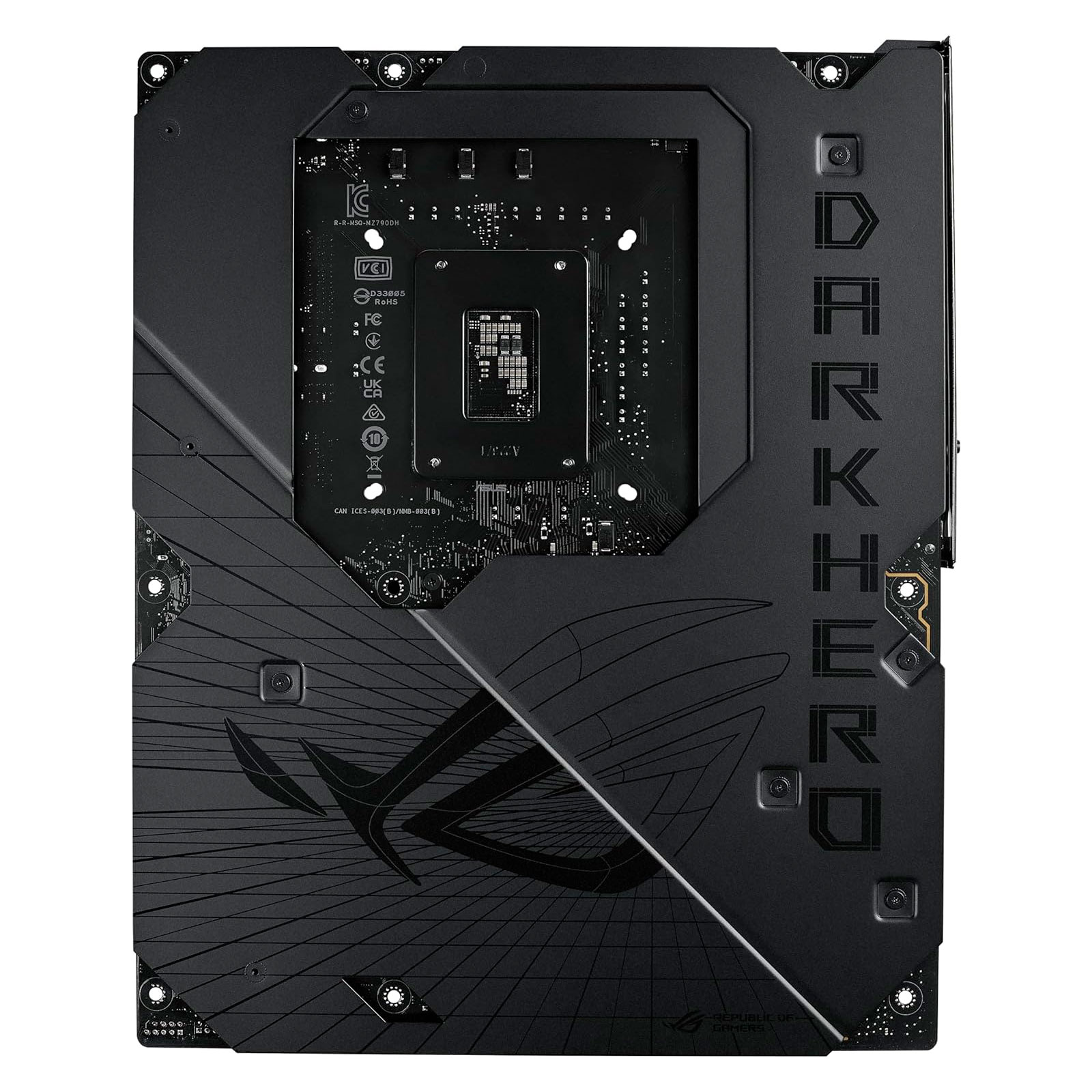

ASUS ROG MAXIMUS Z790 DARK HERO WIFI 7
- Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Robust Power Solution: 20+1+2 power stages with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
- Optimized VRM Thermals: Massive heatsinks integrated with the I/O cover, joined by an L-shaped heatpipe, and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Onboard PCIe® 5.0 M.2 slot, and four PCIe® 4.0 M.2 slots all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C® front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, six additional USB 10Gbps ports, two PCIe 5.0 x16 SafeSlots, HDMI™ 2.1
- High-Performance Networking: On-board Intel® Wi-Fi 7 (802.11be) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking,Two-Way AI Noise Cancelation, AEMP II, and DIMM Flex to simplify setup and improve performance
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9218 Quad DAC for up to 32-Bit/384 kHz playback
- Unmatched Personalization: I/O cover with Polymo Lighting, three addressable Gen 2 headers and one RGB header, all configurable with ASUS-exclusive Aura Sync RGB lighting
- DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button
- Renowned Software: Bundled 9-month Intel® Unison™ subscription, bundled 1-year AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
$619 exc. VAT
Out of stock
ROG OVERCLOCKING TECHNOLOGIES
Psyche up and engage the Dark Hero overclocker in you, with onboard intelligence to scan,
predict, and adapt CPU performance parameters, and tools to command and track system vitals.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles
the CPU and cooling to predict the optimal configuration and push the system to its limits.
Predicted values can be engaged automatically or used as a launching ground for further experimentation.
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal,
leading to a large disparity between the actual voltage fed to the CPU and the value reported to software.
The ROG Maximus Z790 Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking
and tuning by allowing you to track voltages more accurately.
DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier.
Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 8 GT/s
mark on the Maximus Z790 Dark Hero, and who knows how far future DIMMs can go?
Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.
COOLER COMPATIBILITY
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics
and customizable functionality for new Z790 motherboards, empowering you to build your dream gaming rig.
ASUS WIFI Q-ANTENNA
Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput,
with directional sensitivity to improve signal quality and cover greater distances.
Wireless Signal Reception Improvement
Versus previous-generation antenna
CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Memory
8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
Supports DIMM Flex
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
** Support 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors’ or graphic cards’ resolution.
Expansion Slots
2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
Intel® Z790 Chipset
1 x PCIe 4.0 x4 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Storage
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled and PCIEX16(G5)_1 will run x8 only.
Ethernet
ASUS LANGuard
Wireless & Bluetooth
2×2 Wi-Fi 7 (802.11be)**
Supports 2.4/5/6GHz frequency band***
Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate.
Bluetooth® v5.4****
* Compatible with Windows 11 or later.
** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later.
*** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
**** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– ESS® ES9218 QUAD DAC
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
*The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
