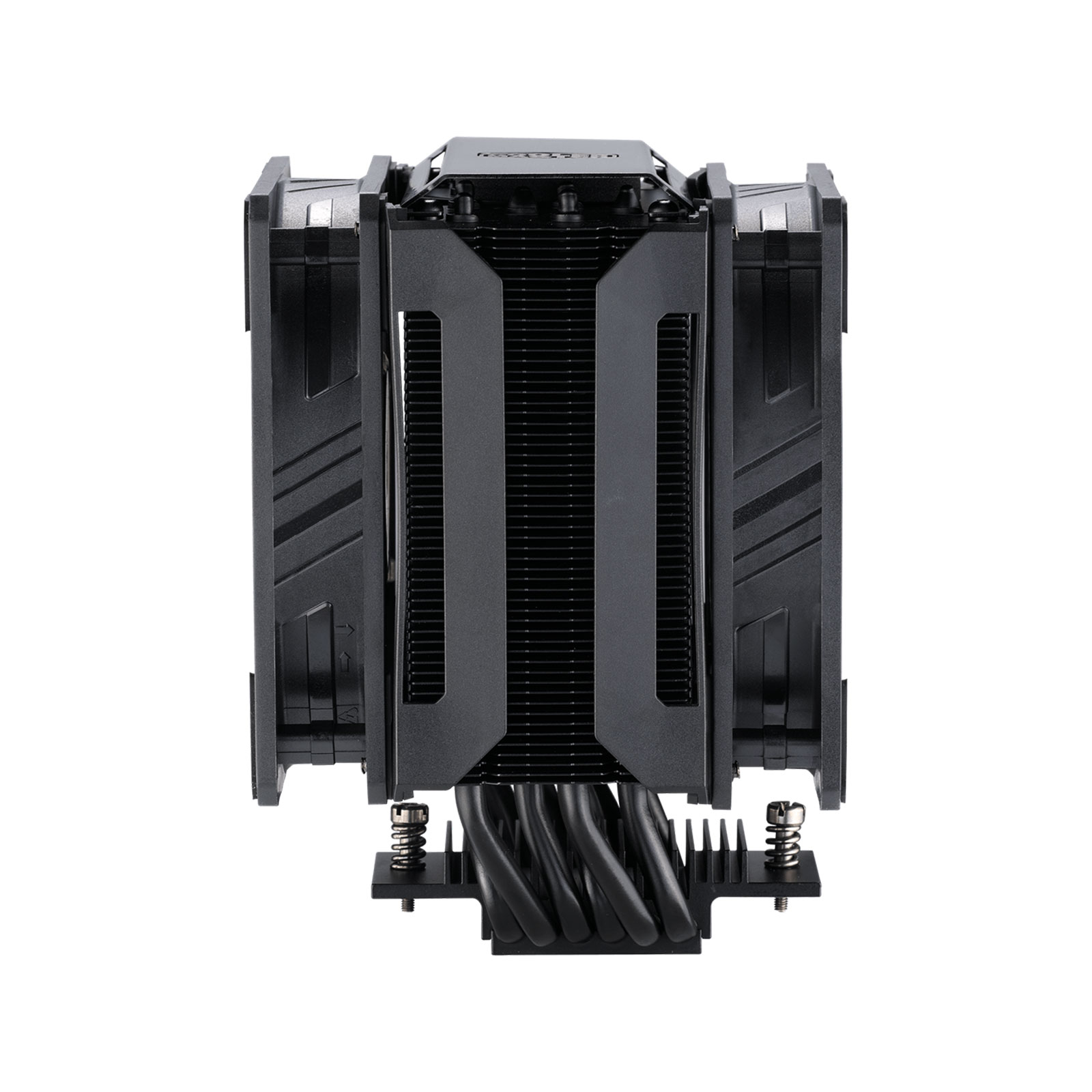

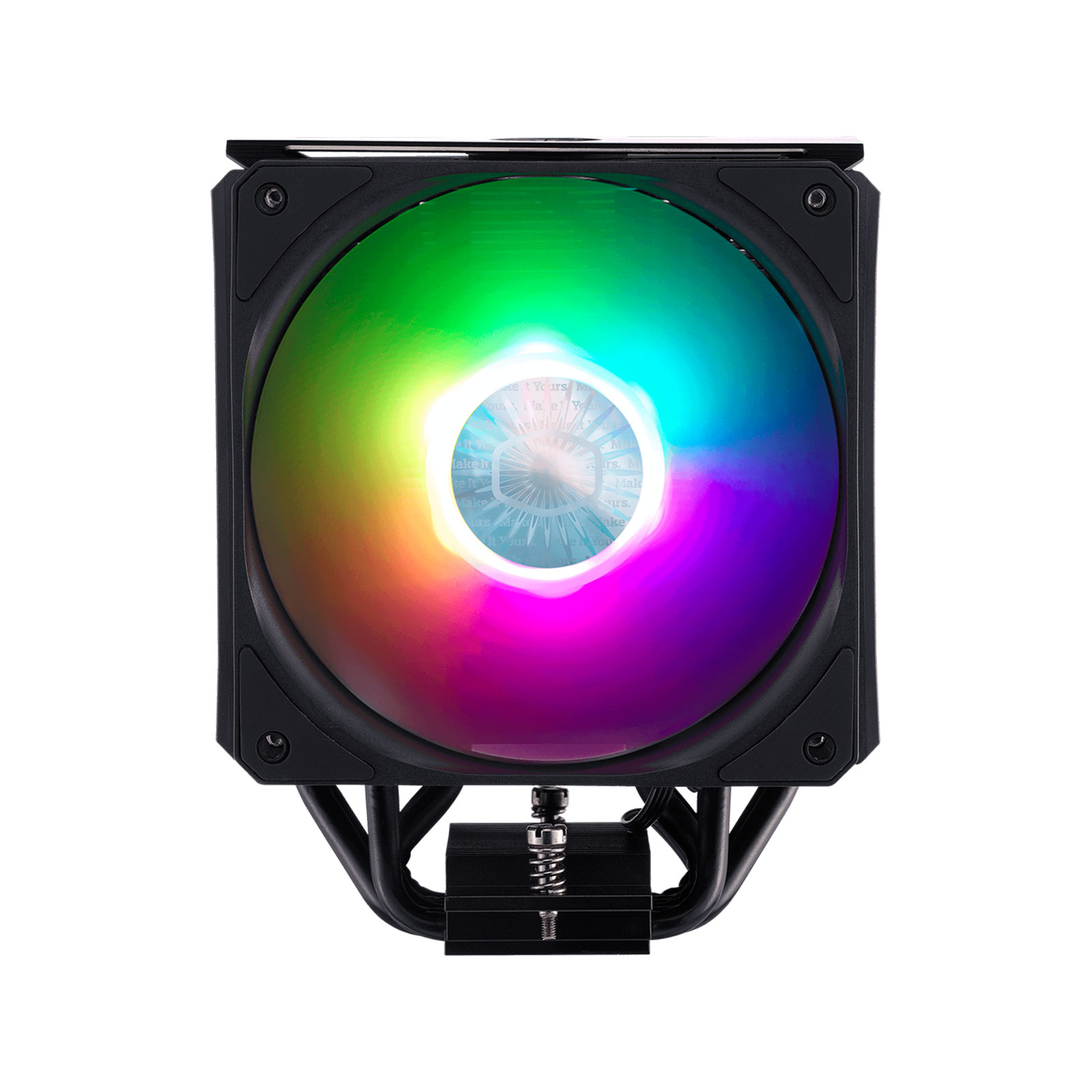

6 HEAT PIPES ARRAY
6 heat pipes with precision fin distribution for enhanced cooling efficiency and exceptional heat removal

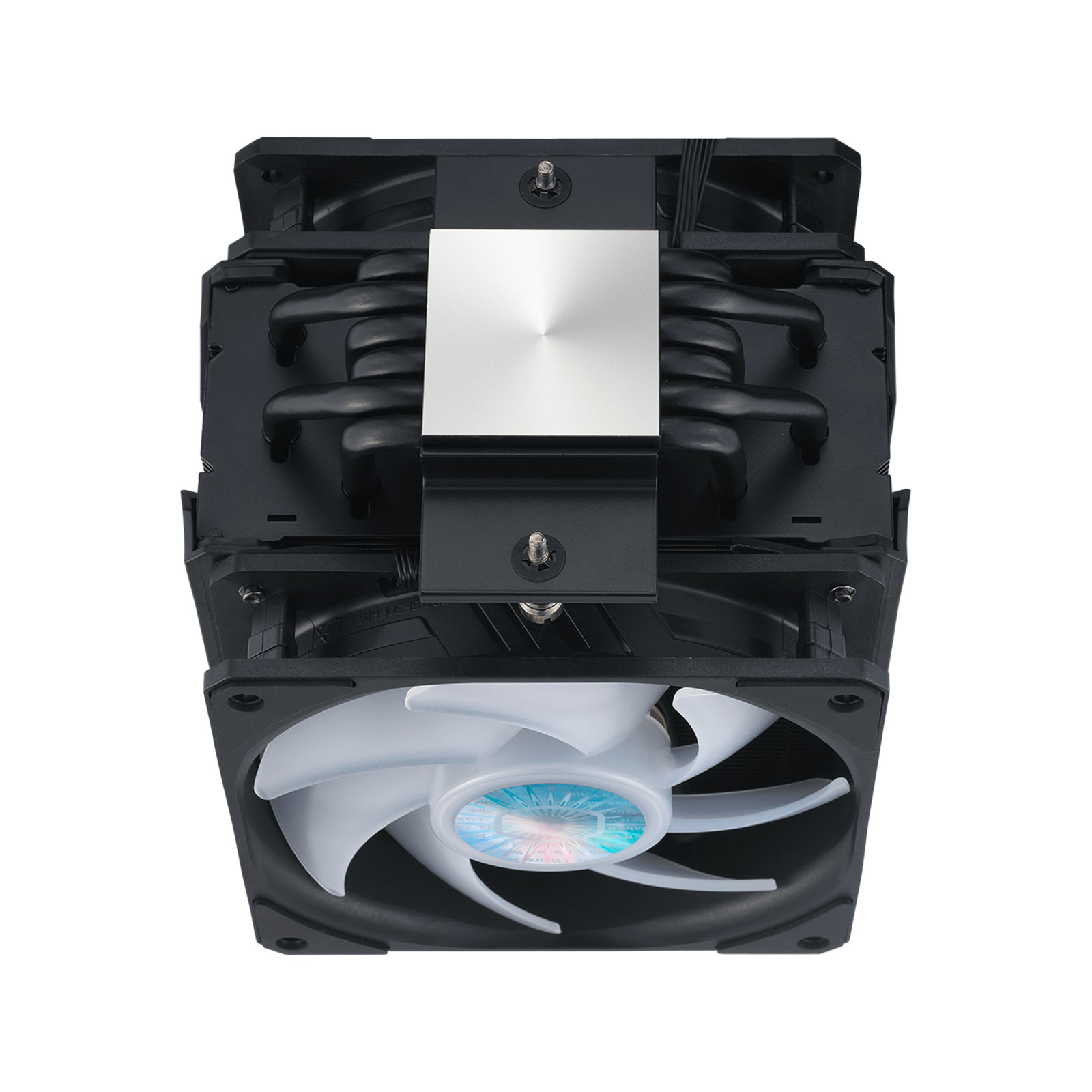

NICKEL PLATED COPPER BASE
Nickel plated copper base provides maximum coverage for optimal cooling
100% RAM CLEARANCE
Asymmetrical 6 heat pipes array assures RAM compatibility and clearance across various motherboards

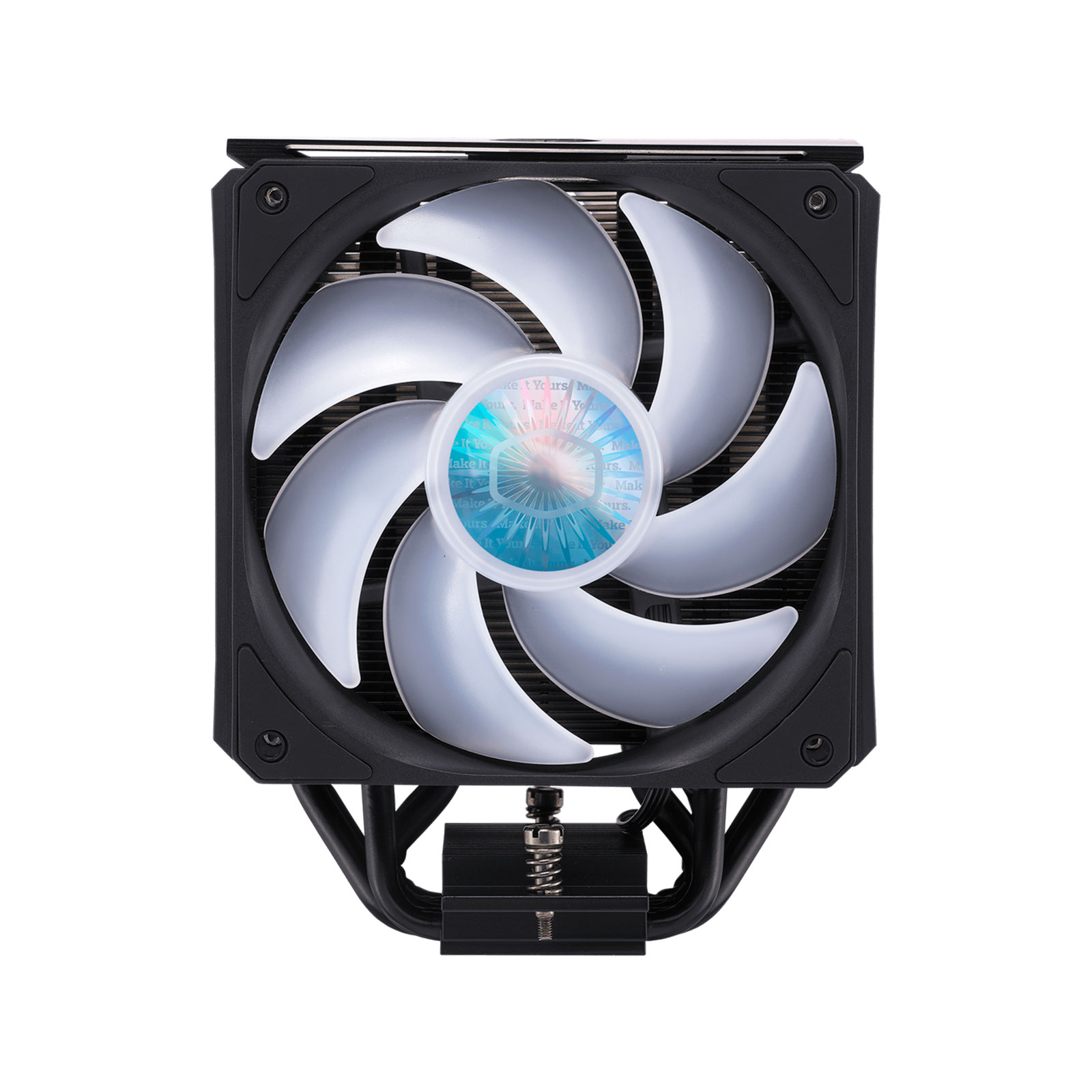

EXPLOSIVE COOLING PERFORMANCE
Featuring Cooler Master’s SickleFlow fan, redesigned blades deliver efficient airflow and pressure for superior Push-Pull performance.

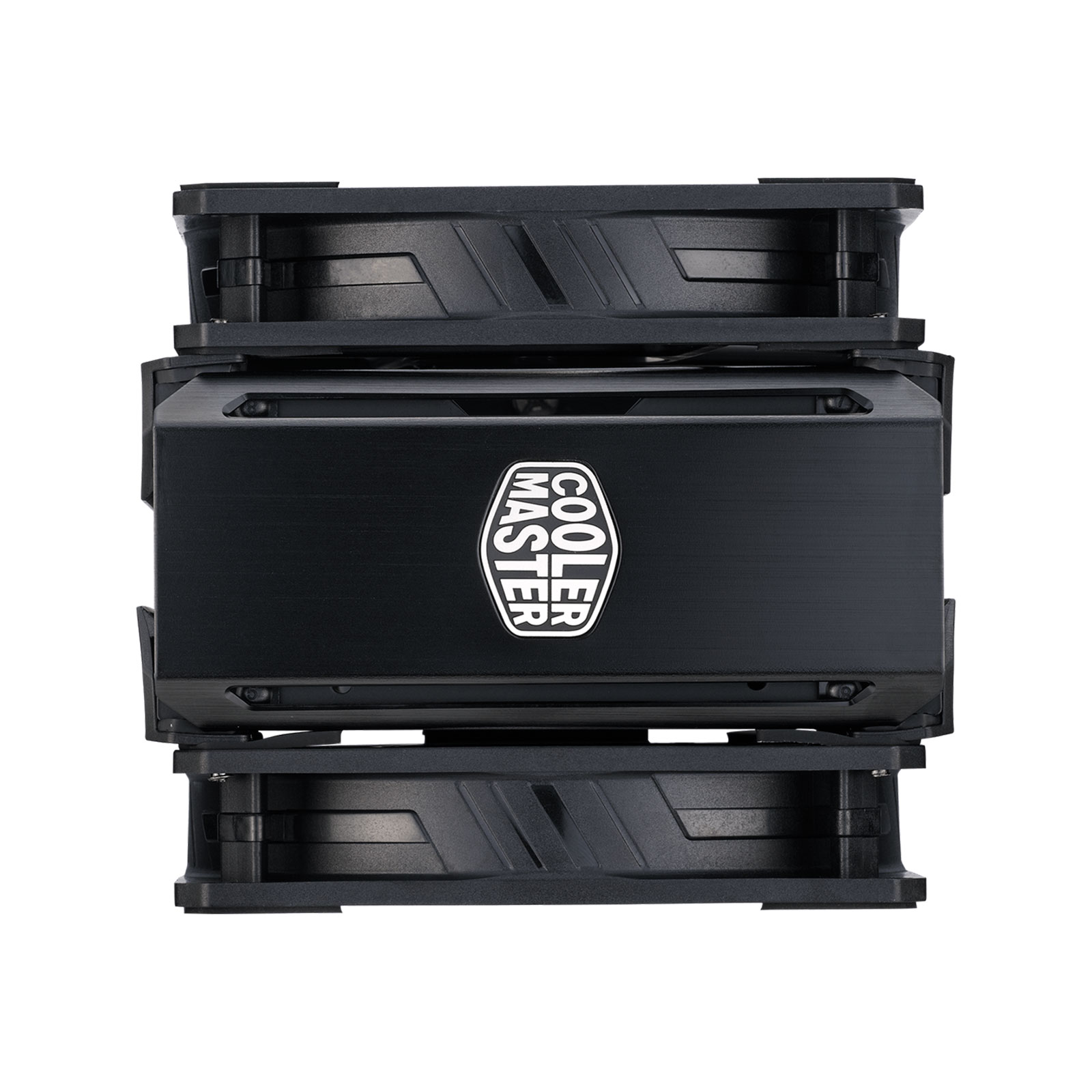

STEALTH BLACK HARDWARE
Stealth black aluminum top cover with all-black hardware throughout for a premium finish.
Exterior Color Black
CPU Socket LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1156, LGA1155, LGA1151, LGA1150, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Dimensions (L x W x H) 129 x 112.2 x 158 mm / 5 x 4.4 x 6.2 inch
Heat Sink Material 6 Heat Pipes, Aluminum Fins
Fan Dimensions (L x W x H) 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
Fan Quantity 2 PCS
Fan Speed 650-1800 RPM (PWM) ± 5%
Fan Airflow 62 CFM (Max)
Fan Noise Level 8 – 27 dBA
Fan Air Pressure 2.5 mmH₂O
Fan MTTF 160,000 Hours
Fan Power Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.15A
Fan Safety Current 0.37A
Fan Power Consumption 1.8W
Heatpipes 6
Series MasterAir
Cooler Type Air Cooler
