CTE E600 MX White Mid Tower Chassis

Where Flexibility Meets Performance

For our CTE E600 MX we wanted to provide as many options as possible to build your system the way you want.
Built with features such as three different GPU mounting points, two interchangeable front panels,
and dual chambers for maximum flexibility. On the cooling side the E600 MX is able to support up to 420mm AIO
radiators on the front, rear, and side mounts as well as up to fourteen 120mm fans or twelve 140mm fans. (400mm riser cable included)

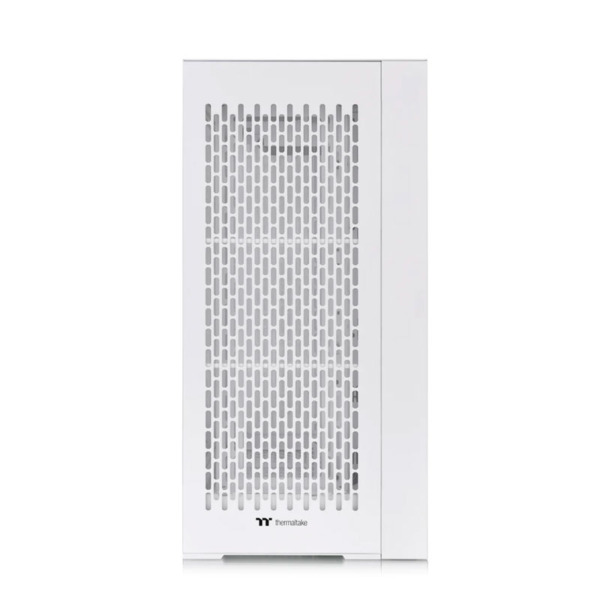

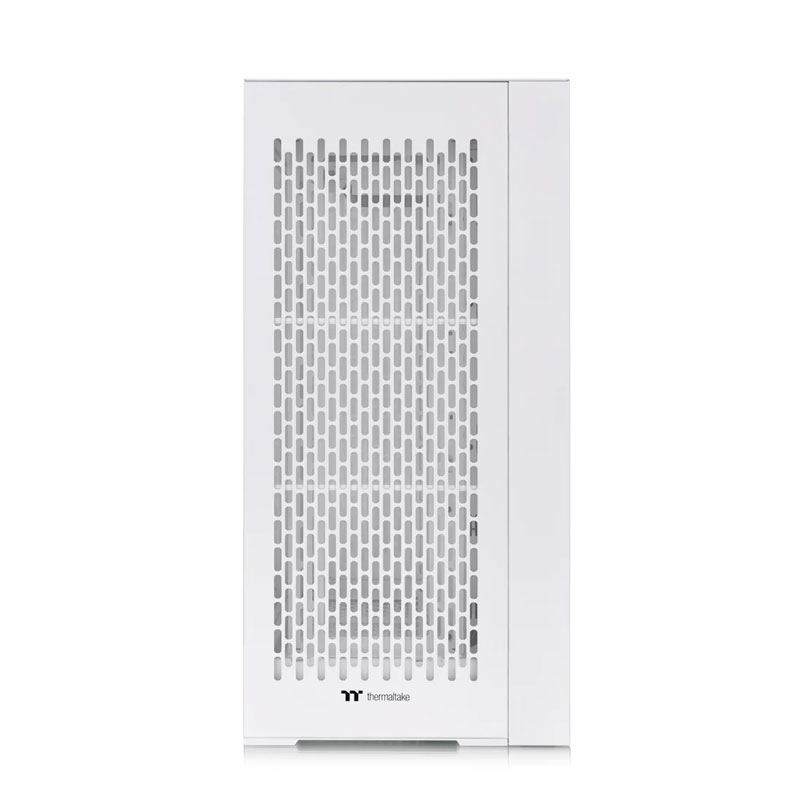

Dual Interchangeable Front Panels

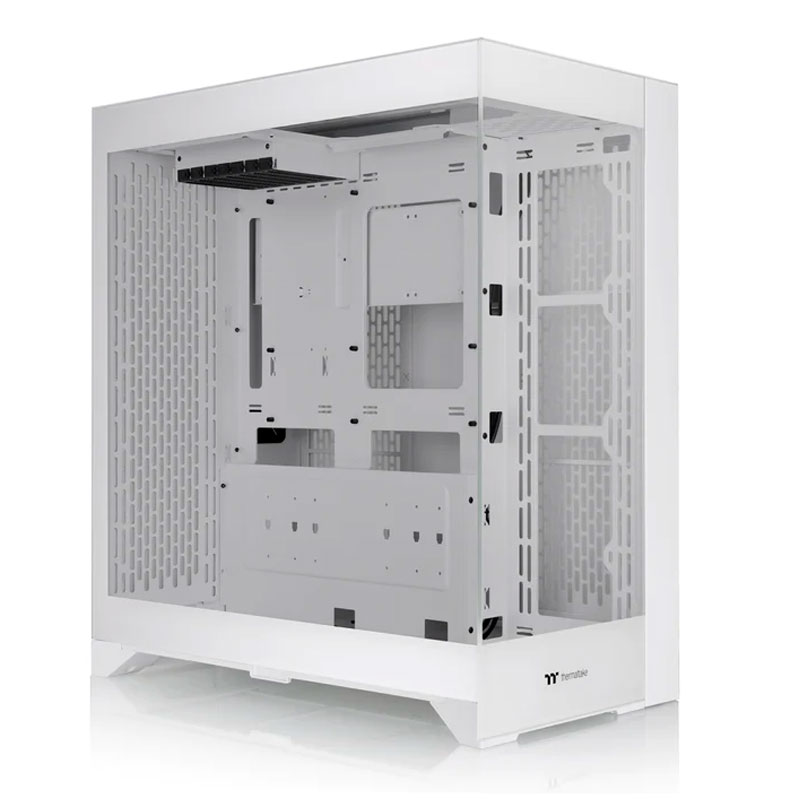

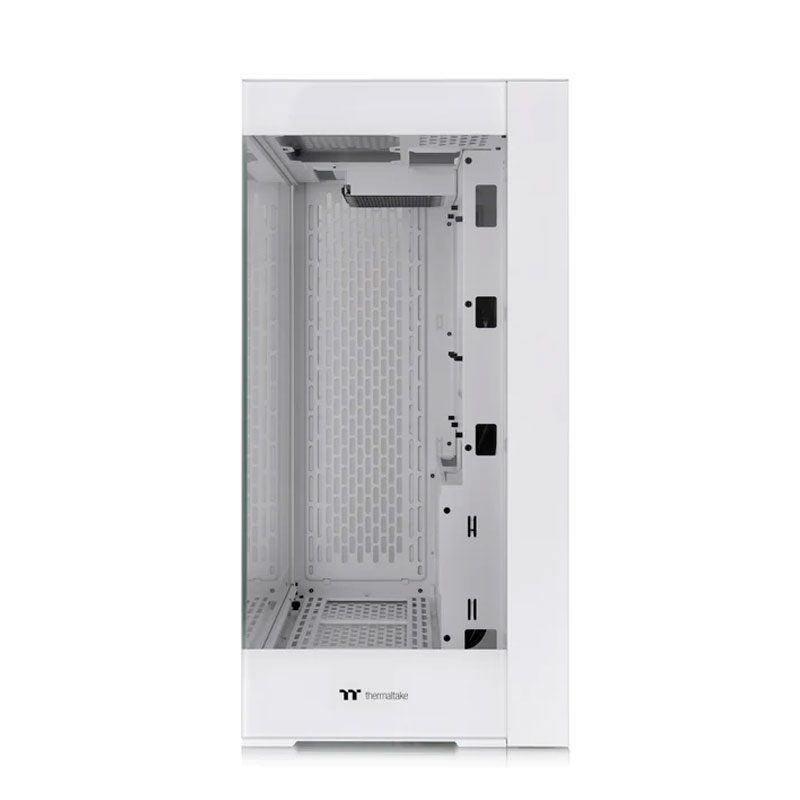

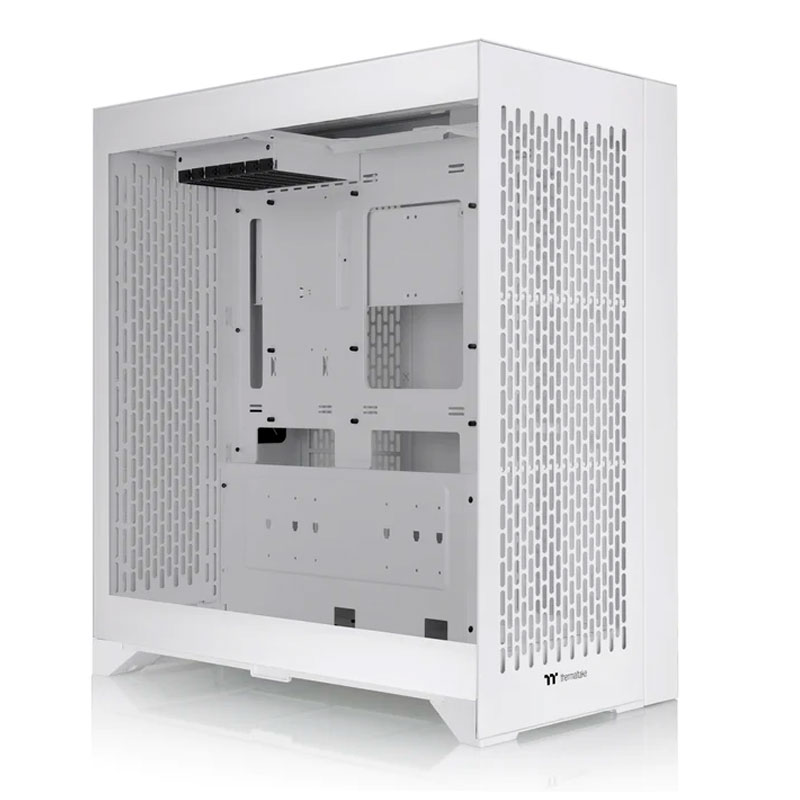

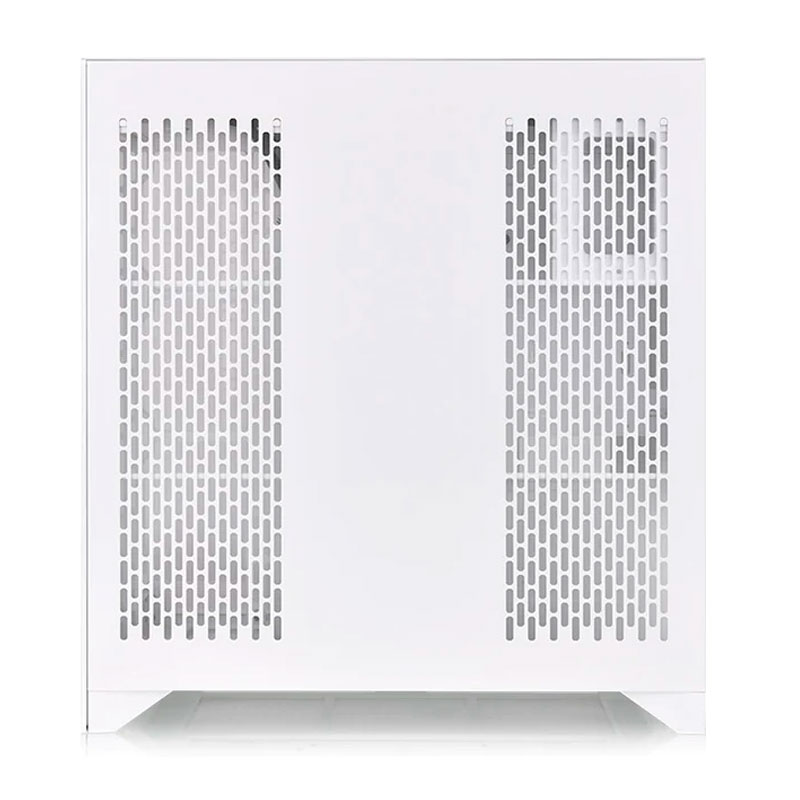

Included with the CTE E600 MX, are one Tempered Glass panel to match the side panel
and provide a panoramic view as well as a perforated panel for configurations that want as much airflow as possible.
Accenting the interchangeable front panels is a fan tray capable of accepting up to 420mm AIO radiators
and 360mm Distro Plates, as well as being fully removable for an open clean view into the chassis.

Display It Your Way: Three-way GPU Installation

There are three different ways to mount your GPU:

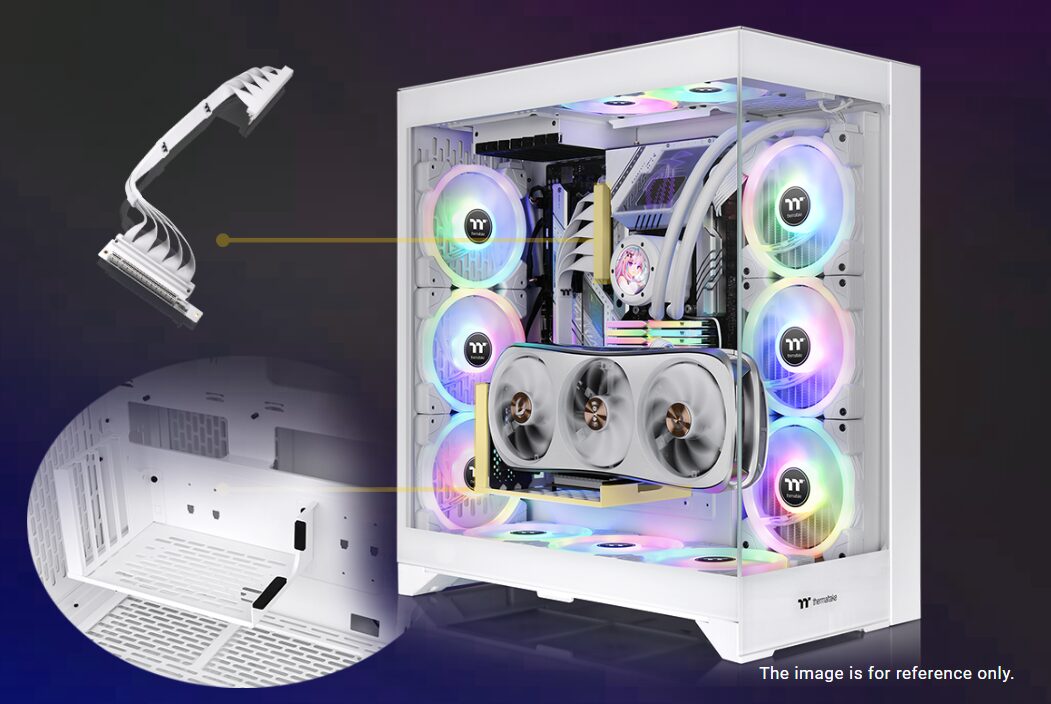

1. Floating GPU: Placing the GPU in the middle of the chassis by using the enclosed floating GPU bracket and pre-configured 400mm long PCI-e 4.0 riser cable
2. Up Right: Hanging the GPU vertically
3. Up Right Forward: Placing it up-right with the graphics card facing forward to the side panel on the rotational PCI-e slots

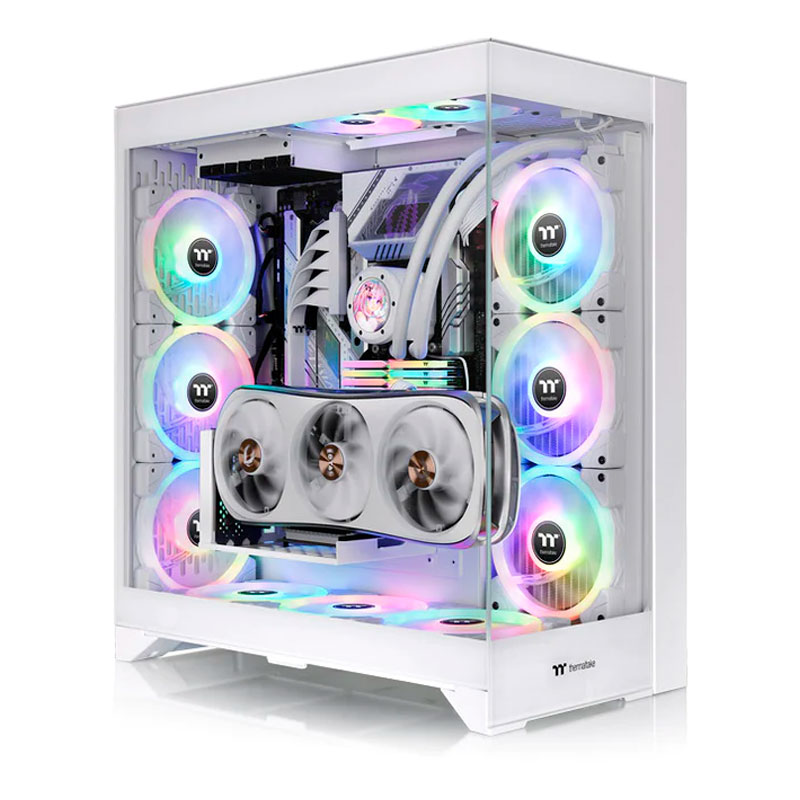

Floating GPU

Up Right

Up Right Forward

PCI-e 4.0 Riser Cable Included (400mm)

The CTE E600 MX Snow comes with a 400mm PCI-e 4.0 Riser Cable to make best use of the three different GPU mounting options.
Offering up to 16GT/s and supporting up to 64 GB/s (bi-directional) data transmission,
the E600 MX Snow is ready for the most demanding of GPUs.
Did we also mention the floating bracket also has three separate mounting points, so your GPUs is always centered.

Maximum Radiator Support

The CTE E600 MX offers multiple mounting locations and plenty of room to create your own configurations.
DIY radiators up to 420mm in length can be installed on the front, rear, bottom and M/B side, and for AIO compatibility,
up to 420mm/360mm radiators can be installed on the front, rear and M/B side,
giving PC enthusiasts plenty of flexibility to create their ideal setup.

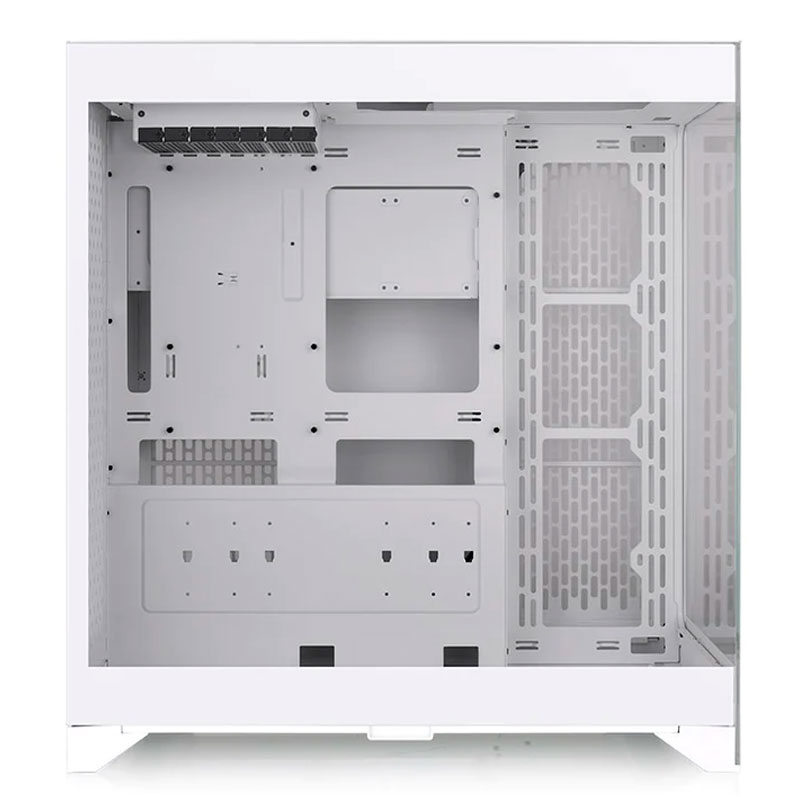

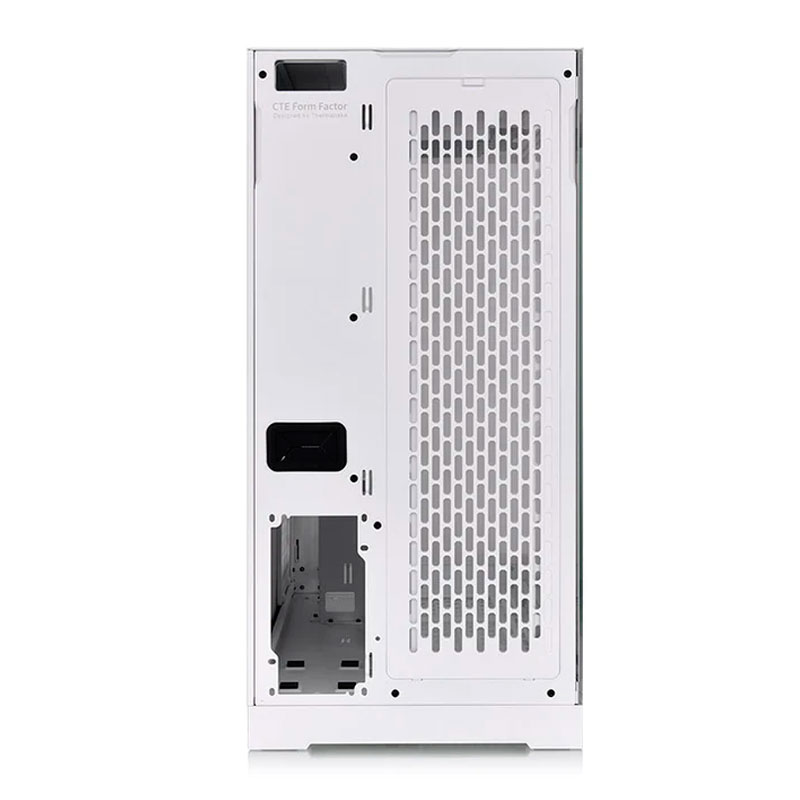

CTE Form Factor

The focus for CTE (Centralized Thermal Efficiency) was to provide a high level of thermal performance
by altering our approach to traditional case design. The result was a design that utilizes a 90-degree
rotated motherboard tray to provide not only more airflow pathways but also more efficient airflow pathways.

With the new fan trays being able to accept up to three 140mm or 120mm fans as well as up to a 420mm
AIO Radiator the CTE chassis provides lots of options whether you choose Air, AIO, or DIY Liquid Cooling for your build.
Since the motherboard tray has been rotated, direct intake airflow from each of the motherboard trays can more efficiently
be directed toward components like the CPU and GPU and then exhausted with the assistance of natural convection.

Dual Chamber Storage

In the right chamber of CTE E600 MX, you can put on up to two 3.5”
hard drives in the HDD Cage and two 2.5” drives on the Drive Plate.

Drive Plate:

2.5” SSD x 2

HDD Cage:

3.5” HDD x 2

Perfect Dust Protection

Fine mesh removable filters are located at the top, front, bottom, rear,
and right side of the chassis to provide excellent protection from dust.
With a simple magnet and notch design each filter can be easily removed for cleaning and maintenance.

P/N – CA-1Y3-00M1WN-00
SERIES – CTE
CASE TYPE – Mid Tower
DIMENSIONS – 558.5 x 270 x 513mm – (21.99 x 10.63 x 20.2 inch)
WEIGHT – 16 kg / 35.27 lbs.
SIDE PANEL – 4mm Tempered Glass x 2
COLOR – White
MATERIAL – SPCC
DRIVE BAYS – 2 x 3.5”, 2 x 2.5”
EXPANSION SLOTS – 7

MOTHERBOARD
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)

I/O PORT
USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU – Standard PS2 PSU (optional)

FAN SUPPORT
Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm

RADIATOR SUPPORT
Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm

CLEARANCE
CPU cooler max height: 166mm
VGA max length: 415mm (with radiator) 443.8mm (without radiator)
PSU max length: 220mm
