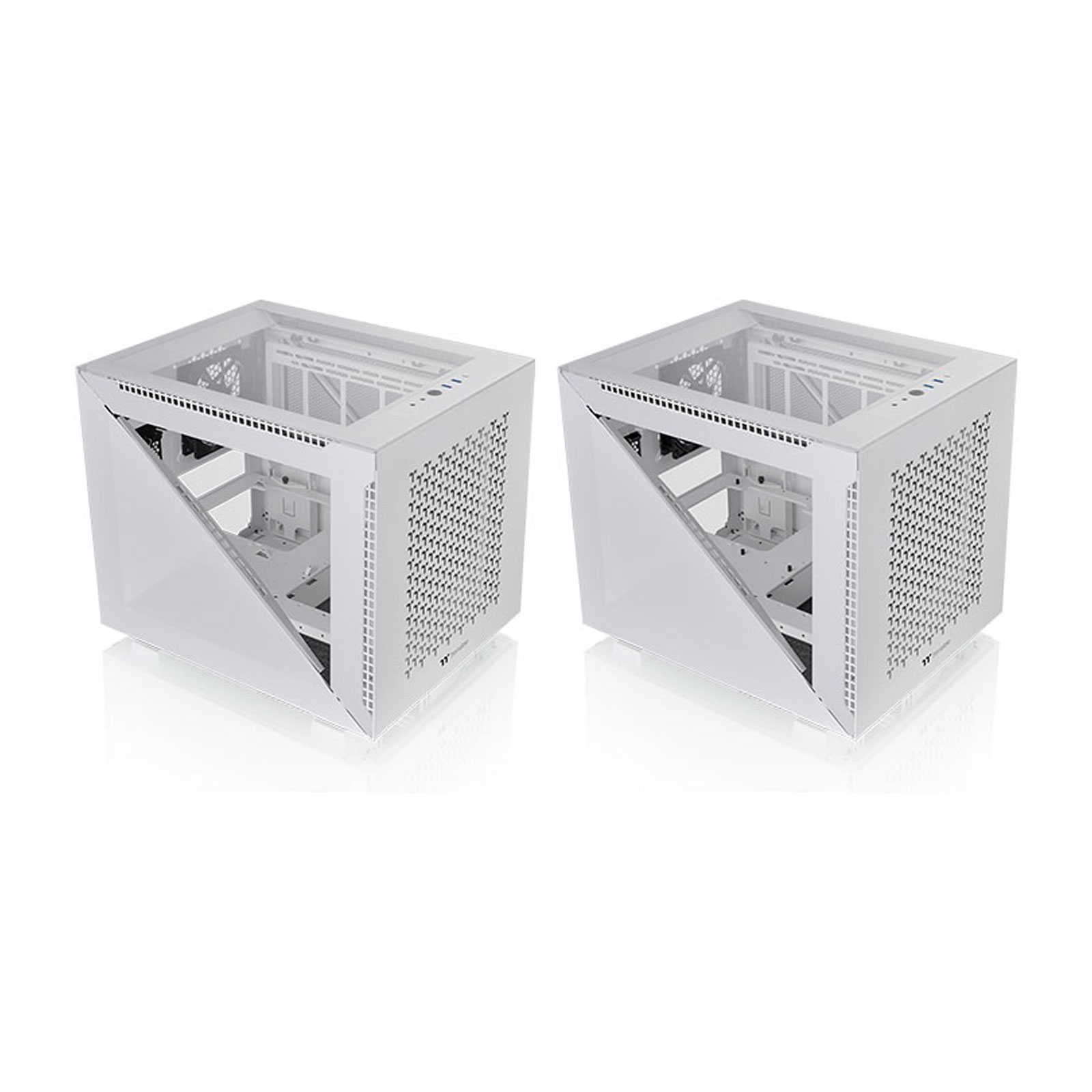

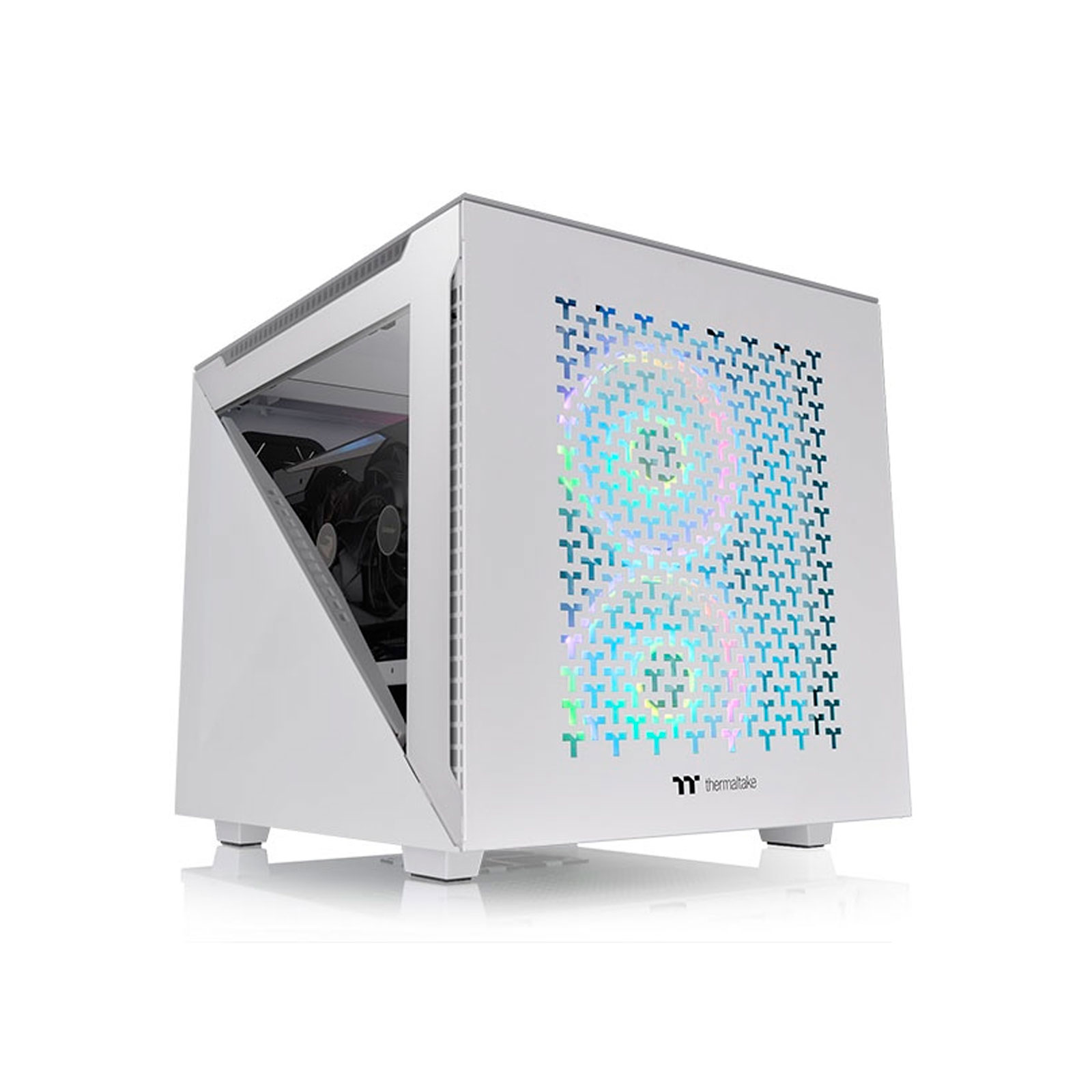

Divider 200 TG Air Snow Micro-ATX Chassis
Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements
and customizable options blending all the functionalities into the Divider Series. The Divider 200 TG Air Snow is a Micro-ATX case
to the Divider Series. Just like the other models, the most exceptional feature of the Divider 200 TG Air Snow
is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side.
On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow.
These panels are tool-free and easy to remove, showcasing components inside. Additionally, the Divider 200 TG Air Snow
comes with one preinstalled 200mm front fan and one 120mm standard rear fan to ensure outstanding cooling performance.
Lastly, the Divider 200 TG Air Snow has a chamber design with a flat motherboard tray that lets a user better doing cable management,
while showing off hardware at the top. The Divider 200 TG Air Snow Micro Case is the next-gen gaming PC case for users,
enthusiasts, and gamers who are craving a micro case, giving them unprecedented satisfaction.
Symmetrical Triangular Side Panels Design with Tempered Glass Windows

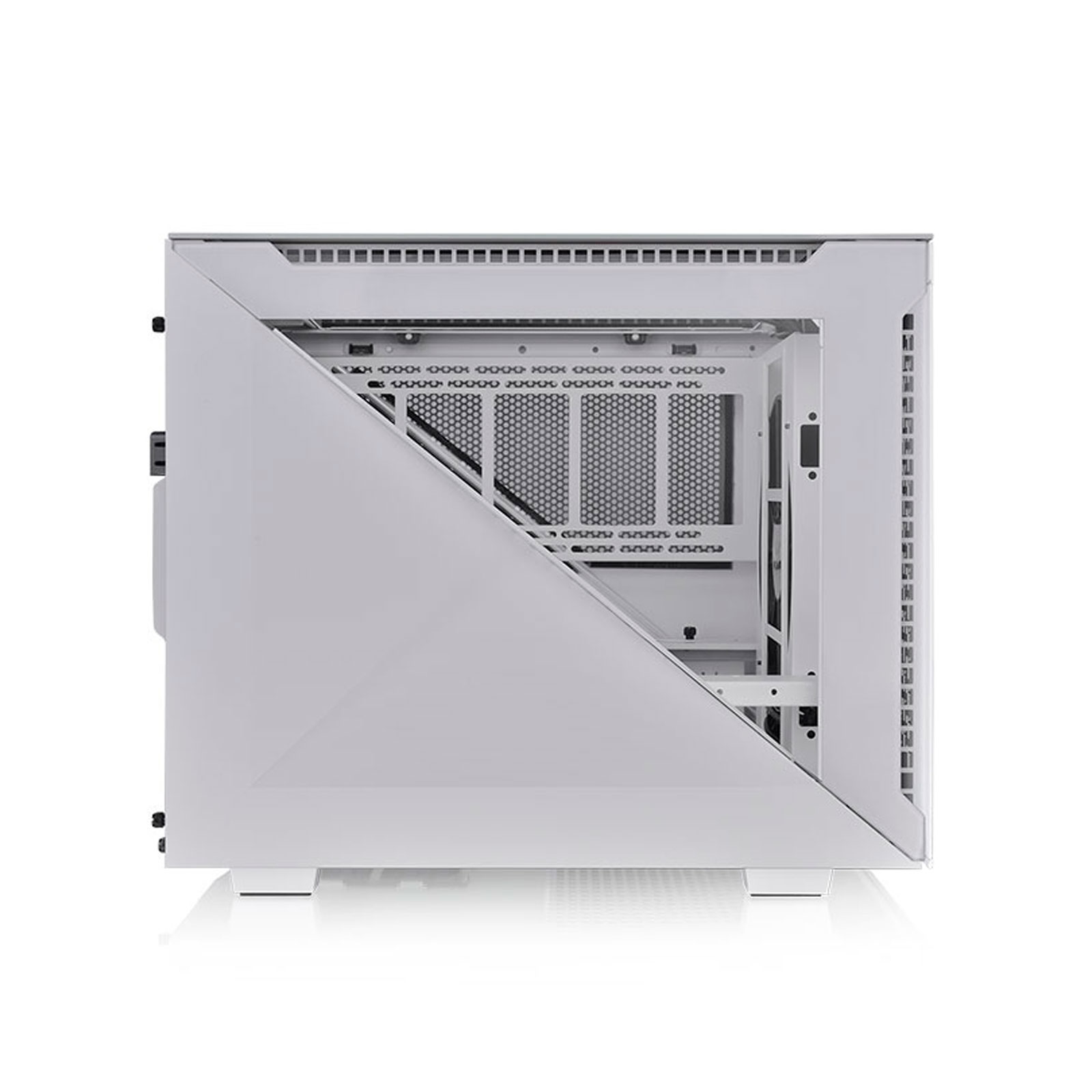

The exceptional feature of the Divider 200 TG Air Snow is the two symmetrical triangular pieces comprised

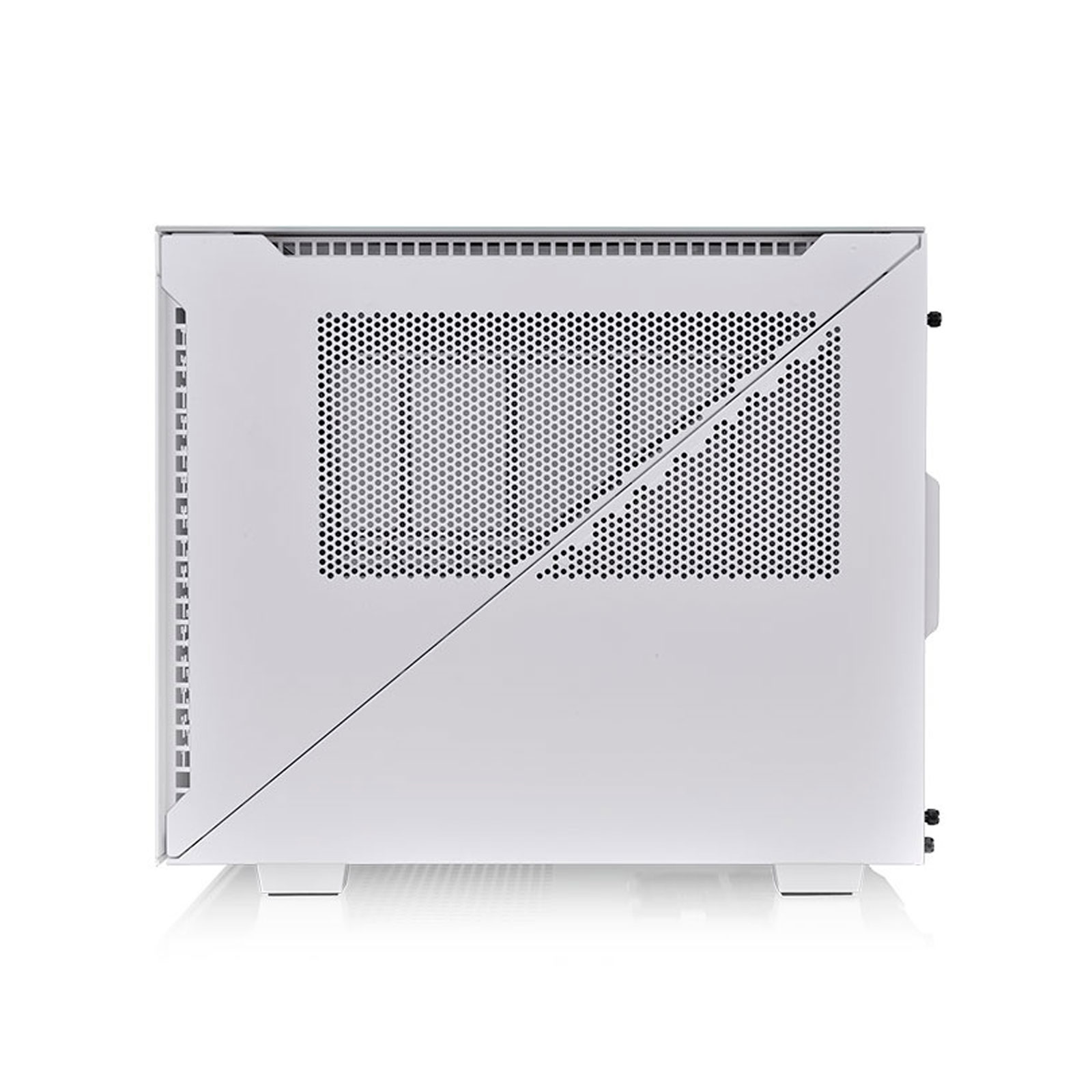

of a steel panel and tempered glass window on the left side. On the right side, the two triangular steel panels
are designed with a large venting mechanism for air intake or exhaust depends on a user’s preference when building a PC.
All of them are tool-free and easy to remove. Divider 200 TG Air Snow comes with two sturdy 3mm tempered glass windows
on the top and at the right, showcasing components inside the system. Tempered glass
windows are thicker and more scratch-resistant compared to standard acrylic.
An Airflow-Optimized Panel

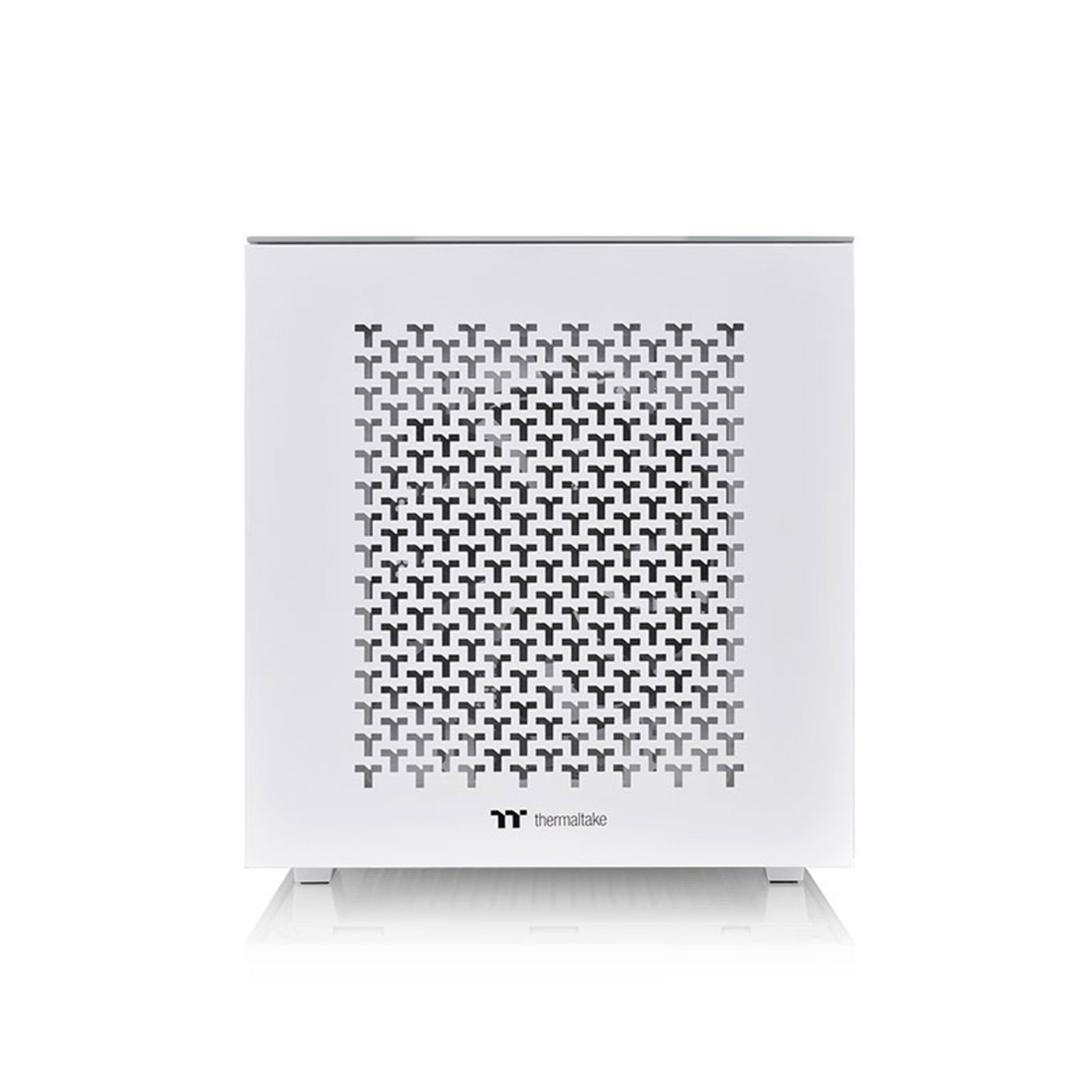

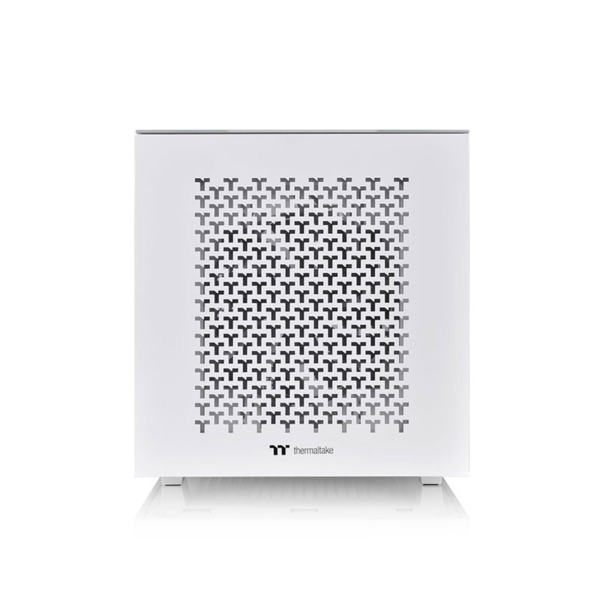

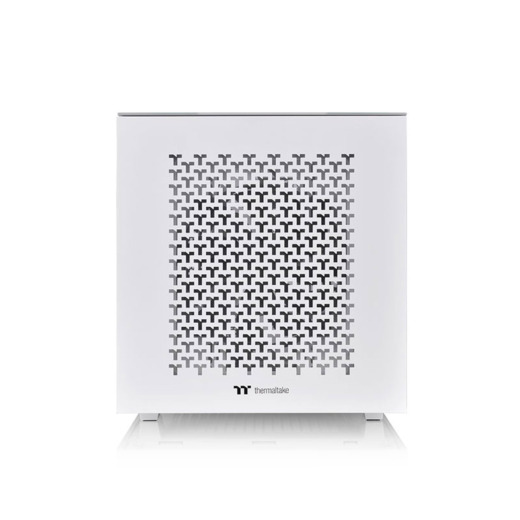

The Divider 200 TG Air Snow comes with one large airflow-optimized mesh panel at the front for massive airflow performance.
Excellent Dust Filtration
The Divider 200 TG Air Snow has well-designed removal magnetic fan filters on the right side and inner bottom.
At the front and bottom, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Air Intake and Exhaust
The cooling performance of the Divider 200 TG Air Snow is excellent. The front mesh panel,
air vents on the two sides of the front mesh panel and top tempered glass, and the vent between
two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake.

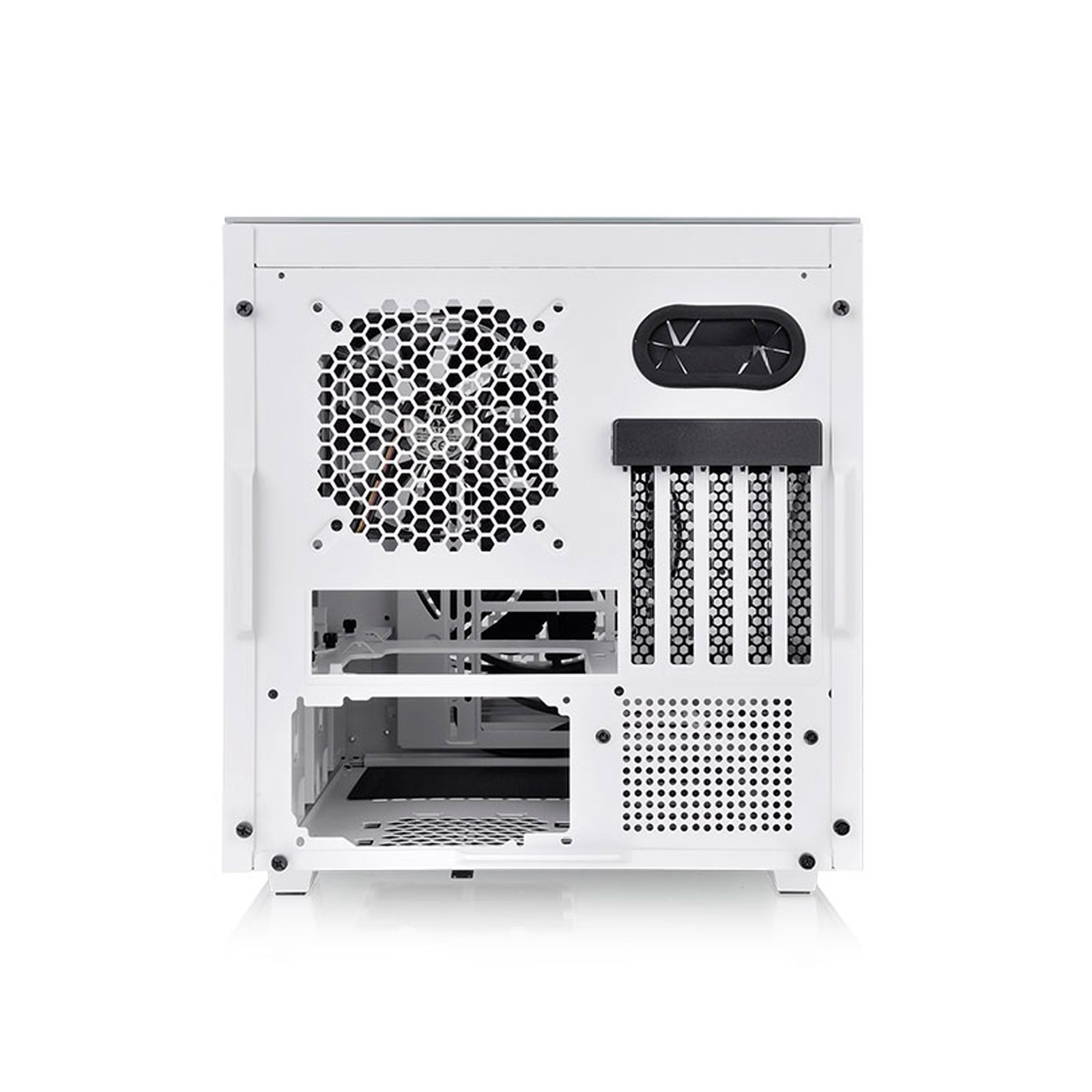

Cooling exhausts are located at the rear of the case. On the right side, the two triangular steel panels are designed
with a large venting mechanism for air intake or exhaust depends on the user’s overall PC layout design.
Handy I/O Ports
Two 3.0 USB and one USB 3.2 (Gen 2) Type C ports are placed on the top panel to grant direct access when needed.
P/N | CA-1V1-00S6WN-01 |
---|---|
SERIES | Divider |
MODEL | Divider 200 TG Air Snow |
CASE TYPE | Micro Case |
DIMENSION (H X W X D) | 364.7 x 333.2 x 425.7 mm (14.4 x 13.1 x 16.8 inch) |
NET WEIGHT | 8.97 kg / 19.78 lbs. |
PANEL | 3mm Tempered Glass x 2 |
COLOR | White |
MATERIAL | SPCC |
COOLING SYSTEM | Front (intake): 200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1 |
DRIVE BAYS -ACCESSIBLE -HIDDEN |
|
EXPANSION SLOTS | 5 |
MOTHERBOARDS | 6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX) |
I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
FAN SUPPORT | Front: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm 1 x 200mm Right: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm, 1 x 140mm Bottom: 2 x 120mm, 1 x 120mm |
RADIATOR SUPPORT | Front: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
CLEARANCE | CPU cooler height limitation: 185mm VGA length limitation: 310mm (With 27mm radiator) 340mm (Without radiator) PSU length limitation: 180mm (With Bottom Fan) 200mm (Without Bottom Fan) |
