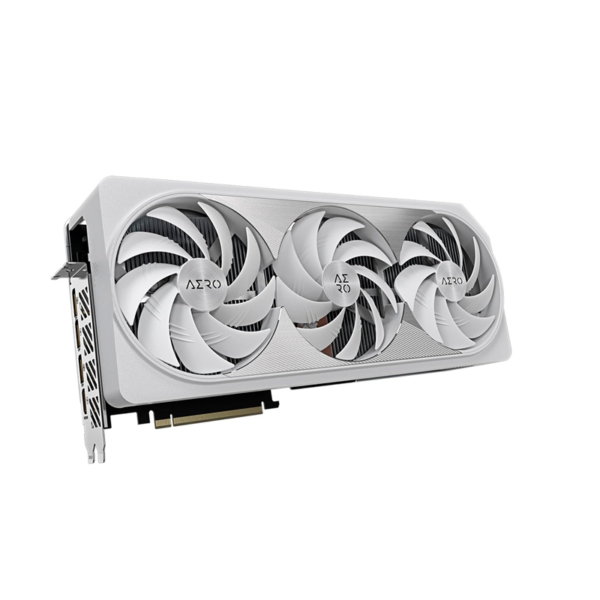

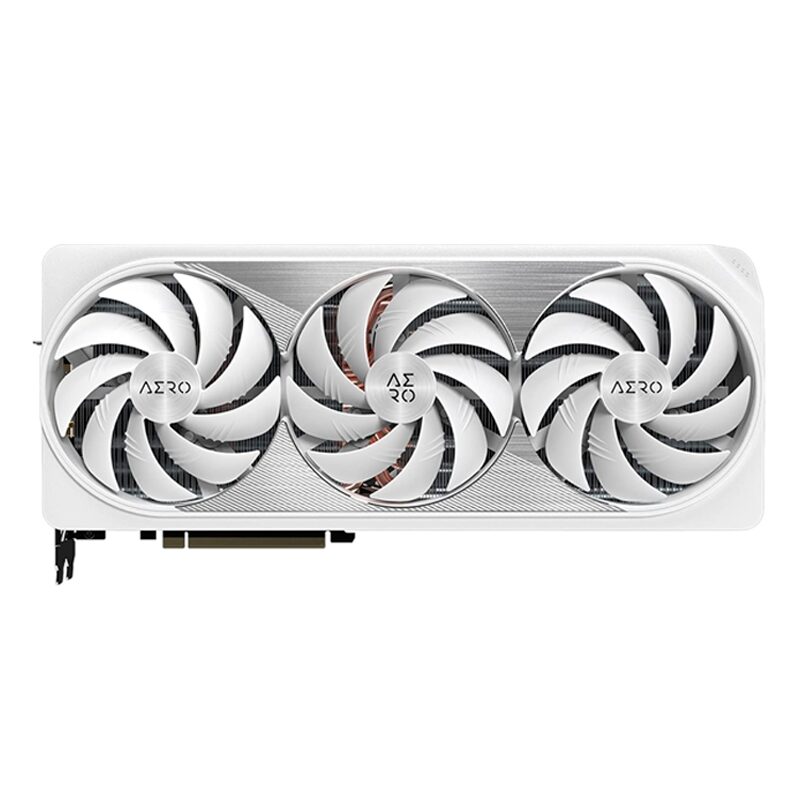

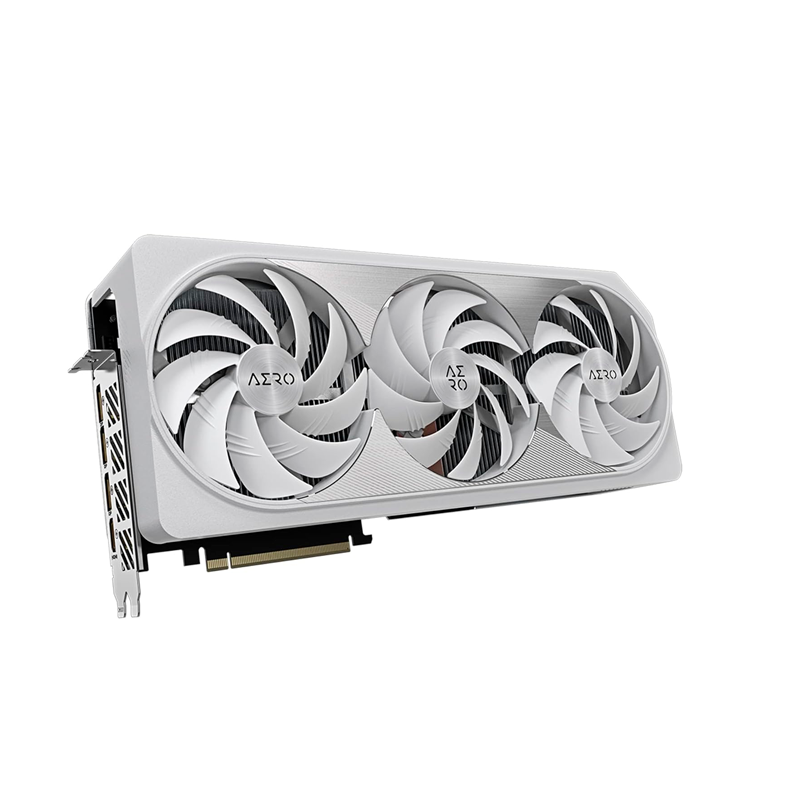

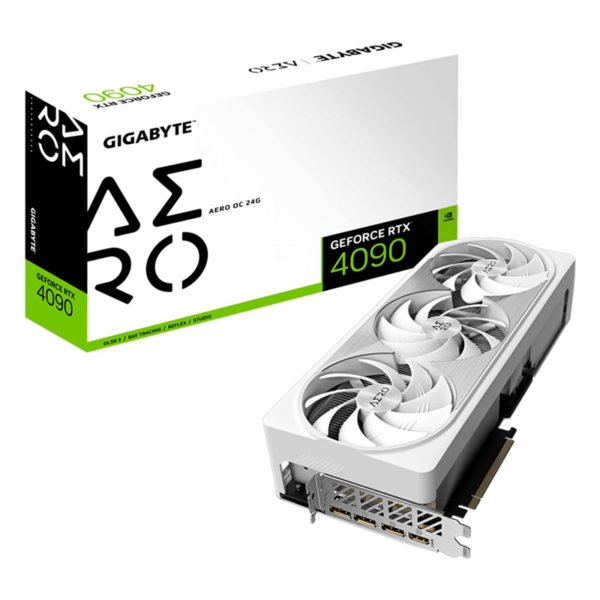

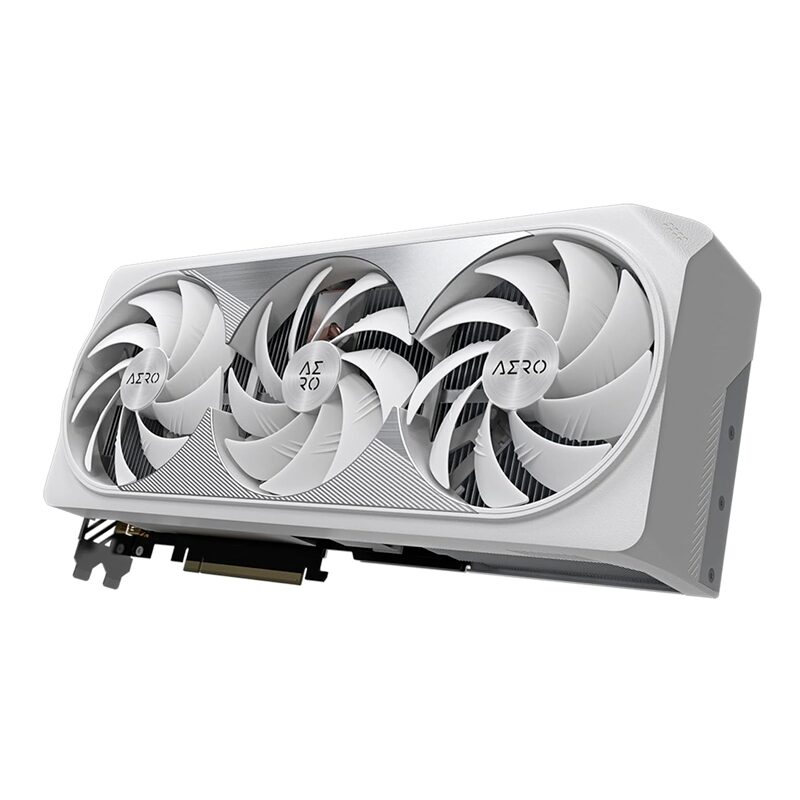

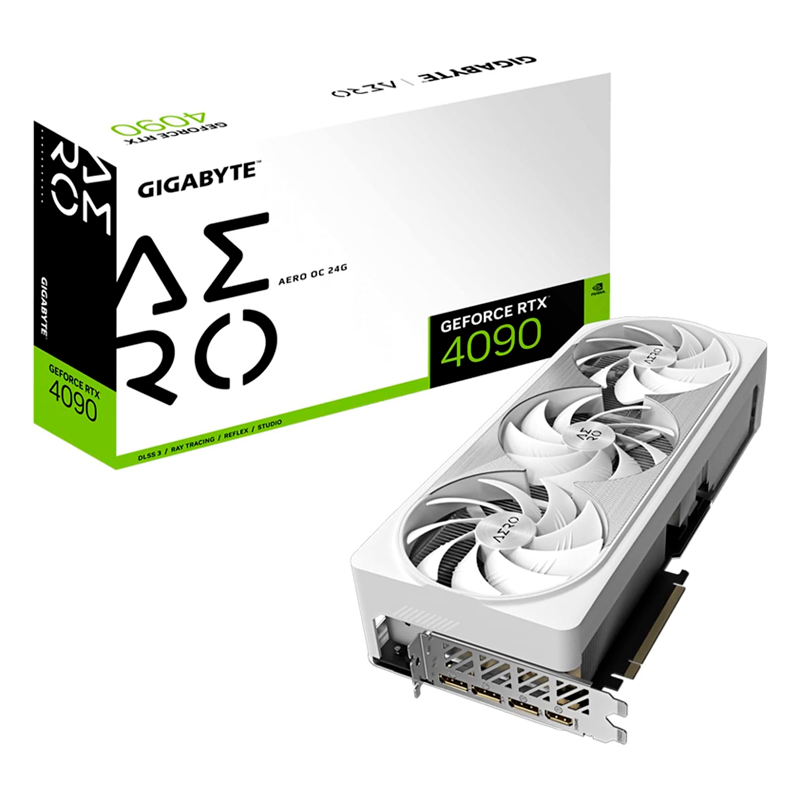

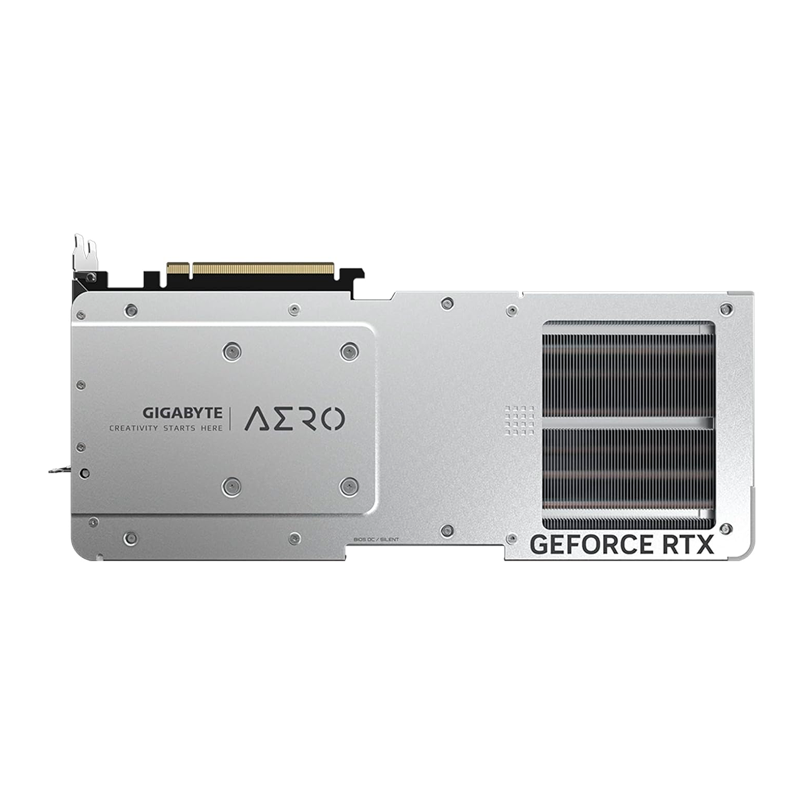

GPU Gigabyte GeForce RTX 4090 AERO OC 24G

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

LARGE VAPOR CHAMBER & HEAT-PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes,
which quickly transfers the heat of the GPU and VRAM to the heatsink.

RGB FUSION

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect
or synchronize with other devices in GIGABYTE CONTROL CENTER.

• Graphics Processing – GeForce RTX™ 4090
• Core Clock – 2535 MHz (Reference Card: 2520 MHz)
• CUDA® Cores – 16384
• Memory Clock – 21 Gbps
• Memory Size – 24 GB
• Memory Type – GDDR6X
• Memory Bus – 384 bit
• Card Bus – PCI-E 4.0
• Digital max resolution – 7680×4320
• Multi-view – 4
• Card size – L=342 W=150 H=75 mm
• PCB Form – ATX
• DirectX – 12 Ultimate
• OpenGL – 4.6
• Recommended PSU – 1000W
• Power Connectors – 16 pin*1

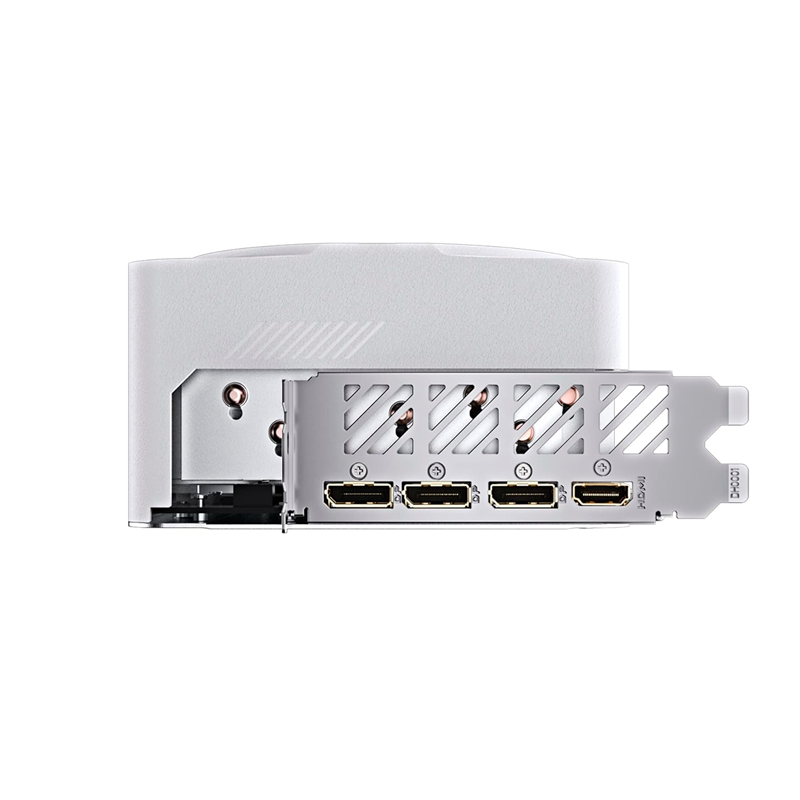

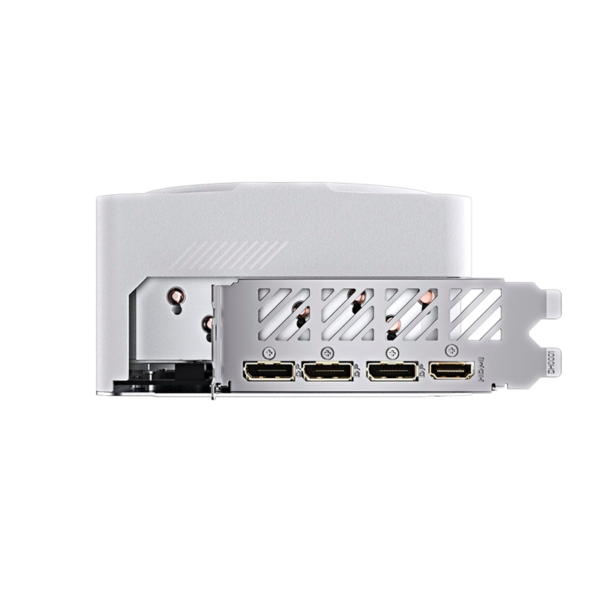

• Output
  DisplayPort 1.4a *3
  HDMI 2.1a *1
• Accessories
  1. Quick guide
  2. Warranty registration
  3. Anti-sag bracket
  4. Anti-sag bracket installation guide
  5. One 16-pin to four 8-pin power adaptor
