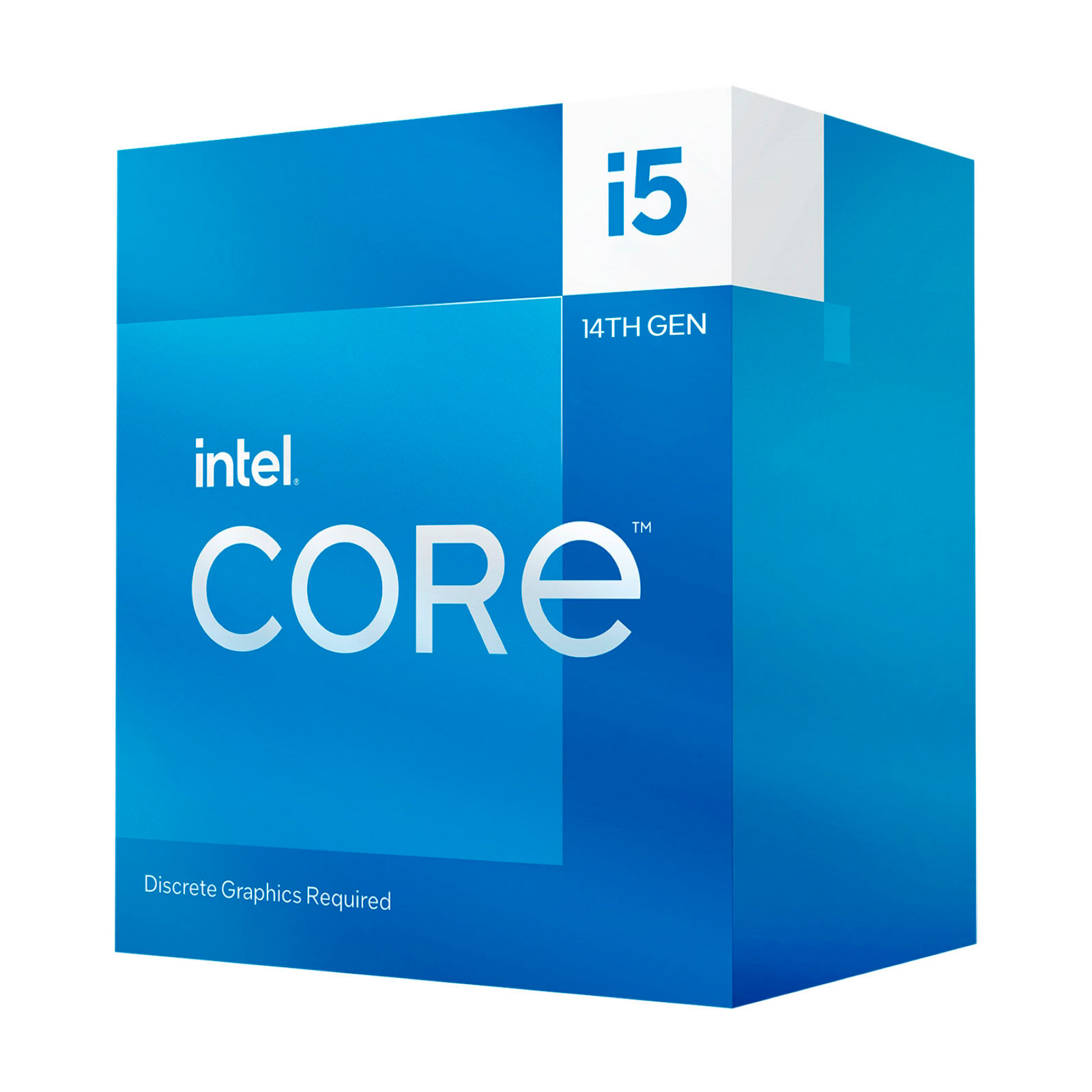

Intel Core i5 processor 14400F up to 4.70 GHz
- 10 cores (6 P-cores + 4 E-cores) and 16 threads
- Performance hybrid architecture integrates two core microarchitectures, prioritizing and distributing workloads to optimize performance
- Up to 4.7 GHz unlocked. 20MB Cache
- Compatible with Intel 600-series (with potential BIOS update) and 700-series chipset-based motherboards
- PCIe 5.0 & 4.0 support. DDR4 and DDR5 Memory support. RM1 thermal solution included. Discrete graphics required.
$222 exc. VAT
CPU Specifications
- Total Cores 10
- # of Performance-cores 6
- # of Efficient-cores 4
- Total Threads 16
- Max Turbo Frequency 4.7 GHz
- Performance-core Max Turbo Frequency 4.7 GHz
- Efficient-core Max Turbo Frequency 3.5 GHz
- Performance-core Base Frequency 2.5 GHz
- Efficient-core Base Frequency 1.8 GHz
- Cache20 MB Intel® Smart Cache
- Total L2 Cache 9.5 MB
- Processor Base Power 65 W
- Maximum Turbo Power 148 W
Supplemental Information
- Marketing Status Launched
- Launch Date Q1’24
- Embedded Options Available No
Memory Specifications
- Max Memory Size (dependent on memory type) 192 GB
- Memory Types Up to DDR5 4800 MT/s
Up to DDR4 3200 MT/s - Max # of Memory Channels 2
- Max Memory Bandwidth 76.8 GB/s
Expansion Options
- Direct Media Interface (DMI) Revision 4.0
- Max # of DMI Lanes 8
- Scalability 1S Only
- PCI Express Revision 5.0 and 4.0
- PCI Express Configurations ‡Up to 1×16+4, 2×8+4
- Max # of PCI Express Lanes 20
Package Specifications
- Sockets Supported FCLGA1700
- Max CPU Configuration 1
- Thermal Solution Specification PCG 2020C
- TJUNCTION 100°C
- Package Size 45.0 mm x 37.5 mm
