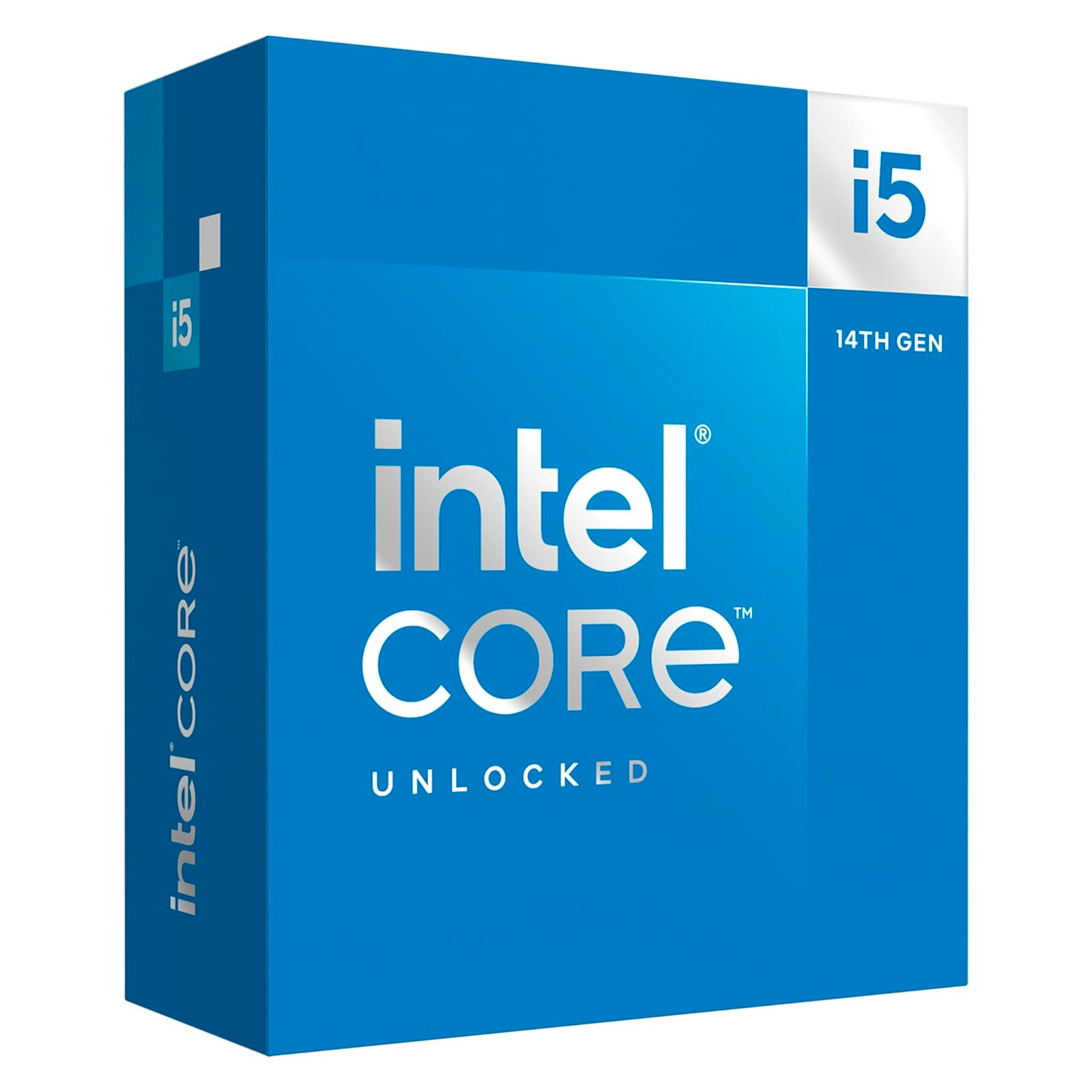

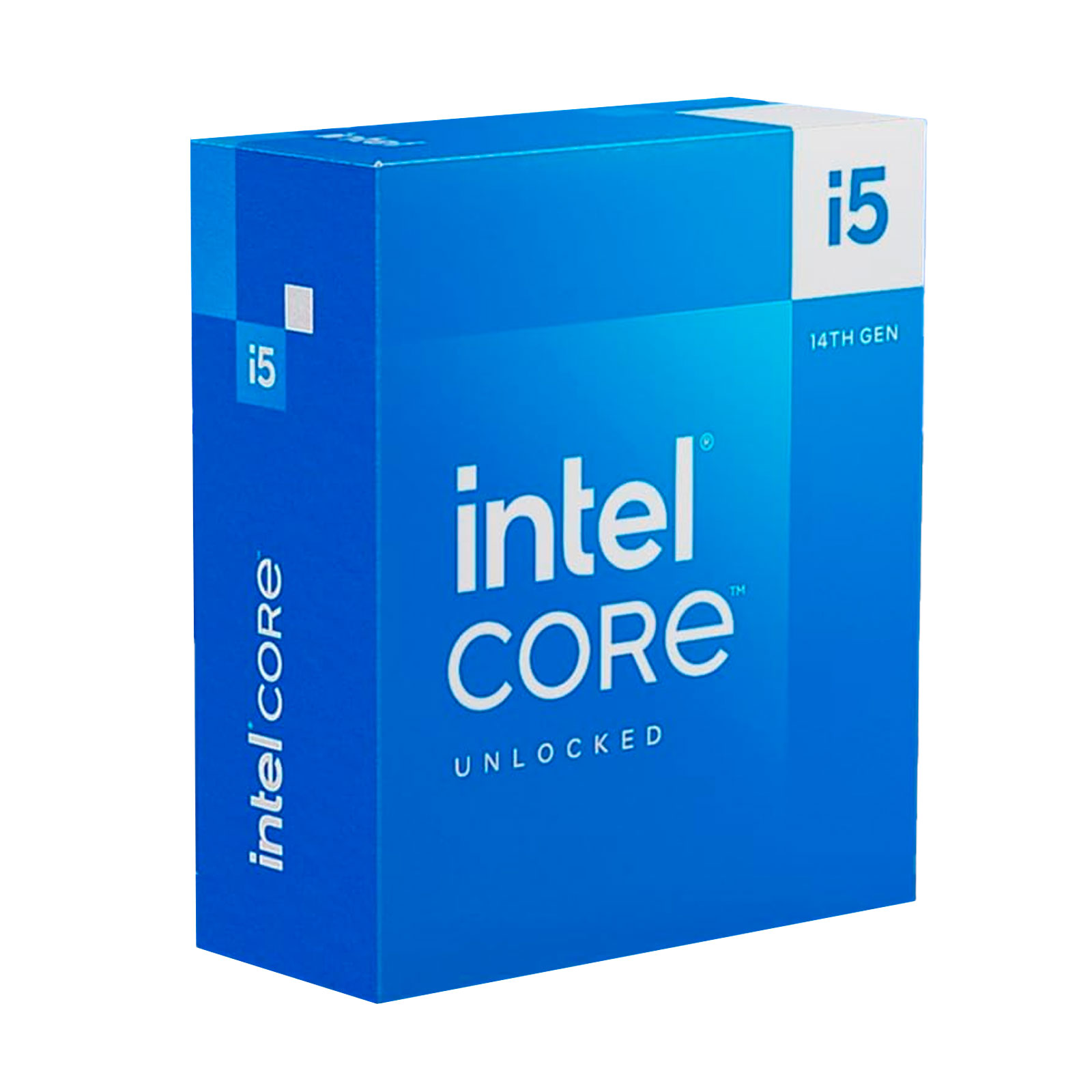

Intel Core i5 processor 14600K 5.30 GHz
- Be everything you want to be, in-game and out with optimized performance and new features. Play harder and work smarter with Intel Core 14th Gen processors
- 14 cores (6 P-cores + 8 E-cores) and 20 threads. Integrated Intel UHD Graphics 770 included
- Up to 5.3 GHz Max Turbo Frequency
- Compatible with Intel 600-series (with potential BIOS update) or 700-series chipset-based motherboards
- DDR4 and DDR5 platform support cuts your load times and gives you the space to run the most demanding games
$337 exc. VAT
Product Collection – Intel® Core™ i5 Processors (14th gen)
Code Name – Products formerly RAPTOR LAKE
Vertical Segment – Desktop
Processor Number – i5-14600K
Lithography – Intel 7
Use Conditions – PC/Client/Tablet, Workstation
CPU Specifications
Total Cores – 14
# of Performance-cores – 6
# of Efficient-cores – 8
Total Threads – 20
Max Turbo Frequency – 5.3 GHz
Performance-core Max Turbo Frequency – 5.3 GHz
Efficient-core Max Turbo Frequency – 4 GHz
Performance-core Base Frequency – 3.5 GHz
Efficient-core Base Frequency – 2.6 GHz
Cache – 24 MB Intel® Smart Cache
Total L2 Cache – 20 MB
Processor Base Power – 125 W
Maximum Turbo Power – 181 W
Supplemental Information
Marketing Status – Launched
Launch Date – Q4’23
Embedded Options Available – No
Memory Specifications
Max Memory Size (dependent on memory type) – 192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels – 2
Max Memory Bandwidth – 89.6 GB/s
ECC Memory Supported ‡ – Yes
GPU Specifications
Processor Graphics ‡ – Intel® UHD Graphics 770
Graphics Base Frequency – 300 MHz
Graphics Max Dynamic Frequency – 1.55 GHz
Graphics Output – eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units – 32
Max Resolution (HDMI) – 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ – 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel)‡ – 5120 x 3200 @ 120Hz
DirectX* Support – 12
OpenGL* Support – 4.5
OpenCL* Support – 3.0
Multi-Format Codec Engines – 2
Intel® Quick Sync Video – Yes
Intel® Clear Video HD Technology – Yes
# of Displays Supported – 4
Device ID – 0xA780
Expansion Options
Direct Media Interface (DMI) Revision – 4.0
Max # of DMI Lanes – 8
Scalability – 1S Only
PCI Express Revision – 5.0 and 4.0
PCI Express Configurations – Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes – 20
Package Specifications
Sockets Supported – FCLGA1700
Max CPU Configuration – 1
Thermal Solution Specification – PCG 2020A
TJUNCTION – 100°C
Package Size – 45.0 mm x 37.5 mm
