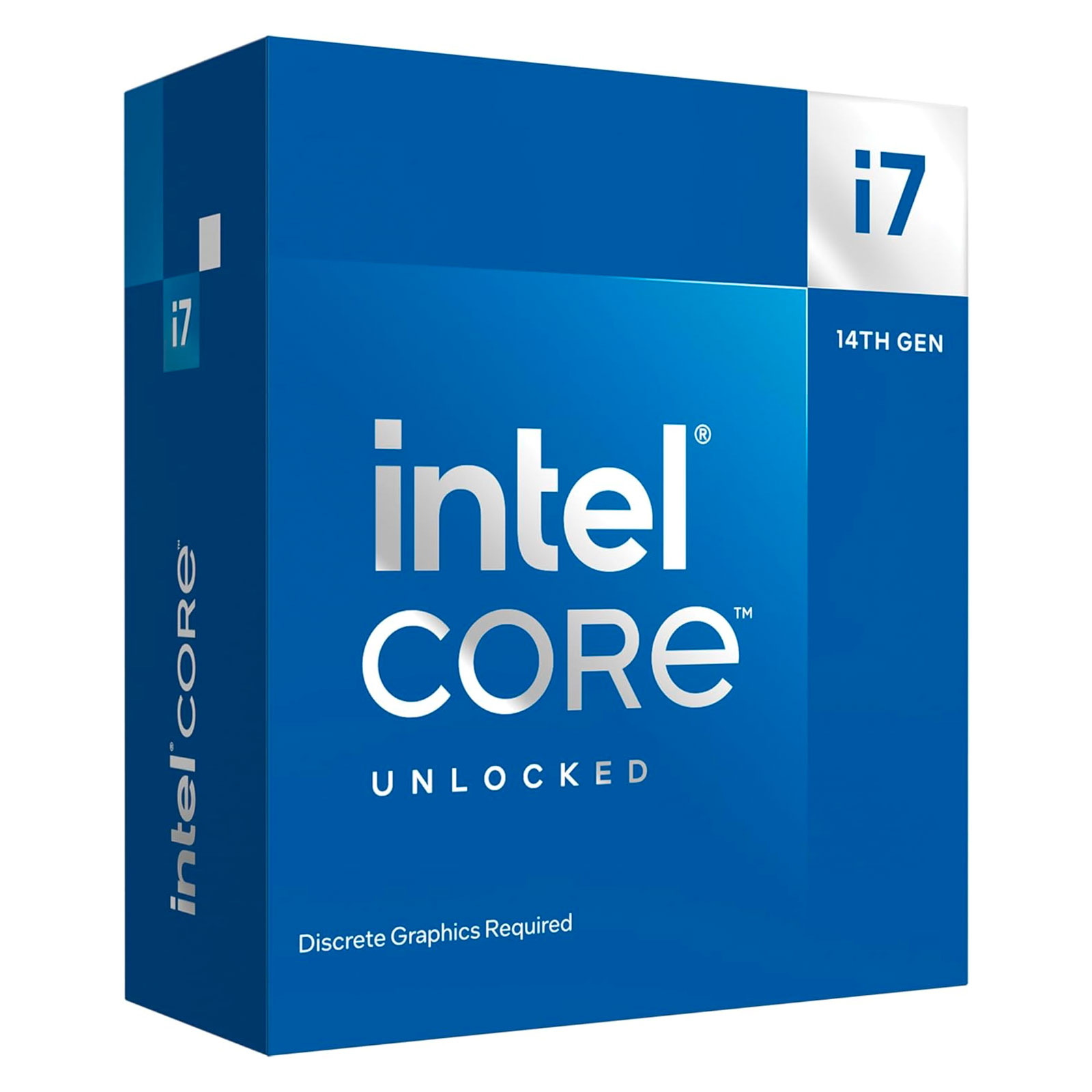

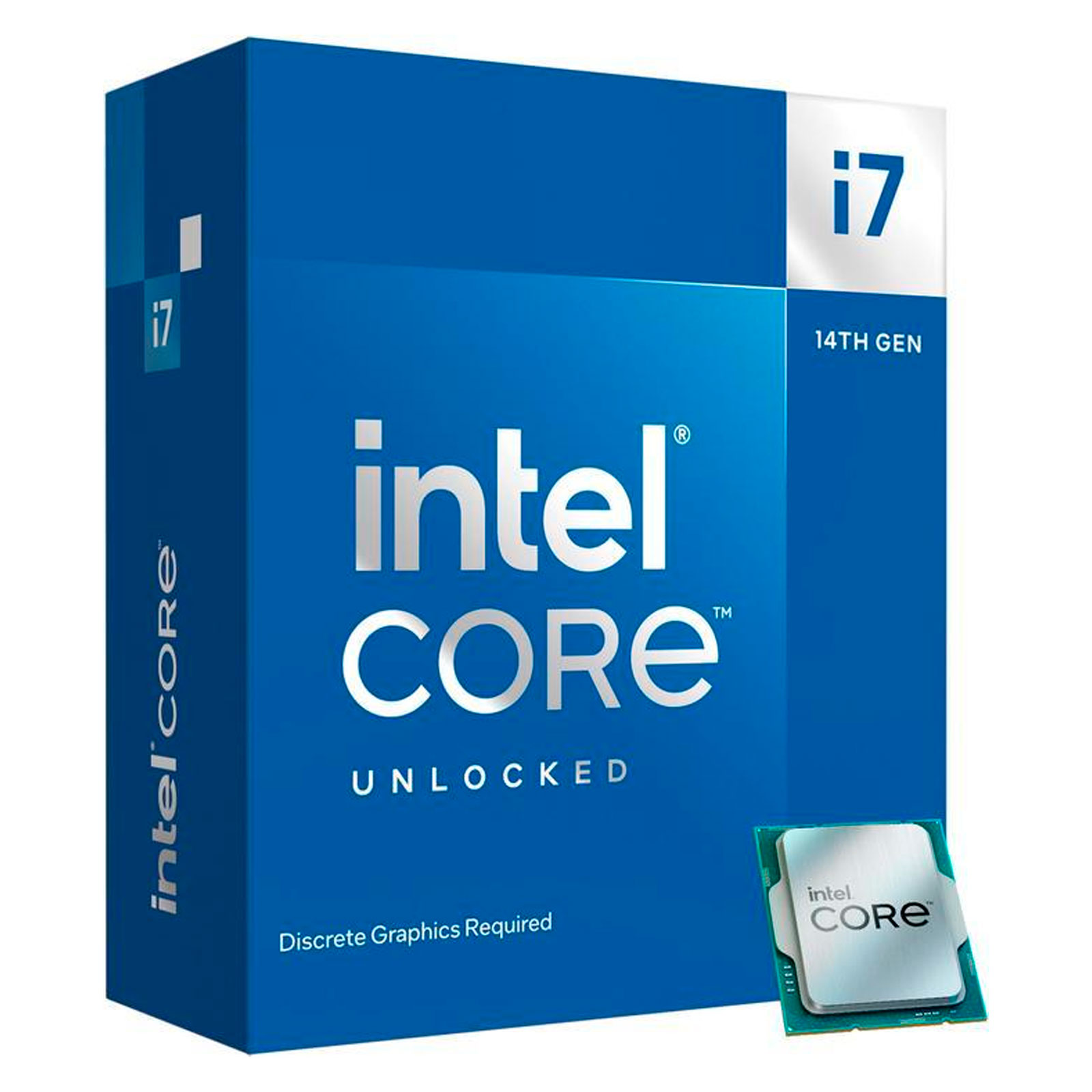

Intel Core i7 processor 14700KF 5.60 GHz
- Game Without Compromise. Play harder and work smarter with Intel Core 14th Gen processors
- 20 cores (8 P-cores + 12 E-cores) and 28 threads. Discrete graphics required
- Up to 5.6 GHz with Turbo Boost Max Technology 3.0 gives you smooth game play, high frame rates, and rapid responsiveness
- Compatible with Intel 600-series (with potential BIOS update) or 700-series chipset-based motherboards
- DDR4 and DDR5 platform support cuts your load times and gives you the space to run the most demanding games
$409 exc. VAT
Product Collection – Intel® Core™ i7 Processors (14th gen)
Code Name – Products formerly RAPTOR LAKE
Vertical Segment – Desktop
Processor Number – i7-14700KF
Lithography – Intel 7
Use Conditions – PC/Client/Tablet
CPU Specifications
Total Cores – 20
# of Performance-cores – 8
# of Efficient-cores – 12
Total Threads – 28
Max Turbo Frequency – 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency – 5.6 GHz
Performance-core Max Turbo Frequency – 5.5 GHz
Efficient-core Max Turbo Frequency – 4.3 GHz
Performance-core Base Frequency – 3.4 GHz
Efficient-core Base Frequency – 2.5 GHz
Cache – 33 MB Intel® Smart Cache
Total L2 Cache – 28 MB
Processor Base Power – 125 W
Maximum Turbo Power – 253 W
Supplemental Information
Marketing Status – Launched
Launch Date – Q4’23
Embedded Options Available – No
Memory Specifications
Max Memory Size (dependent on memory type) – 192 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels – 2
Max Memory Bandwidth – 89.6 GB/s
Expansion Options
Direct Media Interface (DMI) Revision – 4.0
Max # of DMI Lanes – 8
Scalability – 1S Only
PCI Express Revision – 5.0 and 4.0
PCI Express Configurations – Up to 1×16+4, 2×8+4
Max # of PCI Express Lanes – 20
Package Specifications
Sockets Supported – FCLGA1700
Max CPU Configuration – 1
Thermal Solution Specification – PCG 2020A
TJUNCTION100°C
Package Size – 45.0 mm x 37.5 mm
