LIAN LI SL INFINITY 3FAN 120mm Black
- Software controlled fan speed/ LED lighting
- Only one cable is required for a cluster of fans
- Embedded magnetic Fluid Dynamic Bearing to provide stability, durability, and longevity
- 40 LEDs in each fan
- Quick PIN connection to provide ease of installation
- Low noise level at high RPM
- Infinity mirror look all around
$100 exc. VAT

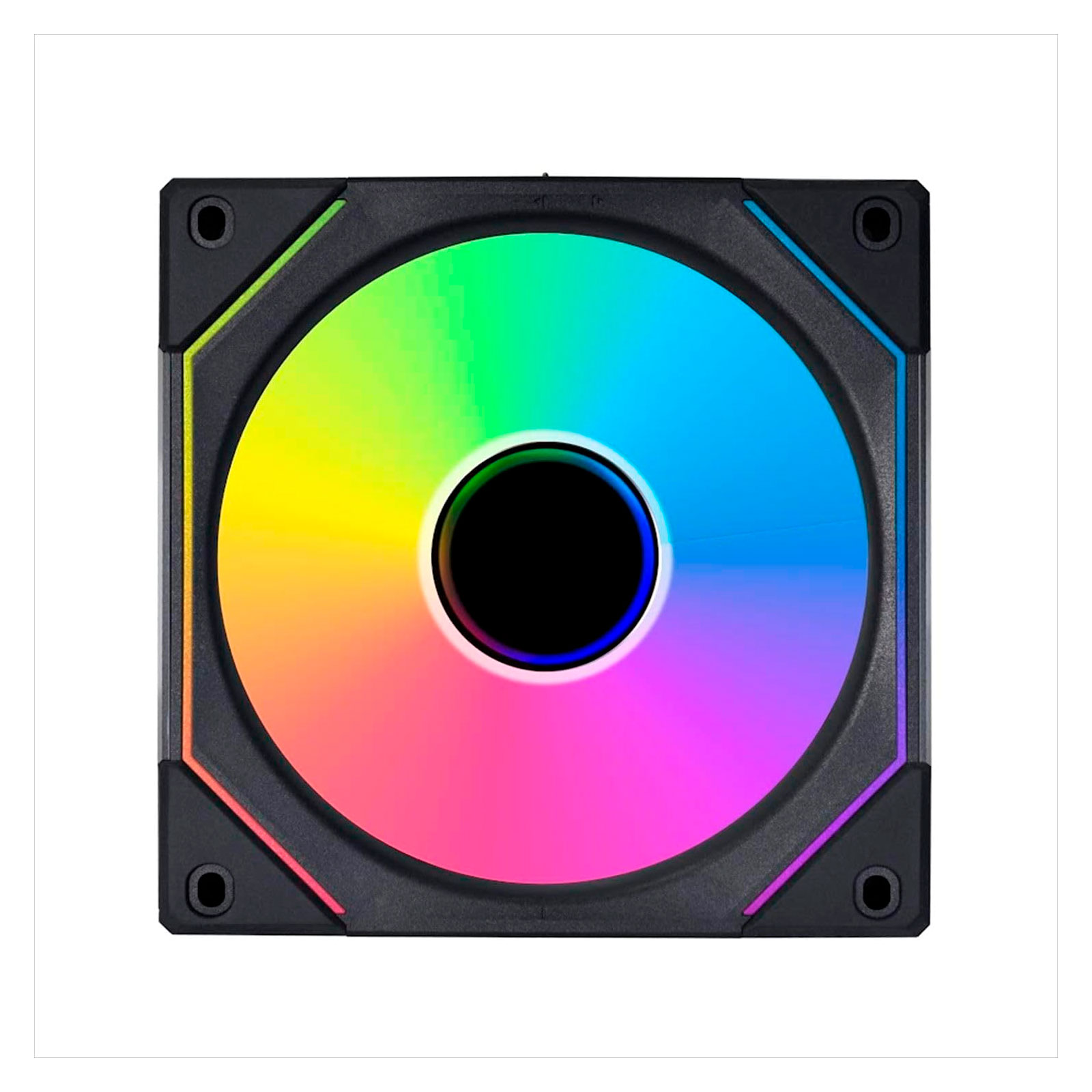

INFINITY MIRROR FAN
A combination of the original UNI FAN SL and AL with a touch of infinity mirror,
the SL-Infinity fans glow clear with multi-layer effects from any visible angle.
CENTERED INFINITY MIRROR ARGB
The circular-shaped infinity mirror at the center of the fan is tuned to have multiple layers spaced 0.5mm apart.
SIDE FRAME ARGB
Following the iconic angular lighting style of SL fans, the SL-Infinity fans have 2 thin LED strips on both sides of the fan blade.
ALUMINUM TRIM SURROUNDED INFINITY MIRROR
Surrounding aluminum trims are located on both sides of the frame.
The geometric shape of the infinity mirror follows the front ARGB lighting strip in a top and bottom pattern that creates a 3D indented look.
REAR RIM OF LED AROUND THE ALUMINUM LOGO
Inspired by AL fans, there is a bright ARGB rim of light around the LIAN LI logo at the rear.

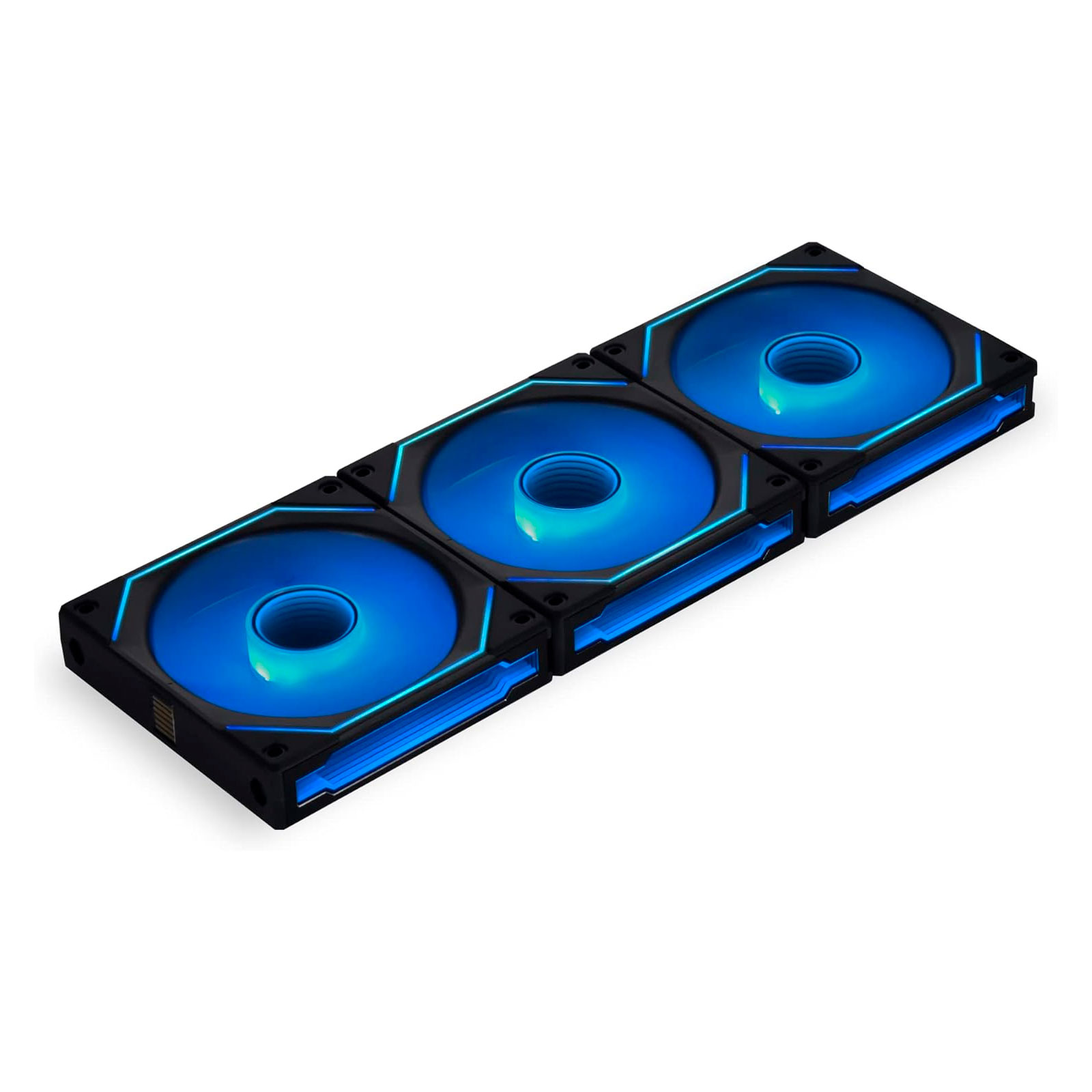

UNPRECEDENTED MODULARITY
The 2nd generation of UNI FAN SL revisits the interlocking style that can connect up to 4 fans
in a cluster and makes cable management simpler and improves compatibility with radiators fittings.
DAISY CHAIN FAN
A pin-to-pad contact point passes the signal and power through the fan cluster.
REMOVABLE KEYLOCK
The interlocking key on each fan is now removable to improve compatibility with radiators fittings.
REVERSIBLE CABLE MODULE
The cable module is now placed at the center of the fan and can switch orientation to reduce clearance issues with the radiator inlet and outlet.
SPECIFICATIONS
PRODUCT NAME – LIAN LI UNI FAN SL-INF 120 RGB
MODEL – UF-SLIN120-3B
COLOR – Black
NUMBER OF FANS – 3
CONTROLLER – Sí
CONNECTOR TYPE – 4 × 7-PIN
FAN DIMENSION – 120 X 122.1 X 25 (mm)
RATED VOLTAGE – DC 12V (FAN) & 5V (LED
FAN SPEED – 0,200~2100 RPM
MAX. AIR PRESSURE – 2.66 mmH2O (Maximum)
MAX. AIRFLOW – 61.3 CFM (Maximum)
ACOUSTIC NOISE – 29 dB(A) Max
LOCKED CURRENT – ≧50mA
BEARING TYPE – Fluid Dynamic Bearing (FDB)
START-UP VOLTAGE – DC ≦6V
INPUT CURRENT – 180mA (FAN) /600mA (LED)
INPUT POWER – 5.16W
