LIAN LI TL 120 KIT 3FAN White
- Noise-optimized and performance-oriented fan.
- LCP (liquid crystal polymer) fan blades are used for tight tolerance.
- FDB bearing with copper shielding to ensure stable rotation of the impeller.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- Cable connection is supported on both sides of the fan.
- Support up to 10 fans per controller port via a daisy-chain POGO cable.
- LED lighting and fan speed controller shared with UNIFAN TL LCD.
- Complete software control with L-Connect 3.
- The controller is required to use the fans.
$119 exc. VAT
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism,
securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
Featuring both male and female ends, the cable can be connected to both sides of the fan,
providing enhanced flexibility and ease of installation.
Note: To ensure the correct lighting effect direction, set the orientation
in L-Connect 3 under Settings > Device.
Well-Adapted for all Configuration
Besides the removing interlocking key, the TL fans includes connection covers the exposed
connections at the end to prevent short circuits while improving compatibility.
10 fans in a Row and up to 16 fans
Enable connection of up to 10 fans to a controller port using the extension cable,
which offers ability to create up to 4 clusters in a chain, with each cluster support a maximum of 4 fans
for individual customization of fan RPM and lighting, allowing a truly personalized build setup such as having 3 fans
on the top, 3 on the side, 3 on the bottom, and 1 on the rear.
Power till the end
Offering an extra power adapter in triple pack to connect to SATA
for consistent fan speed and LED color throughout.
Note: Use when daisy-chaining 6 fans in a row.
CUSTOMISABLE FAN SPEED
Able to set different fan speeds for each fan cluster to optimize different scenarios
of use providing flexibility for radiator or case fan needs with L-Connect 3.

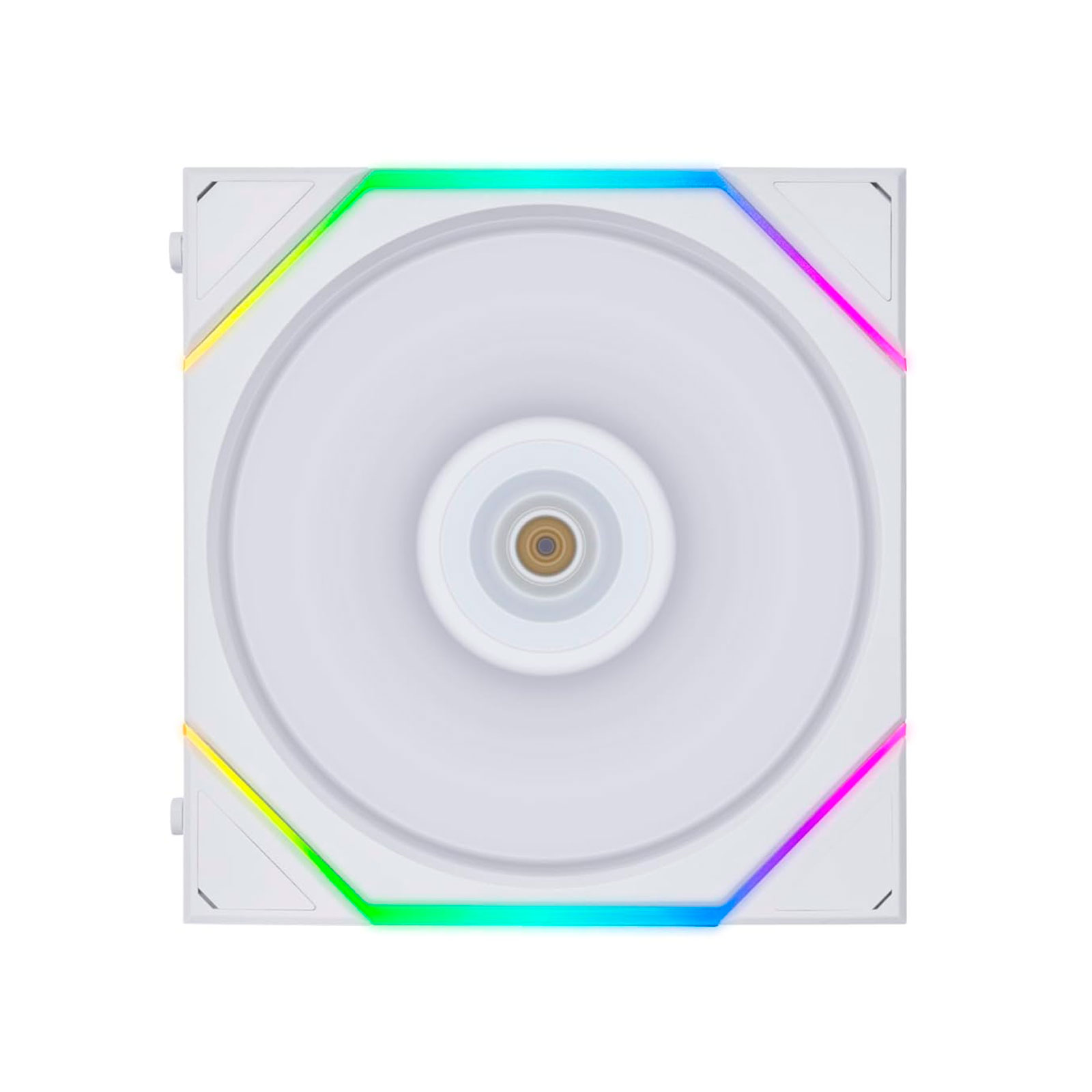

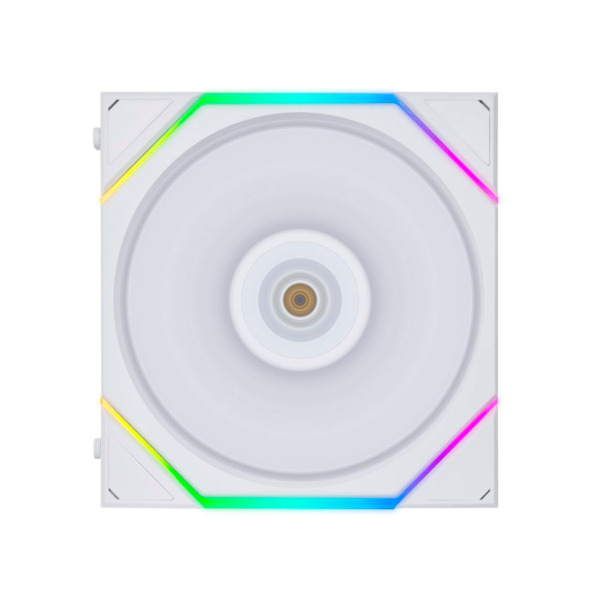

SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan frame that wraps around the edges of the anti-vibration pad.

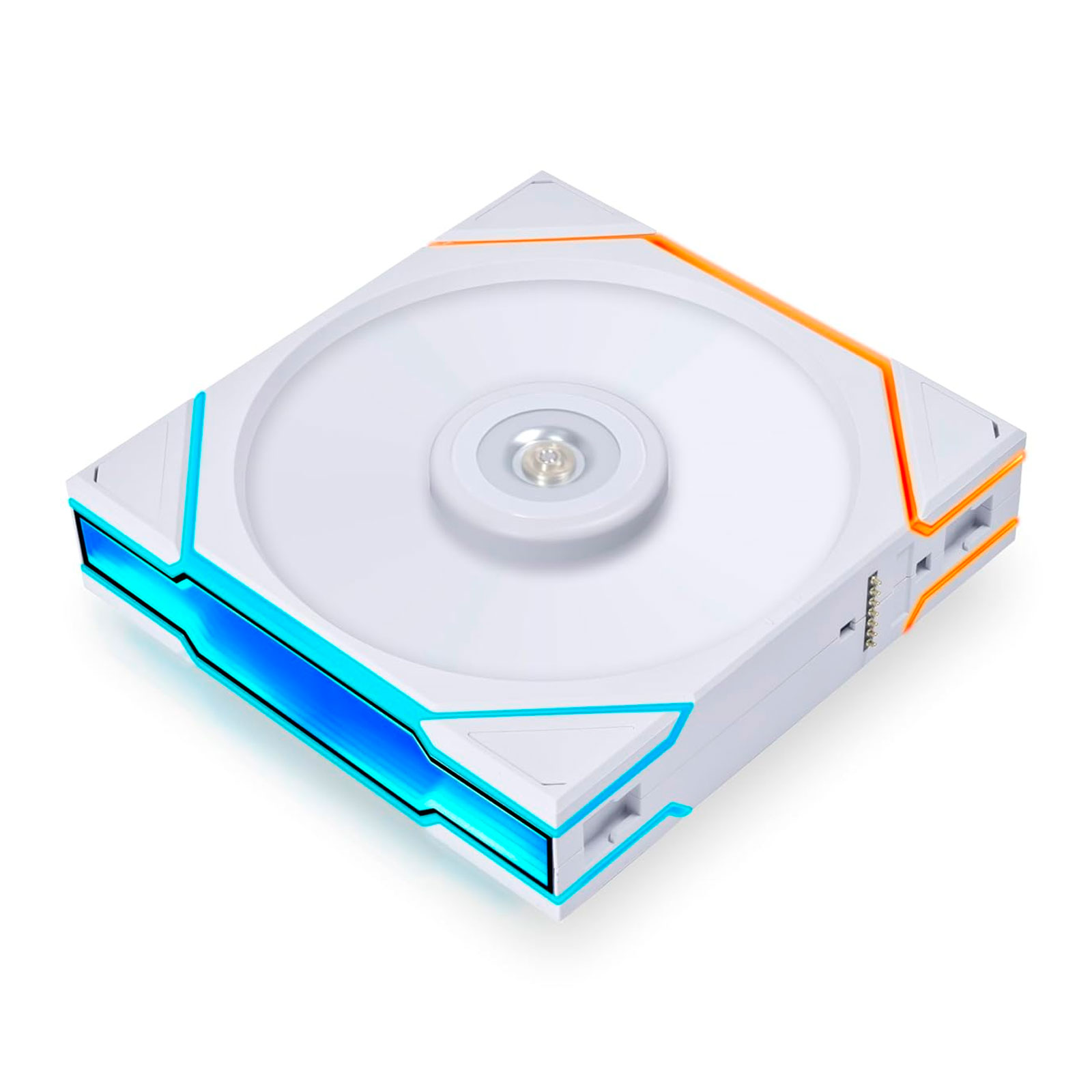

DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side)
on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.

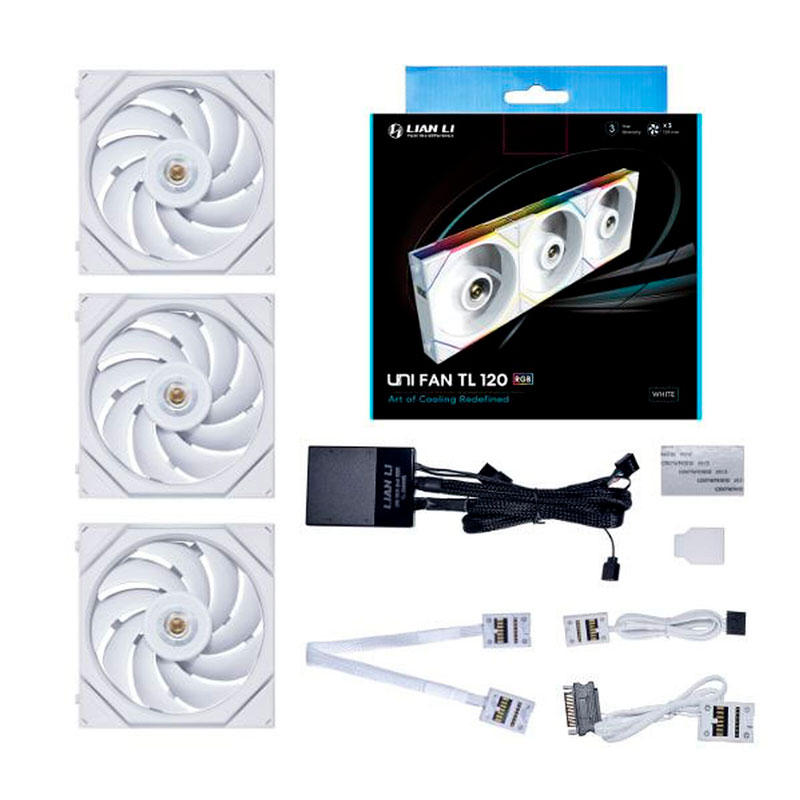

SPECIFICATIONS
PRODUCT NAME – UNI FAN TL 120
MODEL – 12TL3W
COLOR – White
NUMBER OF FANS – 3
CONTROLLER – Yes
CONNECTOR TYPE – UNI FAN Controller Cable x 1 (P-7P)
Extension Cable x 1 (P-P)
Power Adapter Cable x 1 (P-SA)
FAN DIMENSION – 124 x 120 x 28 mm
FAN SPEED – 0, 200~2600 RPM
MAX. AIR PRESSURE – 3.97 mmH2O (Maximum)
MAX. AIRFLOW – 90.1 CFM (Maximum)
ACOUSTIC NOISE – 33 dB(A) Max
INPUT POWER – 5.8W
MATERIAL – PA66 / LCP
RATED VOLTAGE – DC 12V (FAN) & 5V (LED)
BEARING TYPE – Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE – DC12V & 5V
