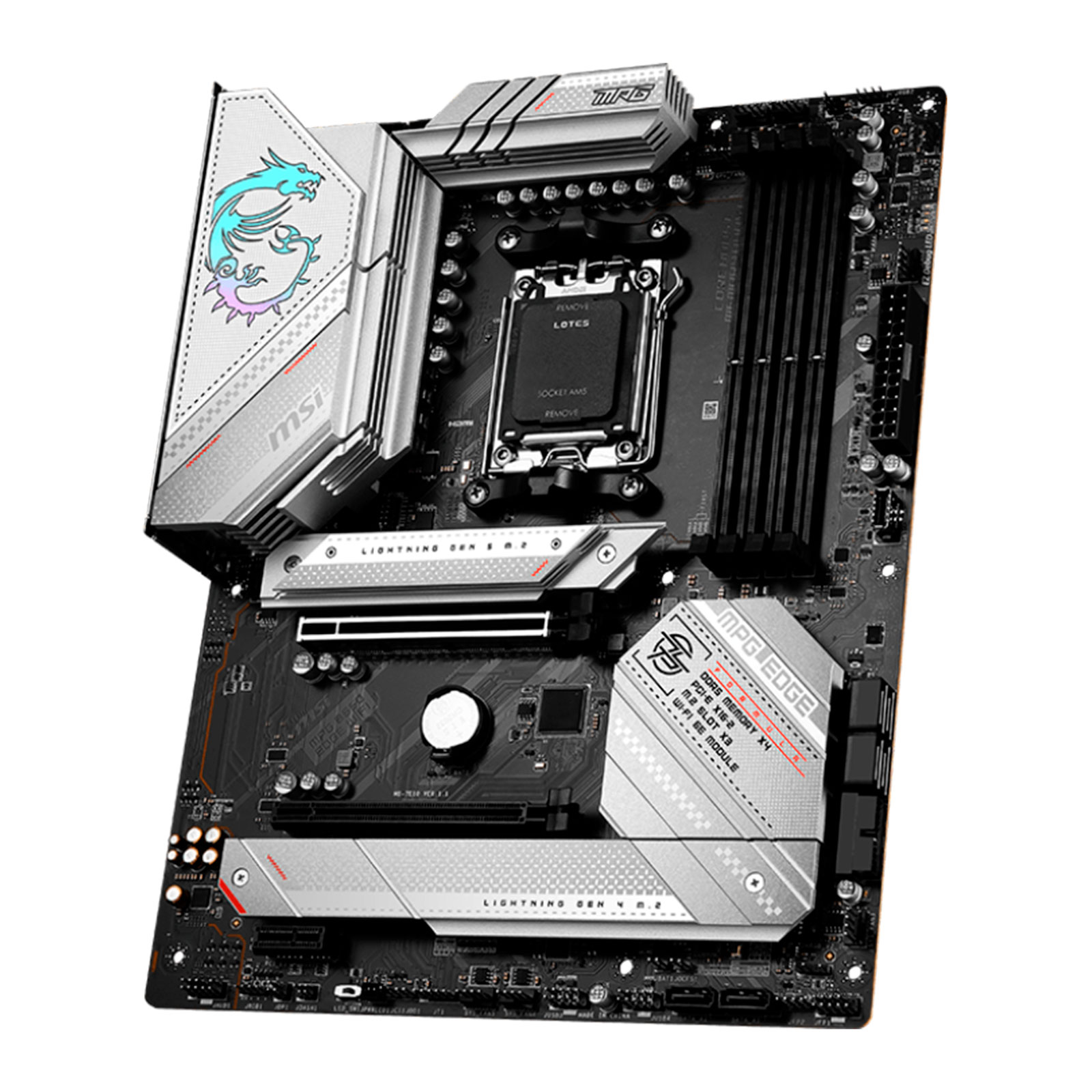

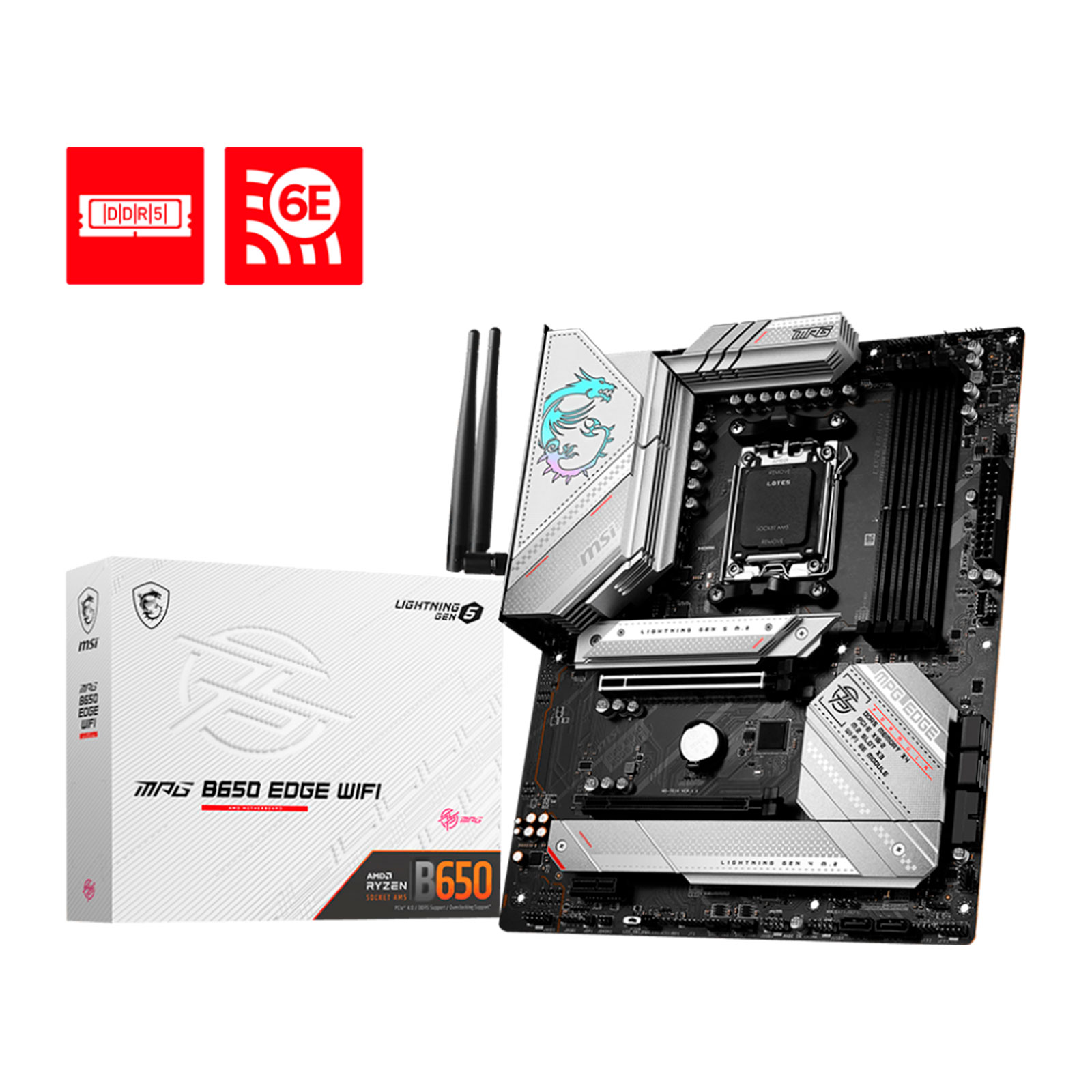

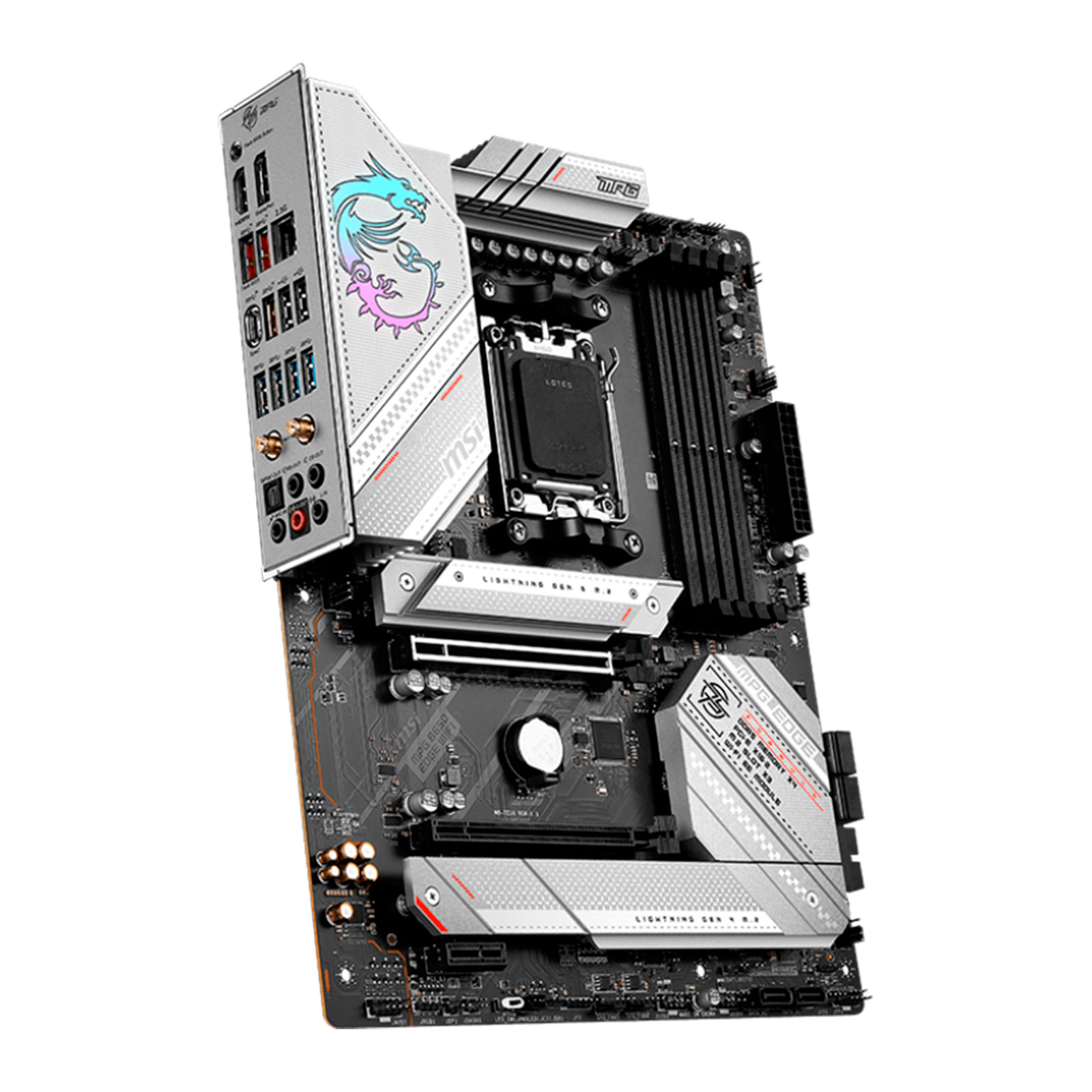

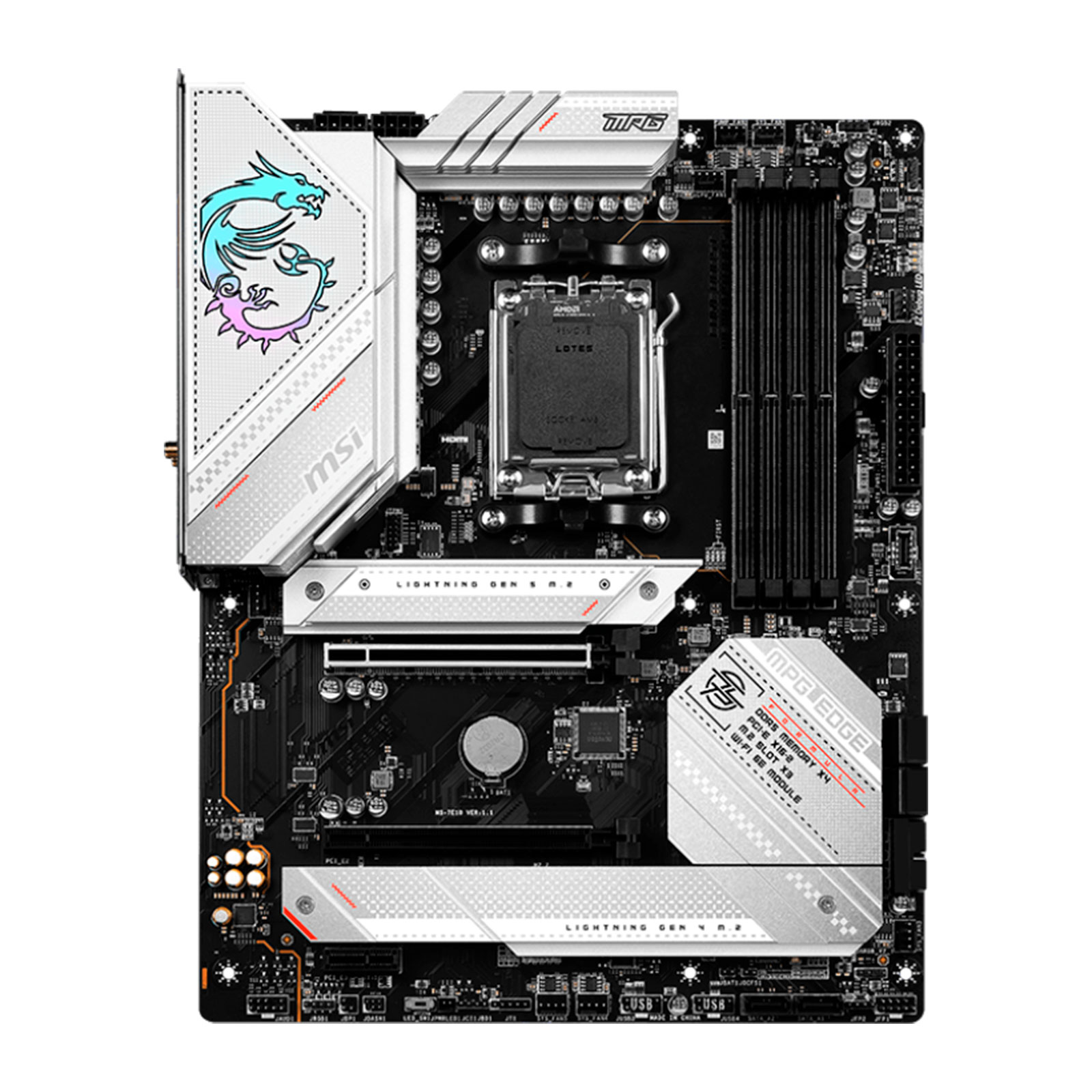

MSI GAMING MPG B650 EDGE WIFI
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+MHz (OC)
- Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2×2
- DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
$279 exc. VAT
LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory.
Combines with dedicated SMT welding process and MSI Memory Boost technology,
MPG B650 EDGE WIFI is ready to deliver the world class memory performance.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
CHIPSET AMD B650
CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 2x PCI-E x16 slot
• Supports x16/x2 (For Ryzen™ 7000 Series processors)
• Supports x8/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4/x2 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.

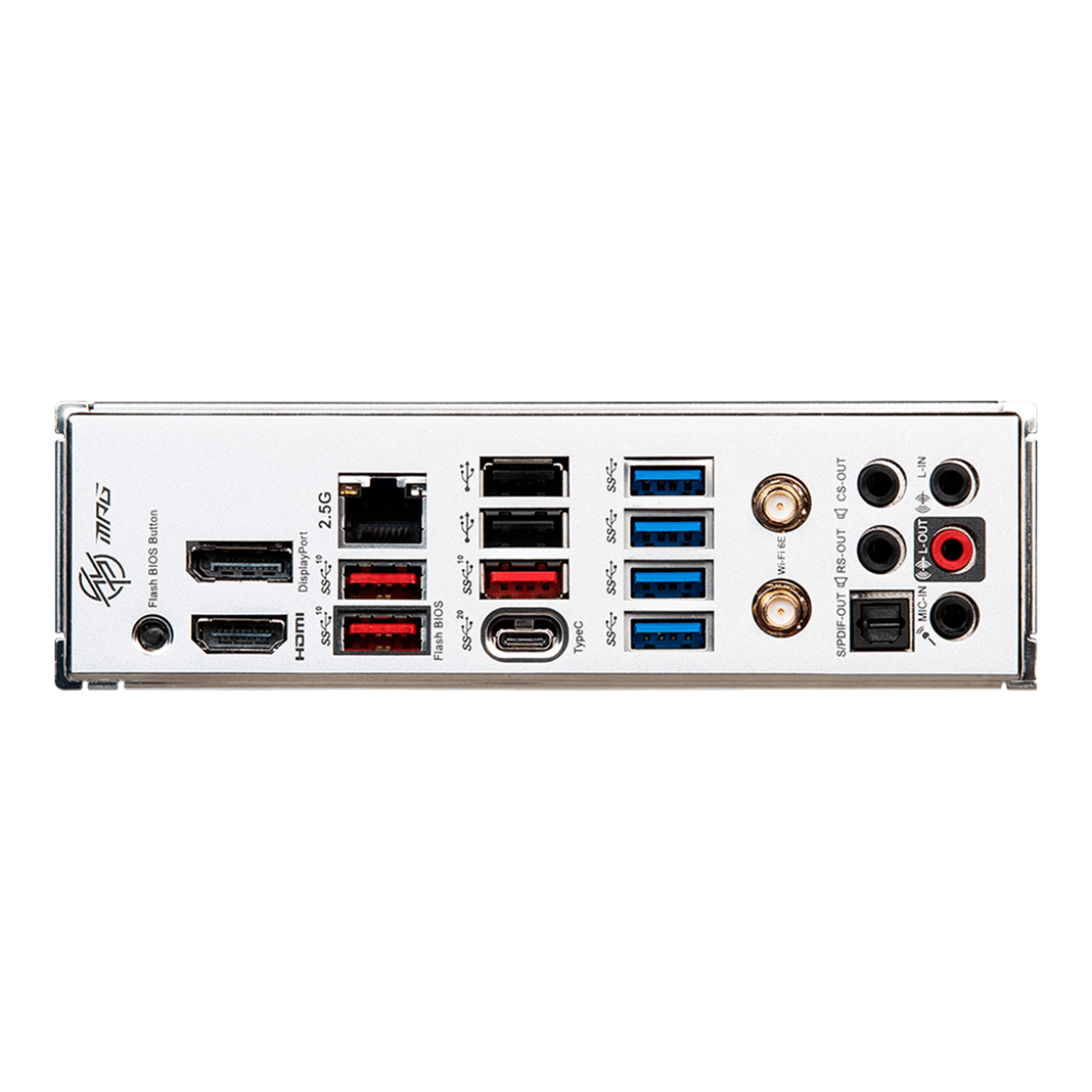

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
