VENTUS offers a performance-focused design that maintains the essentials to accomplish any task.
The combination of a trusted two-fan arrangement placed in an industrial design
rigid design allows this sharp-looking graphics card to fit into any construction.
REINFORCING BACK PLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance spinning.
The fan blades alternate between traditional blades and
dispersion that focus and accelerate airflow to the heat sink.
TRACES OF BRILLIANCE
CUSTOM PCB DESIGN
Not all circuit boards are the same. A custom PCB design provides
increased reliability and a reinforced power circuit to push the board to the limit.

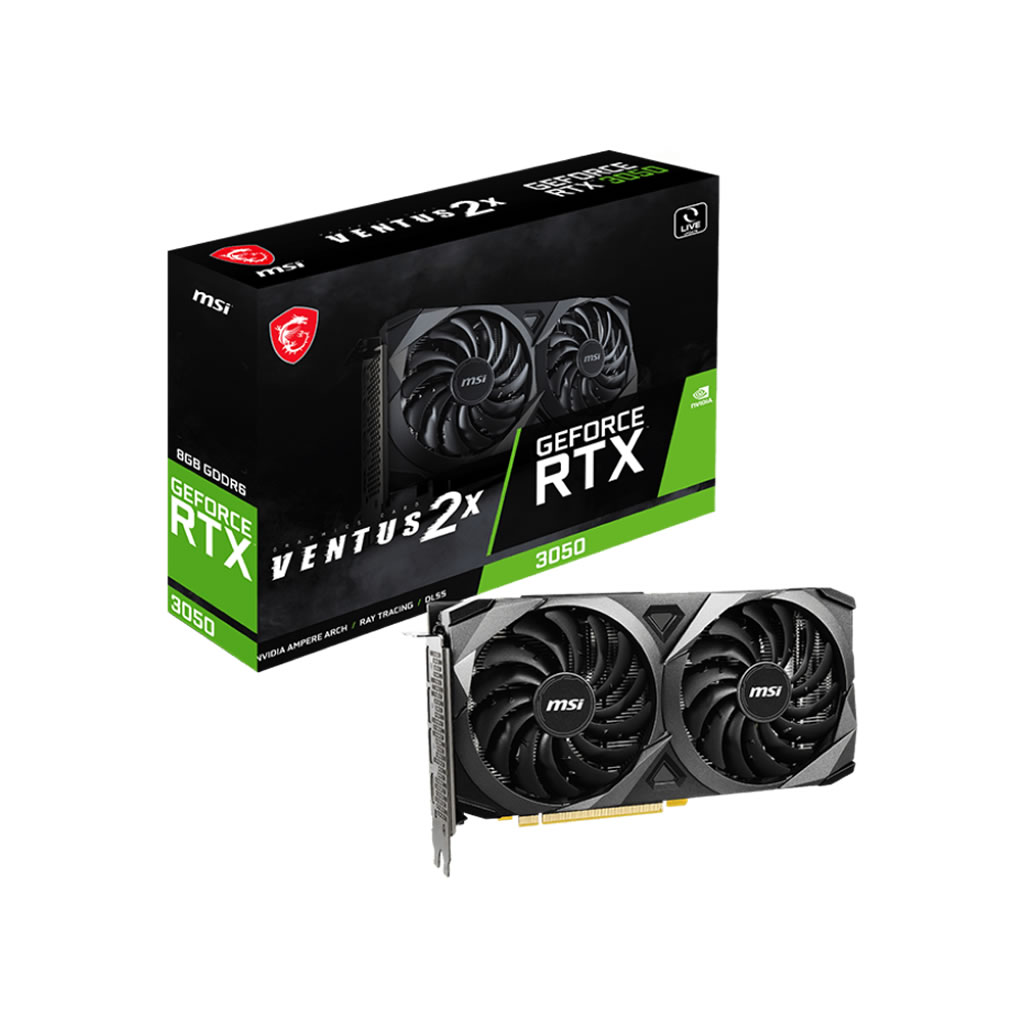

- GeForce RTX™ 3050 VENTUS 2X 8G MODEL NAME
- NUCLES 2560 Units
- 8GB GDDR6 MEMORY
- MEMORY BUS 128 bits
- POWER CONNECTORS 8 pins x 1
- RECOMMENDED POWER SUPPLY 550W
- NVIDIA® GeForce RTX™ 3050 GRAPHICS ENGINE
- PCI Express® Gen 4.0 x8 AUTOBUS STANDARD
- CARD DIMENSION (MM) 235x124x42mm
- DIRECTX 12 API VERSION SUPPORT
- NUCLEAR CLOCK Pulse: 1777 MHz
- MEMORY SPEED 14 Gb/s
- MAXIMUM SCREENS 4
- G-SYNC™ TECHNOLOGY
- ADAPTIVE VERTICAL SYNCHRONIZATION
- PRODUCTION
- HDCP SUPPORT
- POWER CONSUMPTION (W) 130W
- MAXIMUM DIGITAL RESOLUTION 7680×4320 DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
- SUPPORTED VERSION OF OPENGL
- WEIGHT 661 grams / 1070 grams 4.6
