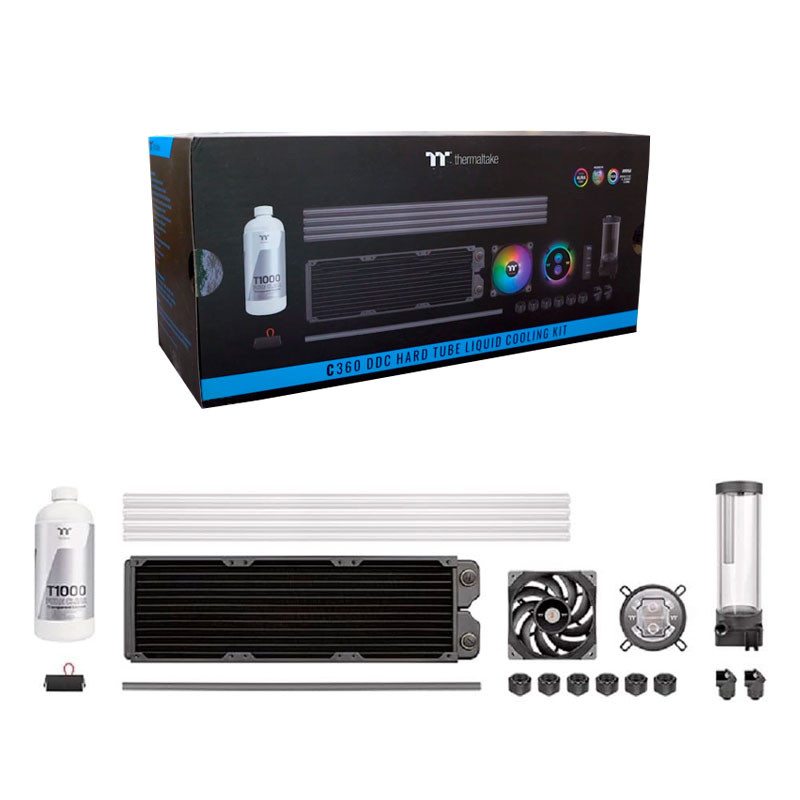

Pacific TOUGH C360 DDC Hard Tube Liquid Cooling Kit

Pacific TOUGH C360 DDC Rigid Tube Liquid Cooling Kit

The Pacific TOUGH C360 kit contains a non-RGB Pacific W7 block and a Pacific PR22-DDC
pump and reservoir combo for a minimalist, non-RGB rig. The package includes three
TOUGHFAN 12 fans and a copper radiator, delivering high-end cooling performance.

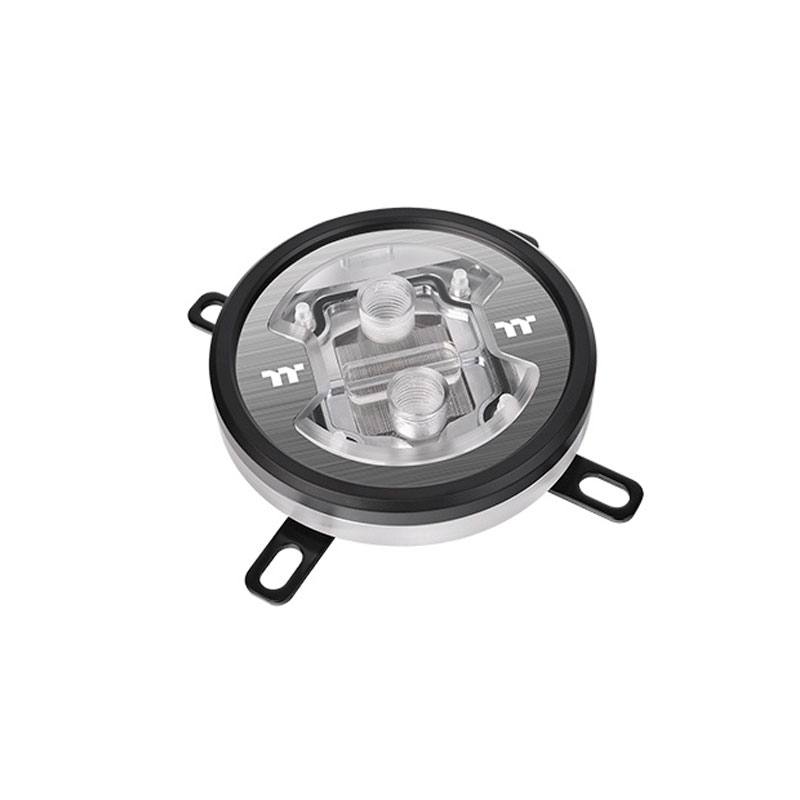

Pacific W7 block without RGB

The non-RGB Pacific W7 block is a variant of Thermaltake’s Pacific W7 Plus water block,
which has the same transparent water block design that allows users to display the color of the coolant.
Coupled with the anti-corrosive copper base and 0.15mm internal fin structure,
the Pacific W7 RGB-free water block can offer excellent cooling experience to users.

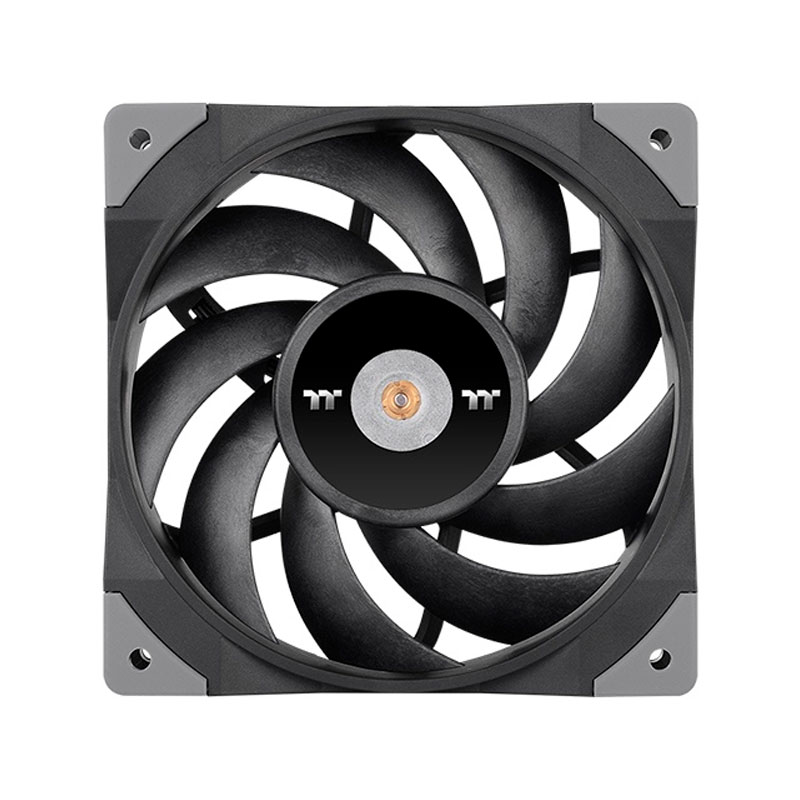

TOUGHFAN 12 Included

The kit comes with three TOUGHFAN 12 fans, providing a fan spin speed of up to 2000 RPM,
ensuring the best cooling results for your liquid cooling system.

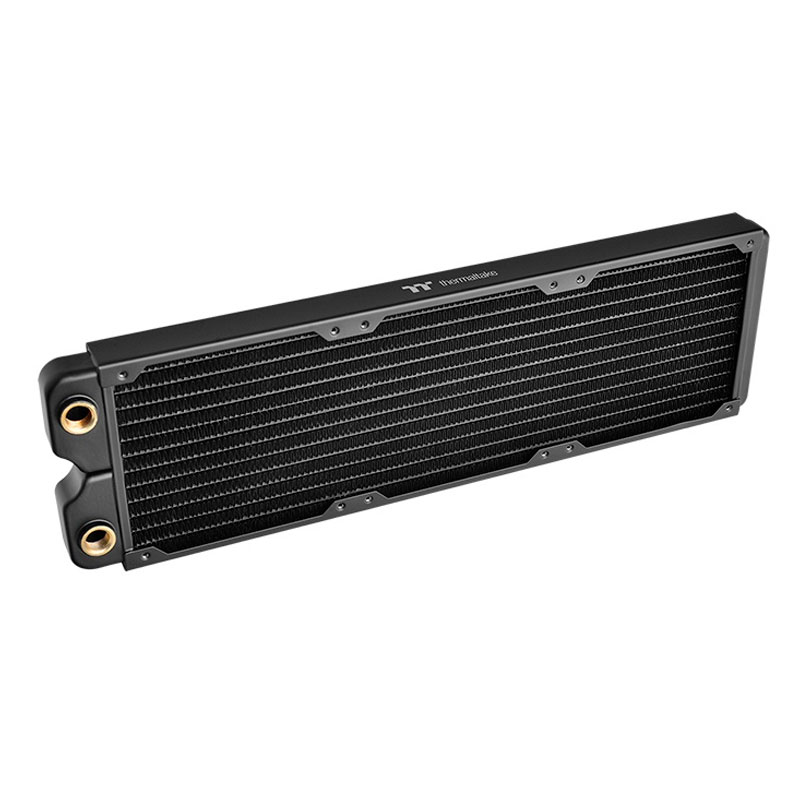

Thermaltake Pacific C360 Radiator

The high-performance 360mm slim copper radiator, with high-density copper fin design, and brass reservoir.
Built for 120mm high static pressure fans, the radiator is manufactured from premium materials that provide exceptional performance,
unmatched reliability. The unique stainless steel side panels ensure durability, as well as reducing the weight of the radiator.
The integrated G1/4″ threads facilitate installation, while the rigid connections guarantee tightness measurements.
With an ideal mounting, adjustment and flow configuration.

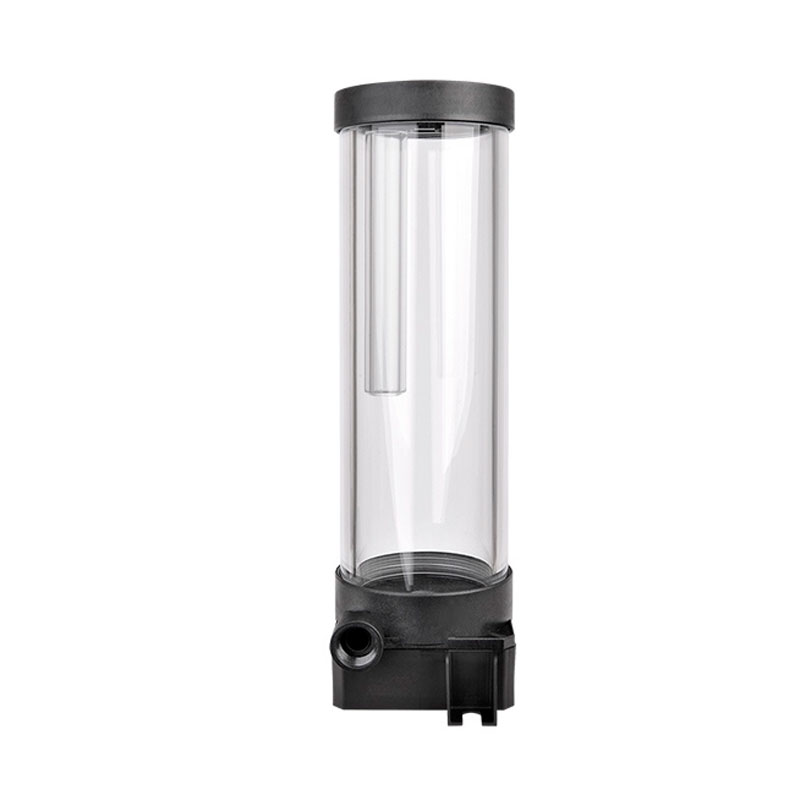

Pacific PR22-DDC Pump and Reservoir Combo

The combo offers exceptional performance, the reservoir is 210 mm in length and 300 ml in capacity,
and the DDC pump speed is 4600 RPM. The PR22-DDC is manufactured from high quality
PPS and PMMA materials to provide a crystal clear, high performance and long lasting solution.

T1000 Transparent Coolant – Pure Clear

Thermaltake T1000 series is designed with the latest TT formula to be used as an anti-corrosion
protection fluid and heat transfer medium for PC liquid cooling.

Pacific C-Pro G1/4 PETG 16mm OD Compression Fitting – Black

The compression fittings, which are chrome plated, come with four special rubber O-rings,
with a leak-free design and a patented structure for ultimate loop management.
Six compression fittings are included in the kit.

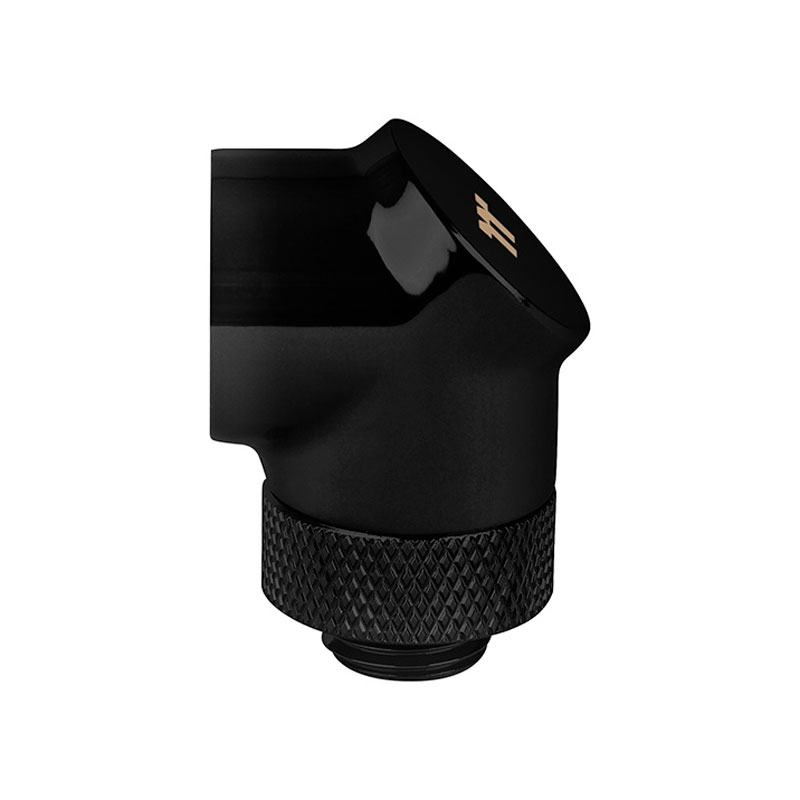

Pacific G1/4 90 Degree Adapter – Black

Finished in black copper, the Pacific G1/4 90-degree adapter has a 360-degree swivel design
and consists of two sealed O-rings with the Tt logo printed on the side,
allowing users to redirect fittings at an angle of 90 degrees for easy tube routing.

Tubo V-Tubler PETG 16mm OD 500mm

V-Tubler PETG Tube16mm OD are a set of tubes made of transparent glass-like acrylic
with superior strength and thicker tube wall for safer operation of liquid cooling system.

DIMENSIONS
520 (L) x 200 (W) x 232 (H)
COMPATIBILITY
Intel LGA 2066/2011/1700/1366/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
COMPONENTS DIMENSIONS
Pump & Tank: 86.5 (L) x 62 (W) x 210.1 (H)
Copper Radiator: 399 (L) x 119 (W) x 29.5 (H)
TUBE DIMENSIONS
OD : 16mm , ID : 12mm
FAN SPECS
PWM 500~2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
COOLANT
T1000 Coolant Pure Clear

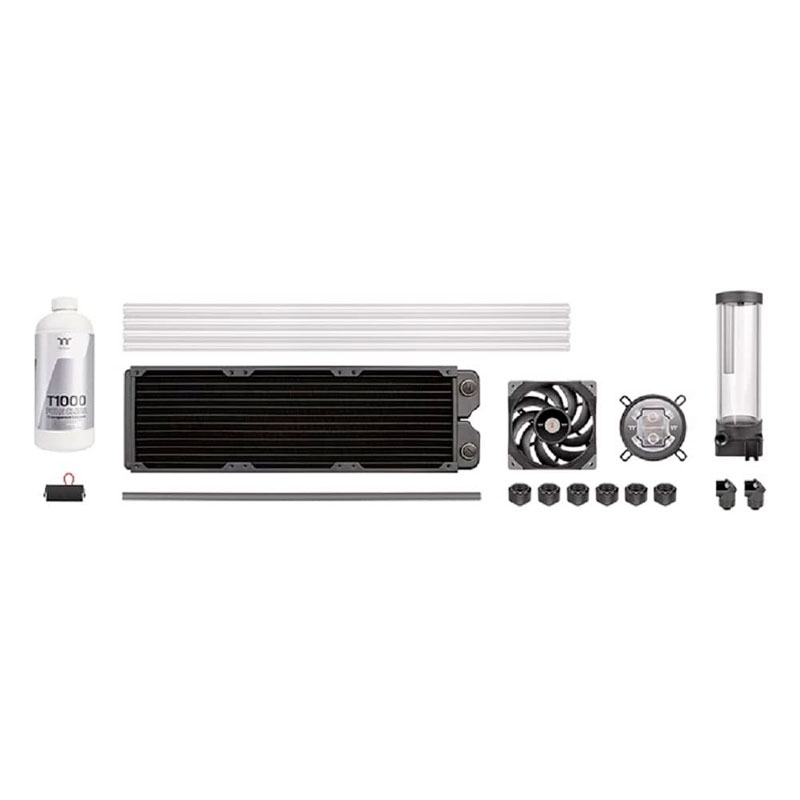

KIT CONTENTS
CPU Water Block
– Pacific W7 Non RGB CPU Water Block x1

Pump/Tan
– Pacific PR22-DDC combo Pump/Tan x1

Copper Radiator
– Pacific C360 Radiator 29.5 (H) x 119 (W) x 399 (L) mm x1

Fan
– Fan for Radiator TOUGHFAN 12 x3

Fittings
– Pacific C-Pro G14 PETG 16mm OD Compression – Black x6
– Adapter Pacific G1/4 90 Degrees – Black x2

Coolant
– Thermaltake T1000 Coolant Pure Clear x1

Tube
– V-Tubler PETG Tube 16mm OD 500mm x 8 Accessory
– Intel and AMD universal backplate and mounting kit
– 24pin ATX bridge x1
– Thermaltake thermal paste x1
– Silicone insert x1
