Develop Your Creativity
LEGEND 850 supports the latest PCIe Gen4 x4 interface, which complies with the NVMe 1.4 standard.
It offers excellent read and write performance, greater device connectivity,
and compatibility with the latest Intel and AMD platforms. Whether on a desktop PC or laptop, advance your creativity.
Unlock Inspiration
LEGEND 850 provides a sequential read and write speed of 5,000/4,500 MB per second,
which is up to 3 times faster than a standard PCIe Gen3 solid drive (SSD) and
9 times faster than a SATA solid drive (SSD). It is backward compatible
with PCIe 3.0 and is made to create both 3D graphics and video!
Works with PS5
LEGEND 850 supports PCIe 4.0 and works with PS5 consoles as expanded storage.
Its size not only fits the slot design, but also provides smooth and lag-free gameplay.
*This product has been tested and verified as compatible with PS5. Actual speed may vary depending on hardware and software configurations.
**For more information on compatibility, click here.
Imagine the possibilities
LEGEND 850 features an SLC cache and a host memory buffer to provide advantages in system loading
and data caching. It features 4K random read/write up to 400K/550K IOPS for effortless multitasking.
Great and Fresh

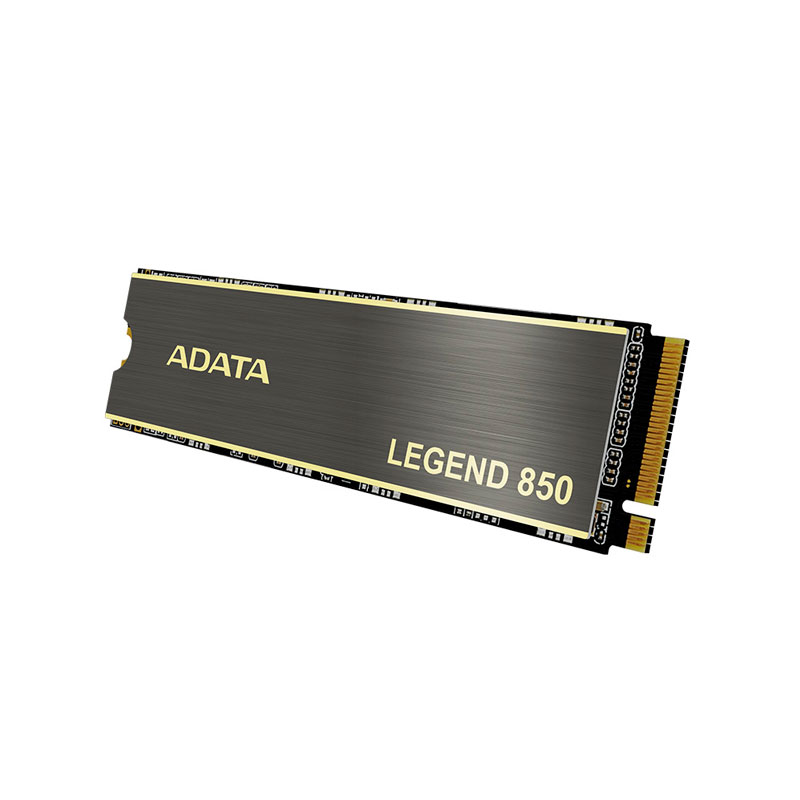

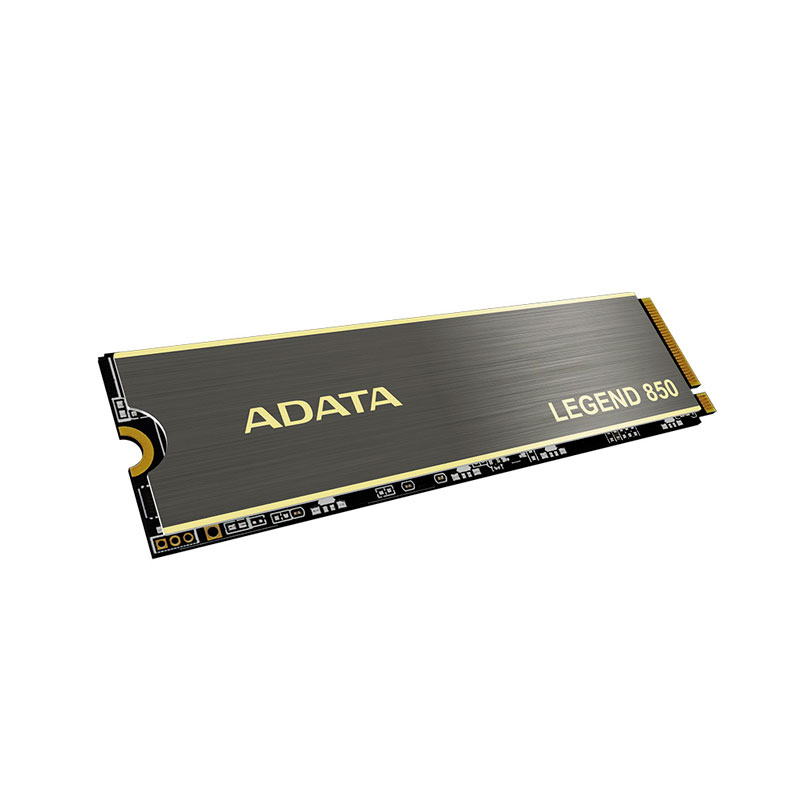

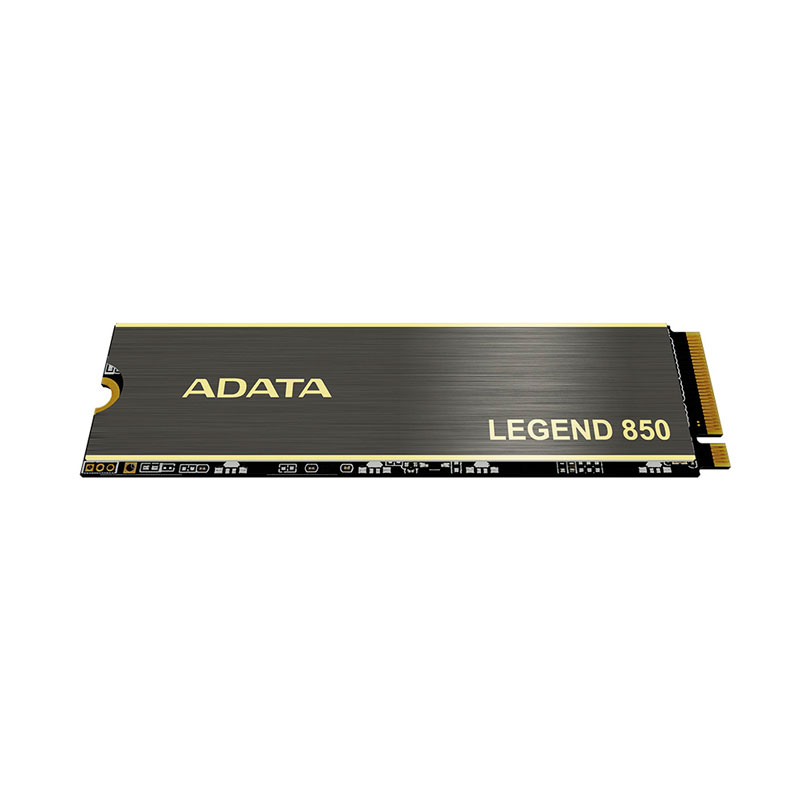

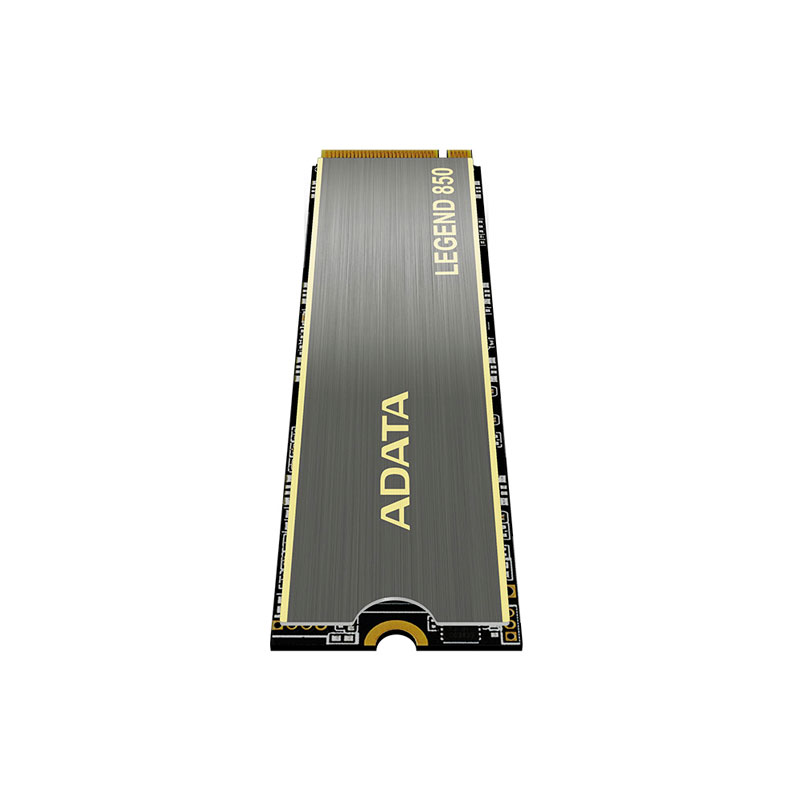

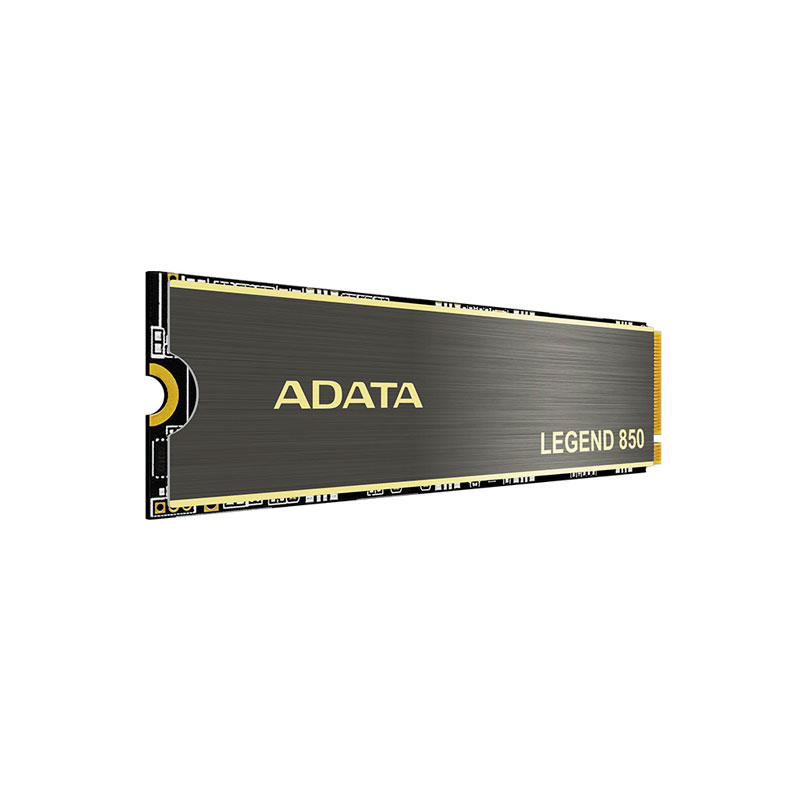

The LEGEND 850’s black heatsink design, with bronze trim and sandblasted surfaces,
looks great and keeps everything under control and at the right temperature.
Through advanced surface treatment, it dissipates heat incredibly effectively by reducing temperature.
Software SSD ToolBox
ADATA SSD Toolbox allows you to monitor drive health and remaining life through self-monitoring,
analysis and reporting technology (SMART). It also allows you to track current operating temperature,
capacity and space total used, as well as keeping up to date with firmware.
Ability 1TB
Form factor M.2 2280
NAND Flash NAND 3D
Controller SMI SM2269XT
Dimensions (L x W x H) 80mm x 22mm x 3.13mm/3.15in x 0.87in x 0.13in (with heatsink)
80mm x 22mm x 2.15mm/3.15in x 0.87in x 0.09 inch (without heatsink)
Weight With heat sink: (512GB/1TB) 5g / 0.17oz; (2 TB) 8g / 0.28oz
Without heatsink: (512 GB/1 TB) 4g / 0.14oz; (2 TB) 7g/0.24oz
Interface PCIe Gen4 x4
Sequential reading (max) Up to 5,000MB/s (PC/Laptop)*,
up to 5,000MB/s (PS5)
Sequential write (max) Up to 4500MB/s*
4KB Random Read IOPS (Max) Up to 400K*
4KB Random Write IOPS (Max) Up to 550K*
Operating temperature 0 °C – 70 °C
Storage temperature -40°C – 85°C
Shock resistance 1500G / 0,5ms
MTBF 1,500,000 hours
Terabytes written (TBW) 2000TB
