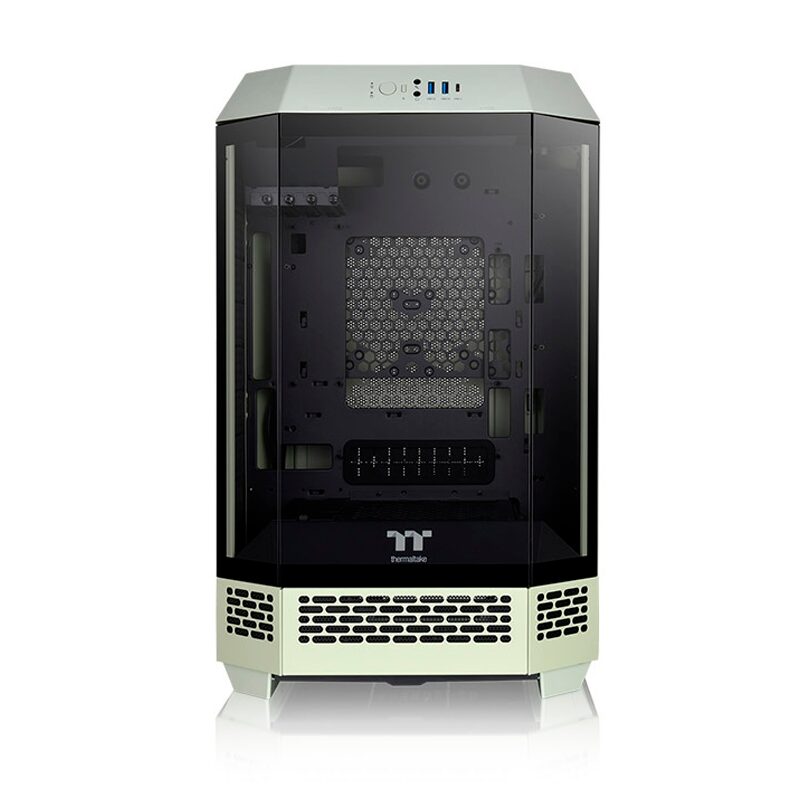

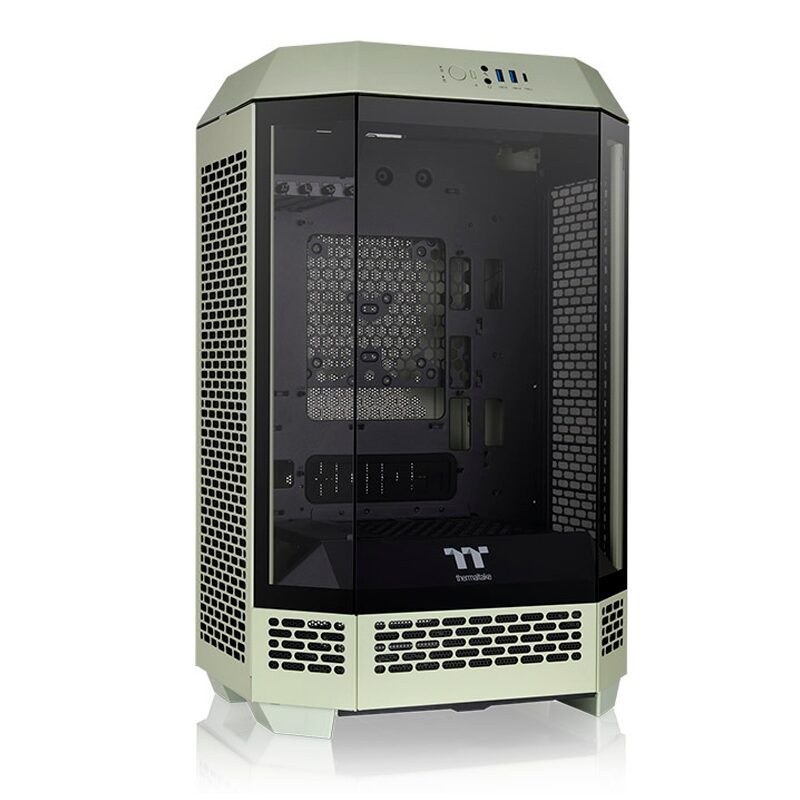

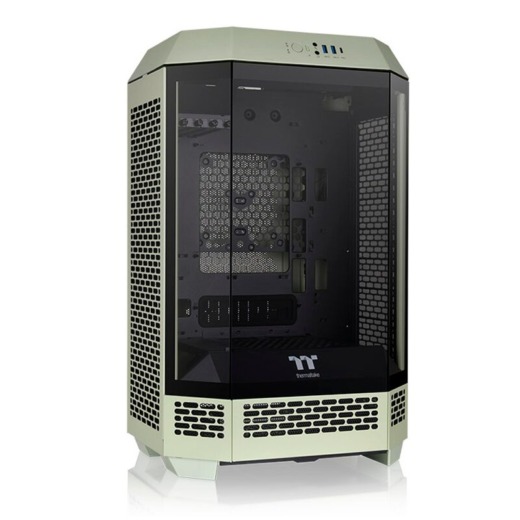

The Tower 300 Matcha Green Micro Tower Chassis

The Legacy Continues

As the newest edition of the Tower Series, the Tower 300 Bumblebee inherited the classic vertical design
but was updated with a new octagonal prism shape to meet today’s aesthetics. It may be small but it sure can pack
a punch with support for up to 400mm GPUs, 420mm AIOs, and up to a 220mm PSU.
If cooling is a concern then the Tower 300 Bumblebee has you covered with being able to accommodate up to eight
120mm or 140mm fans. Also did someone say upgrades, well the Tower 300 Bumblebee has optional 3.9”
LCD screen kits as well as Horizontal Chassis stands sold separately so your build comes out exactly how you want it to.

Classic Vertical Body Design

The Tower series has been iconic for its vertical body designs and the Tower 300 Bumblebee follows in those footsteps.
However, with its new octagonal prism design we were able to not only increase the viewing areas
for the components inside but also allow for better airflow and bigger cooling options too.
This gives the Tower 300 Bumblebee the classic looks of its predecessors but with even better performance and updated styling.

Maximum Radiator Support

Supporting up to a 420mm AIO radiator on the right side of the case the Tower 300 Bumblebee is ready for some
of the most demanding hardware. And to assist that AIO with optimal chassis temperature is the ability to mount up to eight 120mm or 140mm fans.

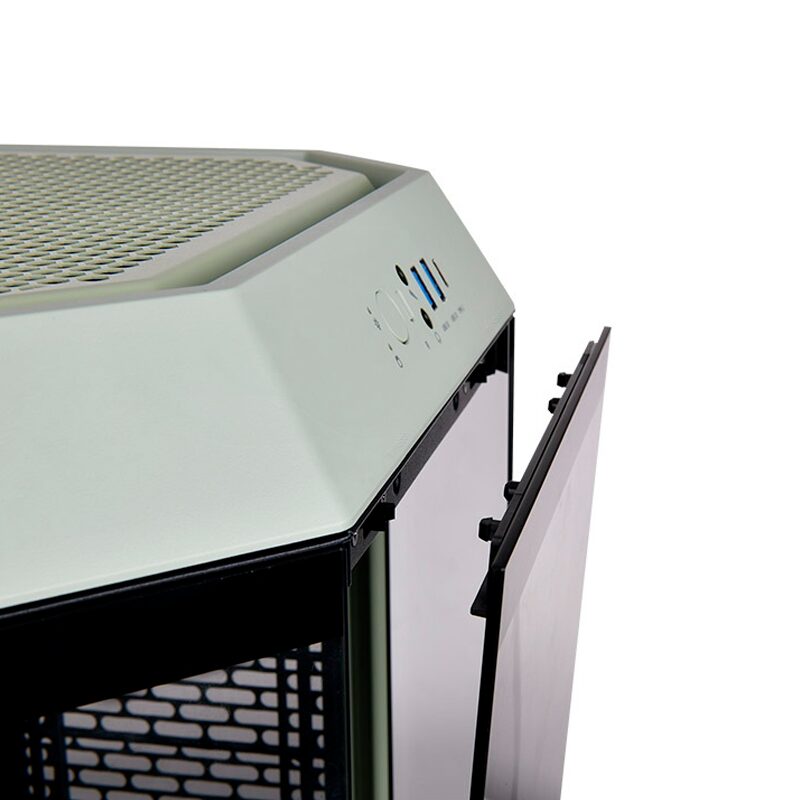

Tool Free Panels for Easy Access

The Tower 300 Bumblebee features three 3mm tempered glass panels on the front
and two perforated panels on each side. All are easily removable without tools.

Two CT140 Fans Pre-Installed

The Tower 300 Bumblebee features two 140mm PWM fans on the top to provide good cooling performance.

Easy Installation

The Tower 300 Bumblebee comes with a dedicated fan/AIO bracket on the right side of the chassis
and is fully removable for easy installation. No more awkwardly holding fans and AIOs to mount to a chassis,
just removed the bracket and mount your choice of fans or AIO and then easily remount the bracket into the chassis and you are all set to go.

Intake and Exhaust

Classic to the vertical body design the Tower 300 Bumblebee does well when it comes to staying cool.
With dedicated intakes positioned to bring in cold fresh air and exhausts set up to vent the air the chassis
has already processed providing optimal temperatures at all times.

Handy I/O Ports

One USB 3.2 (Gen 2) Type-C and two USB 3.0 ports are placed on the top panel to grant direct access when needed.

P/N – CA-1Y4-00S4WN-00
SERIES – The Tower
CASE TYPE – Micro Tower
DIMENSIONS – 551 x 342 x 281 mm (22.5 x 14 x 11.5 inch)
WEIGHT – 8.3 kg / 18.3 lbs.
SIDE PANEL – 3mm Tempered Glass x 3
COLOR – Matcha Green
MATERIAL – SPCC

COOLING SYSTEM
Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2
EXPANSION SLOTS – 4
MOTHERBOARD – 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O PORT – USB 3.2 (Gen 2) Type-C x 1
PSU – Standard PS2 PSU (optional)

FAN SUPPORT
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm

Power Cover:
1 x 120mm
1 x 140mm

RADIATOR SUPPORT
Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm

CLEARANCE
CPU cooler height limitation: 210mm
VGA length limitation: 280mm(With power cover) 400mm(Without power cover)
PSU length limitation: 220mm
