THERMAL GRIZZLY CONTACT FRAME INTEL 1700
- OPTIMIZED COOLING PERFORMANCE – Designed to improve the contact pressure, enhancing the cooling performance of CPU coolers and resulting in lower CPU temperatures
- EASY INSTALLATION – Quick and hassle-free installation process, making it simple to upgrade your CPU cooling performance in just a few steps
- PREMIUM MATERIALS – Made of anodized aluminum, ensuring durability and high product quality
- DESIGNED BY DER8AUER – Developed in collaboration with renowned overclocker Roman “der8auer” Hartung and manufactured in Berlin – 100% Made in Germany
- IMPROVED CONTACT – Special inner contour for optimal pressure distribution, preventing the concave curvature of the Integrated Heatspreader (IHS) and providing a larger contact area for more efficient heat dissipation
$30 exc. VAT

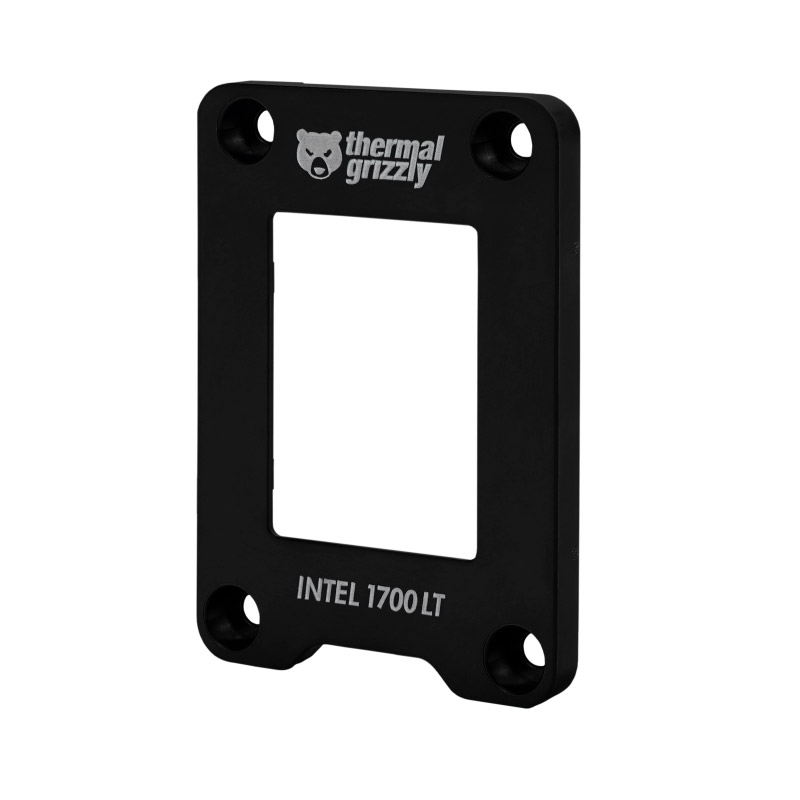

The Thermal Grizzly CPU Contact Frame Intel 1700 LT is the “Lite” version of the Intel 13th/14th Gen CPU Contact Frame and is manufactured by injection molding. The material used is an acrylonitrile-butadiene-styrene copolymer, which has a 15 percent glass fiber content for additional stability.
- Lower CPU temperatures
- Easy mounting
- Glass fiber reinforced ABS plastic
- Compatibility list online
The standard Integrated Loading Mechanism (ILM) has contact points located in the centre of the elongated CPU. Due to the resulting uneven contact pressure of the processor into the socket, the surface of the Integrated Heat Spreader (IHS) curves concavely. As a result, the base plate of the CPU cooler rests primarily on the edges of the IHS, so that the thermal “hotspot” in the middle of the CPU is not optimally covered.

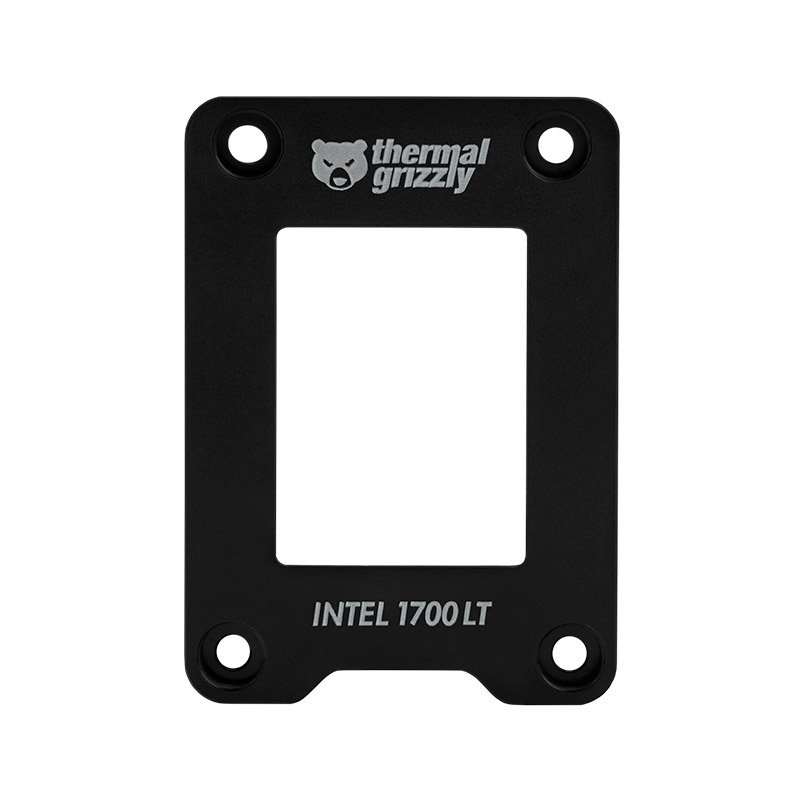

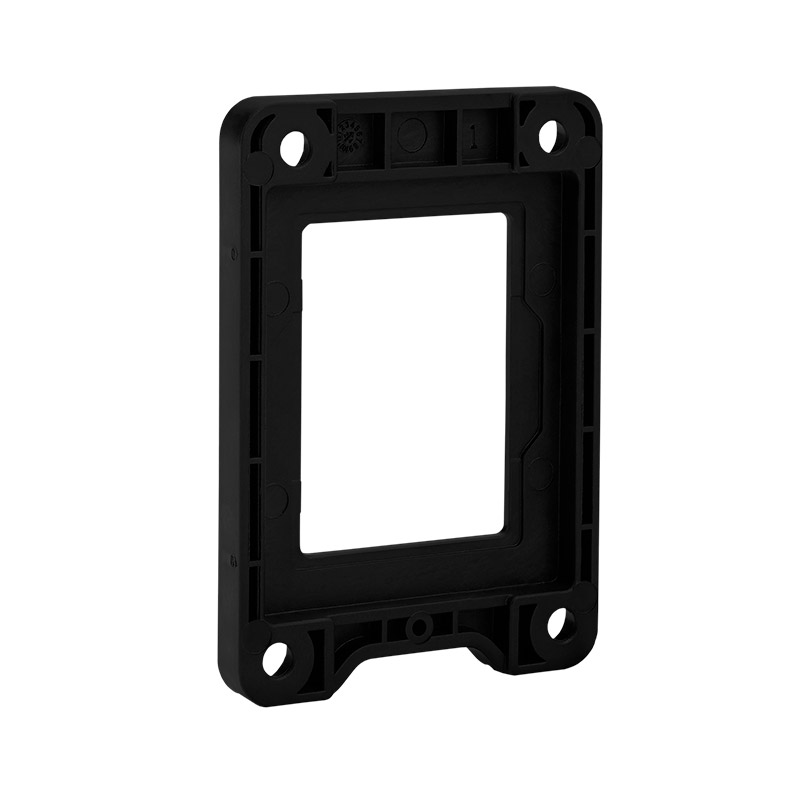

The CPU Contact Frame Intel 1700 LT has a special inner contour to shift the contact pressure from the centre of the CPU to the edges during assembly. This avoids the concave curvature of the IHS. This results in CPU coolers resting better on the processor and a larger contact surface to dissipate the CPU’s waste heat.
The installation of the Contact Frame is very simple and takes only a few steps. Depending on the CPU cooler and the CPU used, the temperatures of the processor can be noticeably reduced.
The CPU Contact Frame Intel 1700 LT is compatible with 12th, 13th and 14th generation processors for socket LGA1700. In addition, the frame is only compatible with CPUs whose Integrated Heat Spreader (IHS) has been ground down by no more than 0.2 millimetres. When mounting, make sure that there are no electronic components under the frame. This is especially important for mainboards with the Mini-ITX form factor.
Removing the mainboard’s Integrated Loading Mechanism (ILM) may invalidate the mainboard manufacturer’s warranty!

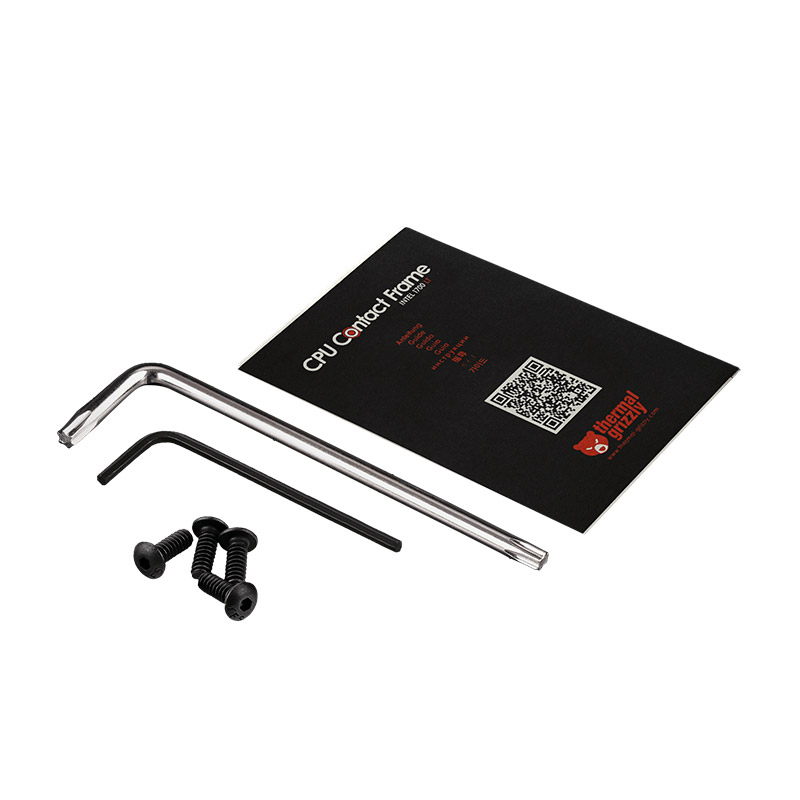

Scope of delivery:
- 1x CPU Contact Frame Intel 1700 LT
- 4x pan-head screws UNC thread 3/8″
- 1x hexagon socket wrench 5/64″
- 1x angle wrench Torx T20
