THERMALTAKE VIEW 170 GT ARGB Snow
- 3 x 120mm ARGB fans included.
- Supports up to 280mm radiator at top.
- I/O Ports: USB 3.0 x 2, HD Audio x 1.
- Max VGA Length: 340mm.
$83 exc. VAT
View 170 TG ARGB Micro Chassis

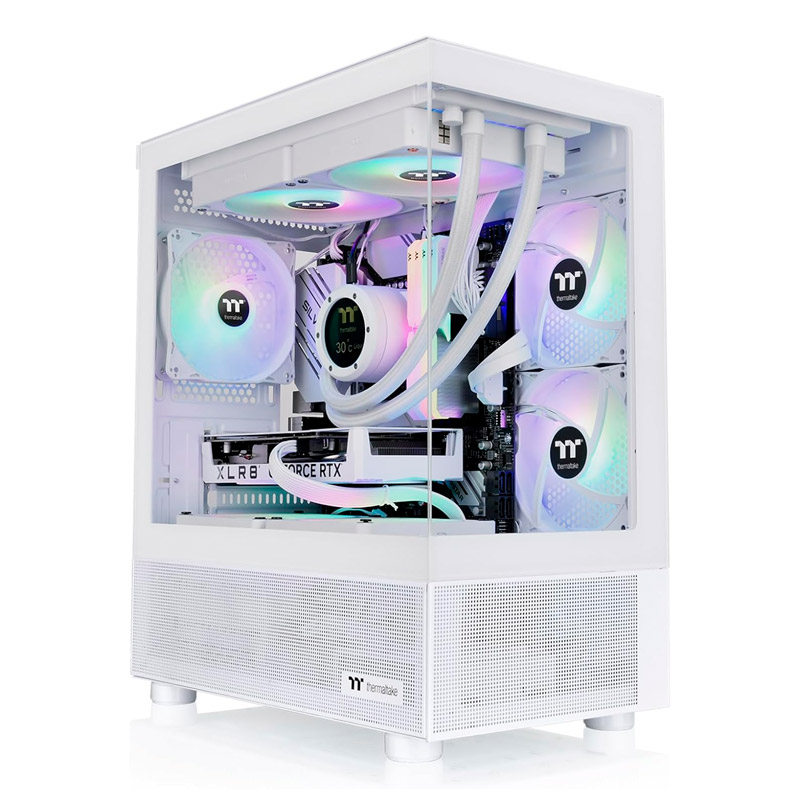

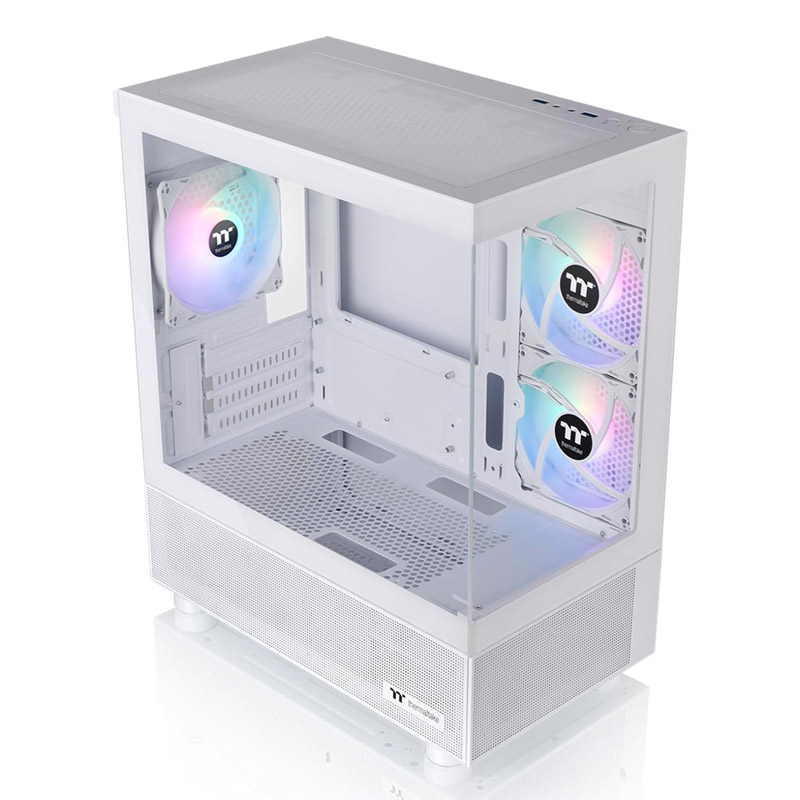

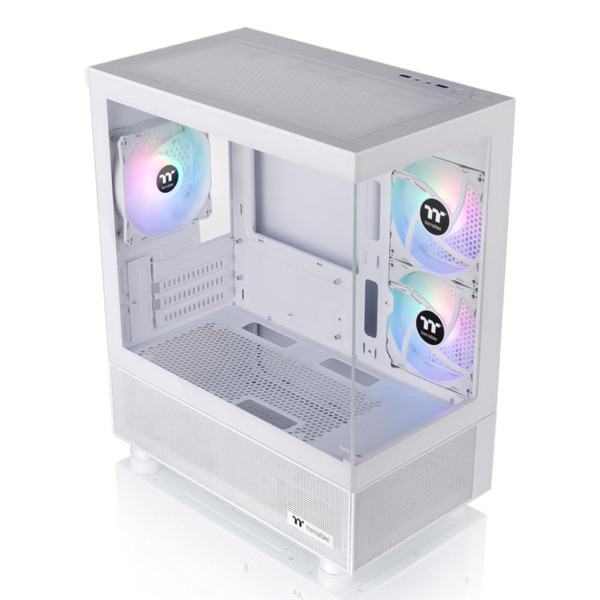

Built for amazing views, the View 170 TG ARGB Micro Chassis is an M-ATX case that features tempered glass front and left panels,
and comes with three Hydraulic Bearing 120mm ARGB Lite Fans pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 TG ARGB Micro Chassis.

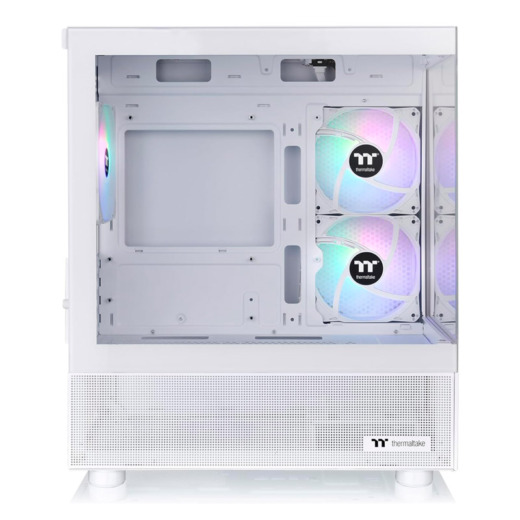

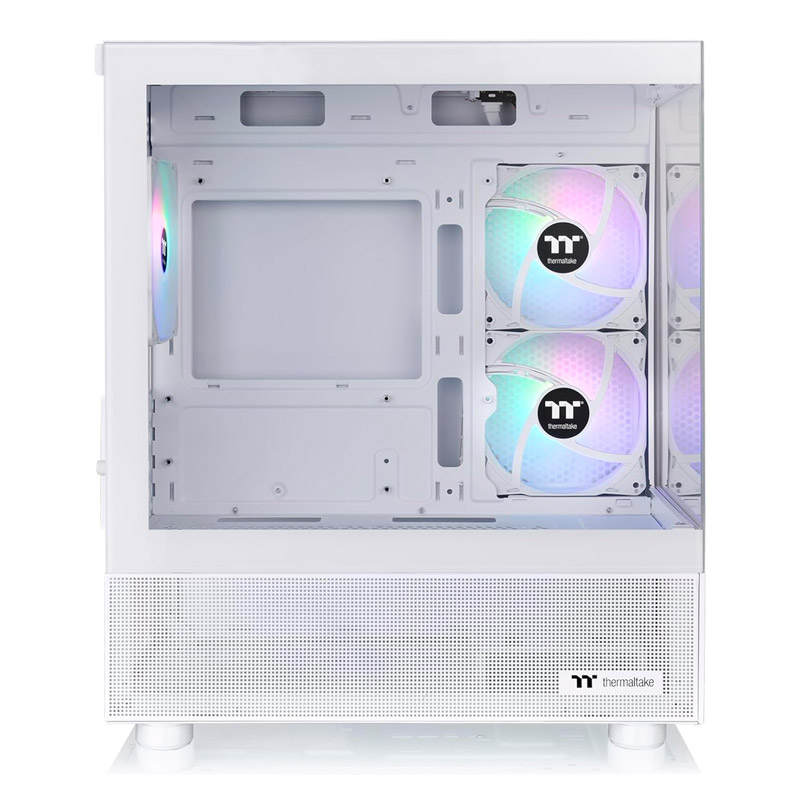

The View 170 TG ARGB Micro Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the motherboard side and the rear.
It’s fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
The series – View
Model – View 170 TG ARGB
BOX TYPE – Micro Case
DIMENSIONS (H x W x D) – 438 x 212 x 377.5 mm
(17.24 x 8.35 x 14.86 inch) – GRANDWEIGHT
6.35 kg / 14 lbs.
PANEL LATERAL
3mm Tempered Glass x 2
Color
White
Material
SPCC
COOLING SYSTEM

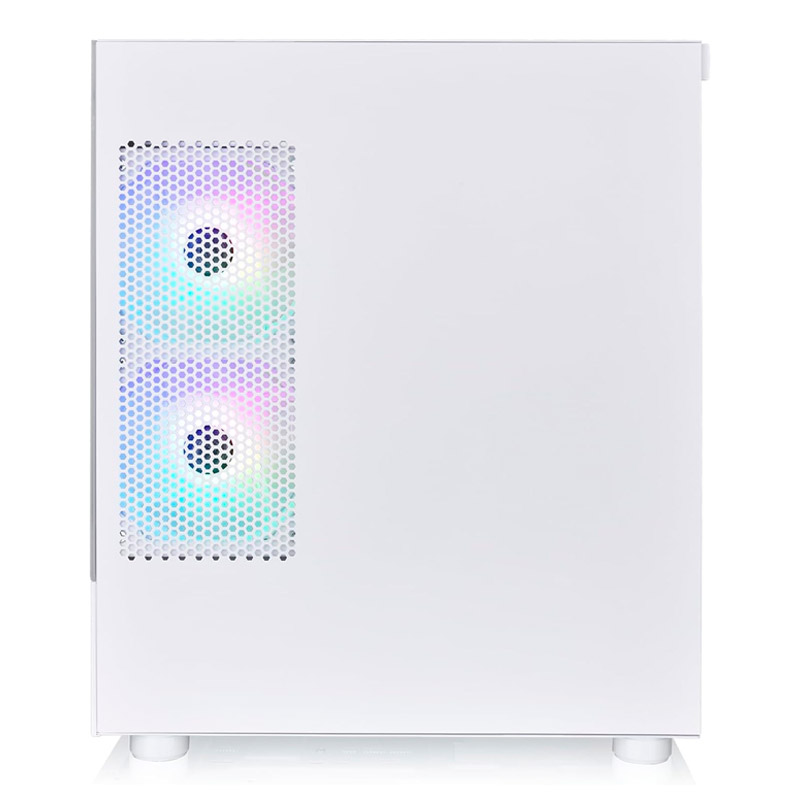

Right(intake):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

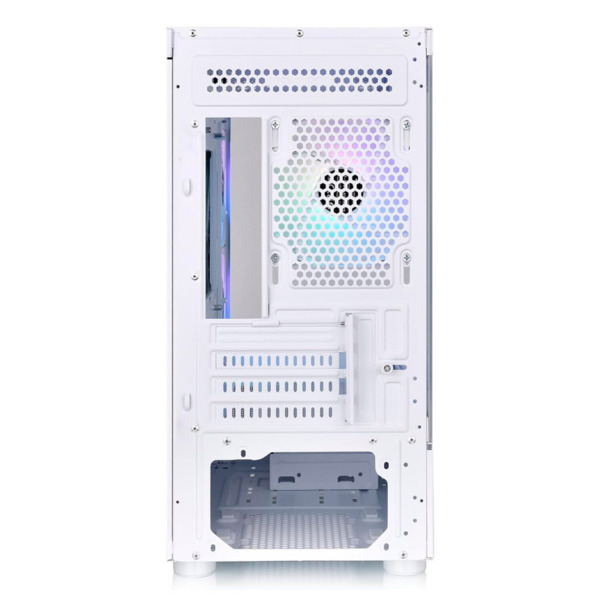

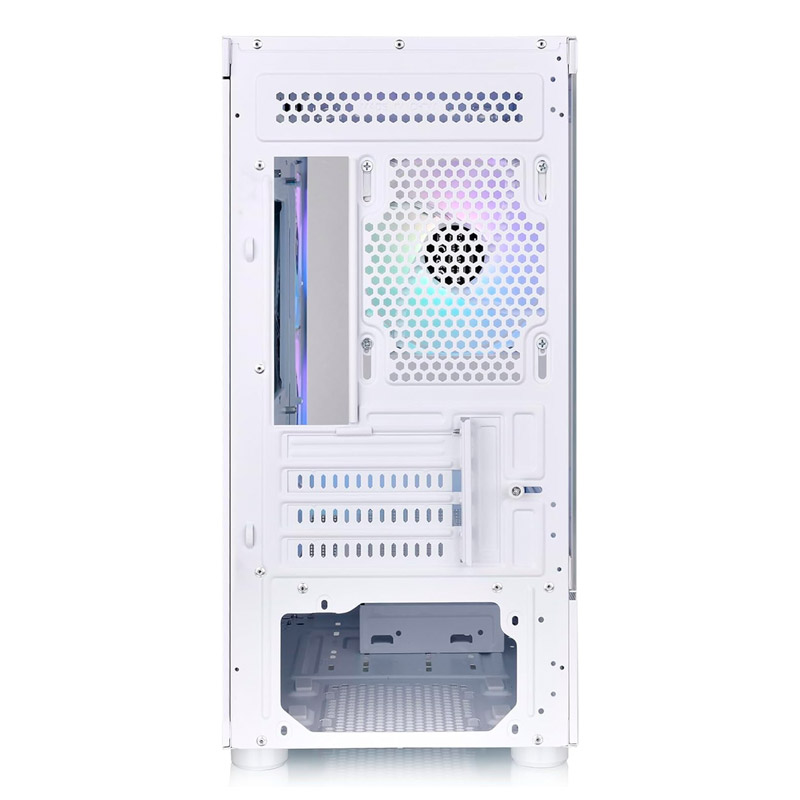

Rear(exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
EXPANSION BAYS
1 x 3.5”, 2 x 2.5”
EXPANSION SLOTS
4
MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O PORTS
USB 3.0 x 2, HD Audio x 1
POWER SUPPLY
Standard PS2 PSU (optional)
FAN COMPATIBILITY
Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right:
2 x 120mm, 1 x 120mm Rear: 1 x 120mm
Power Cover:
2 x 120mm, 1 x 120mm
RADIATOR COMPATIBILITY
Top:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
LIMITATIONS
CPU cooler max height: 160mm
VGA max length: 340mm
PSU max length: 180mm
