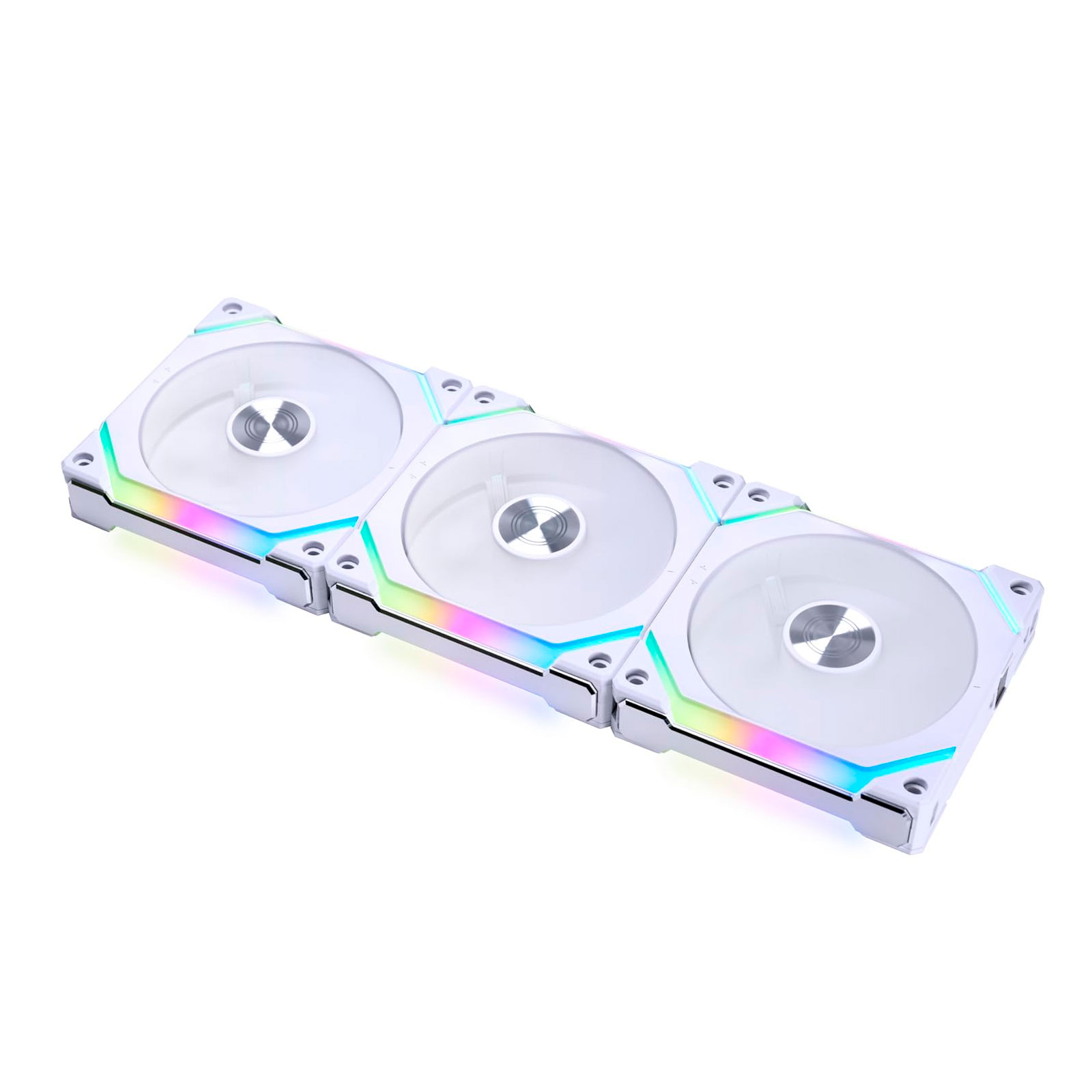

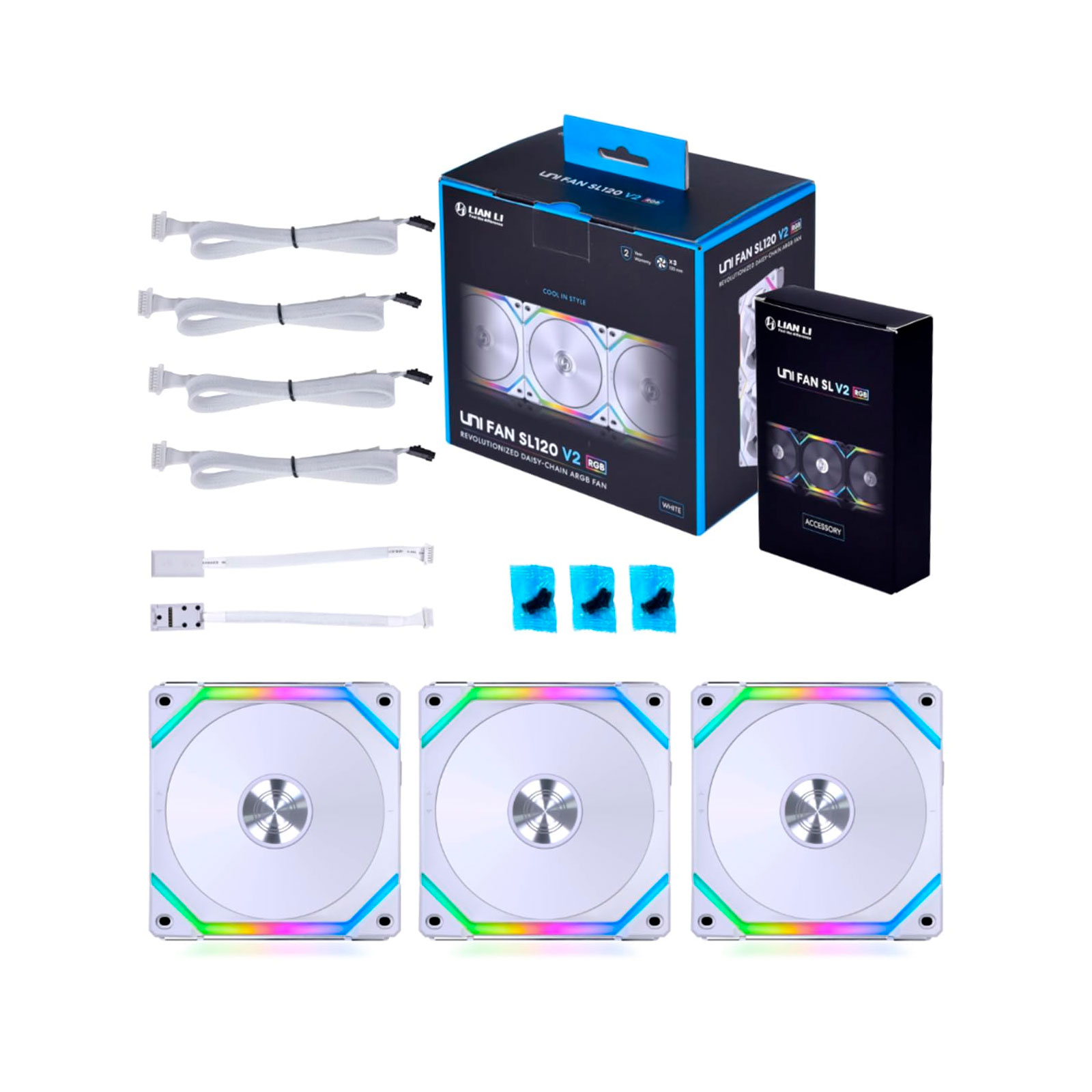

UNI FAN SL V2 ARGB 3FAN 120mm White Pack
- Improved daisy chain design to connect 2 clusters of fans.
- SL120 V2 fan frame thickness is 28mm to provide 10% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- Smoother side lighting for a better aesthetic.
- Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
$100 exc. VAT
UPGRADED MODULARITY

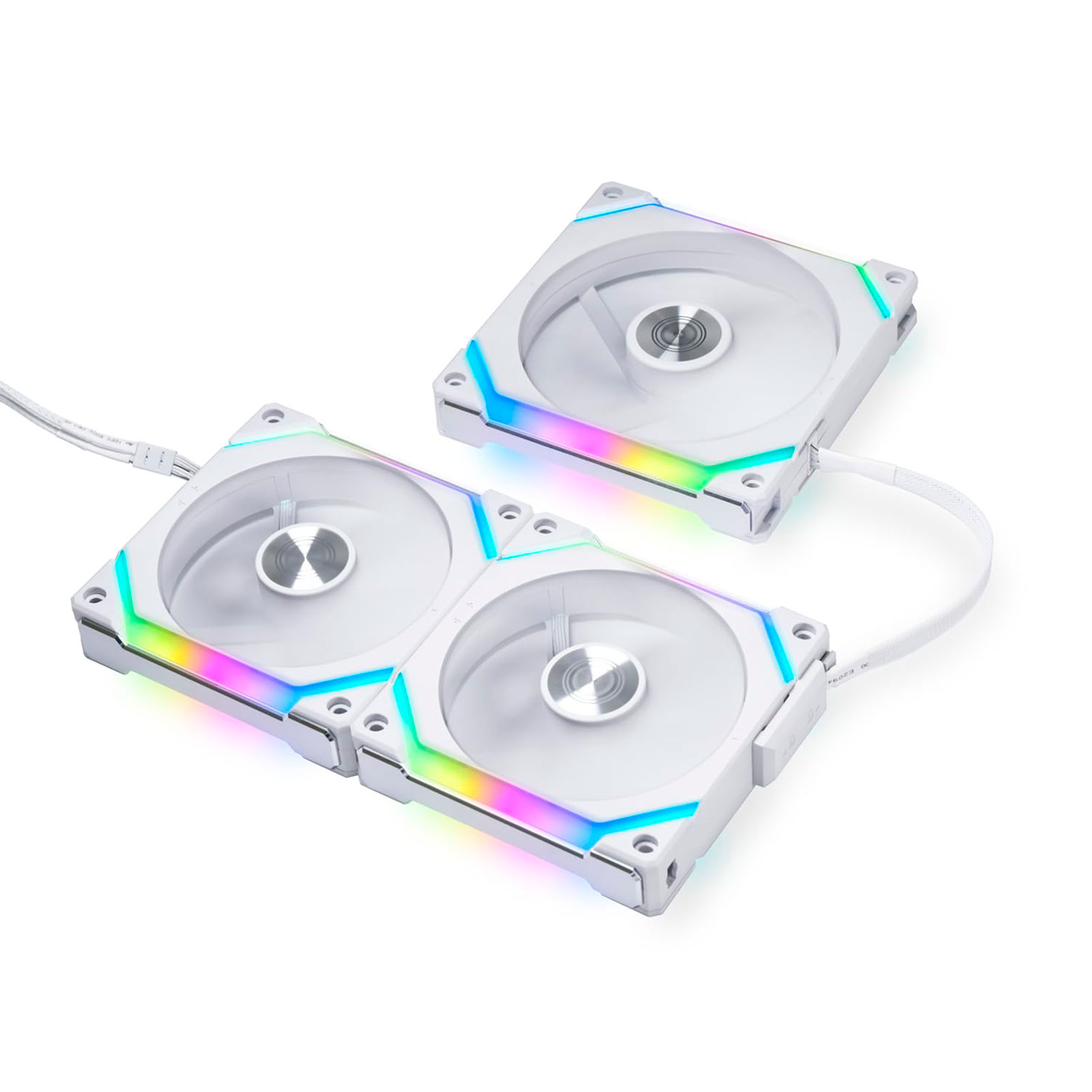

UNI FAN SL V2 revised its interlocking style to connect up to 6 fans in two clusters
to a single controller port, making cable management simpler.
Extension Cable
With the new 18 cm extension cable, the ability to bridge two clusters of fans to create a 3+3 daisy-chained cluster is offered.
These 6 fans can then be connected to a single port on the SL V2 UNI HUB controller.
The new daisy-chaining solution reduces the number of cables needing to be managed
at the back of the case and enables new lighting effects which can be continuous between the two bridged clusters.

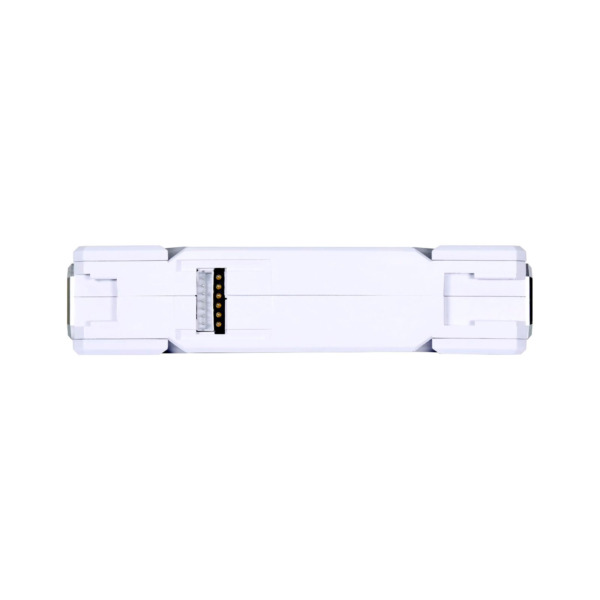

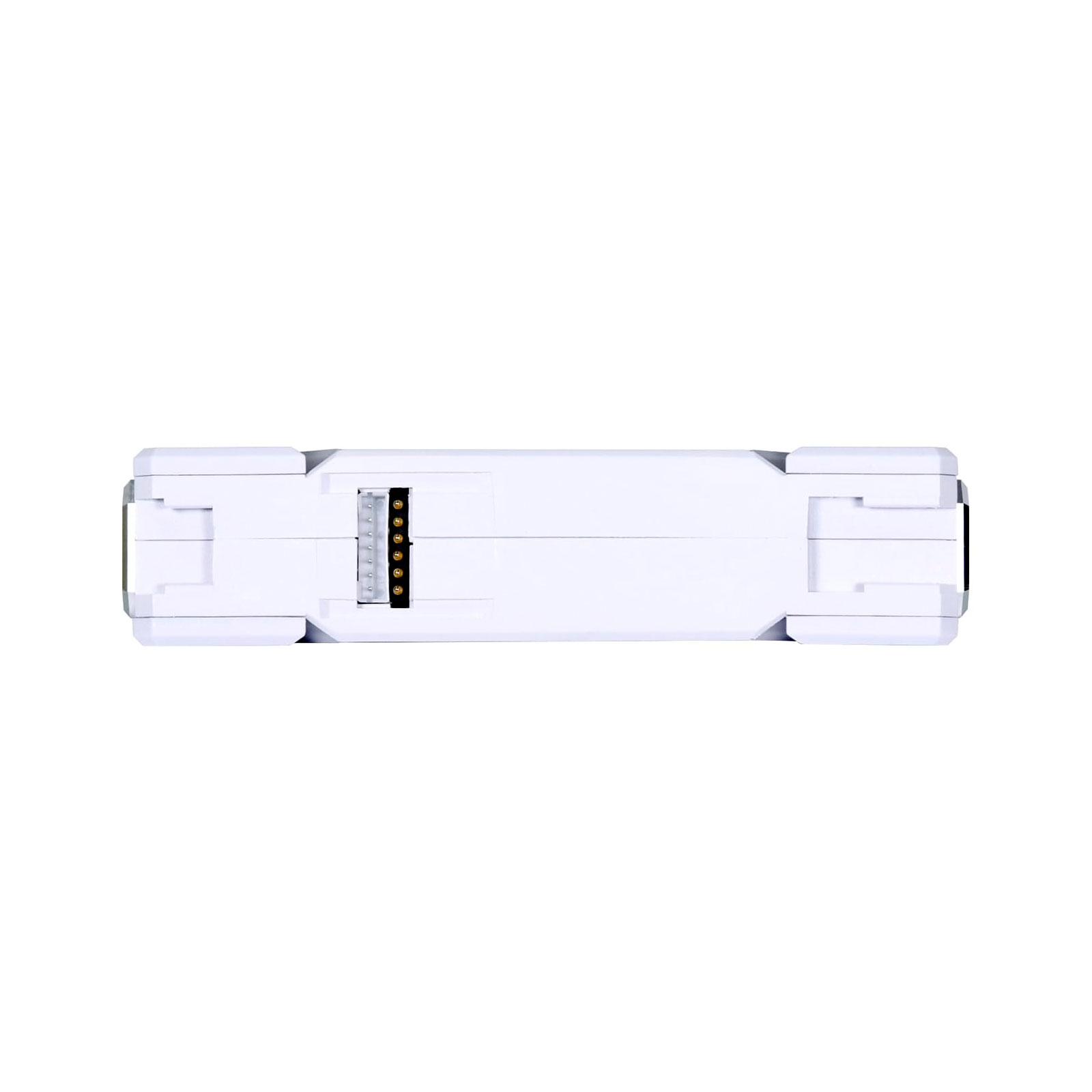

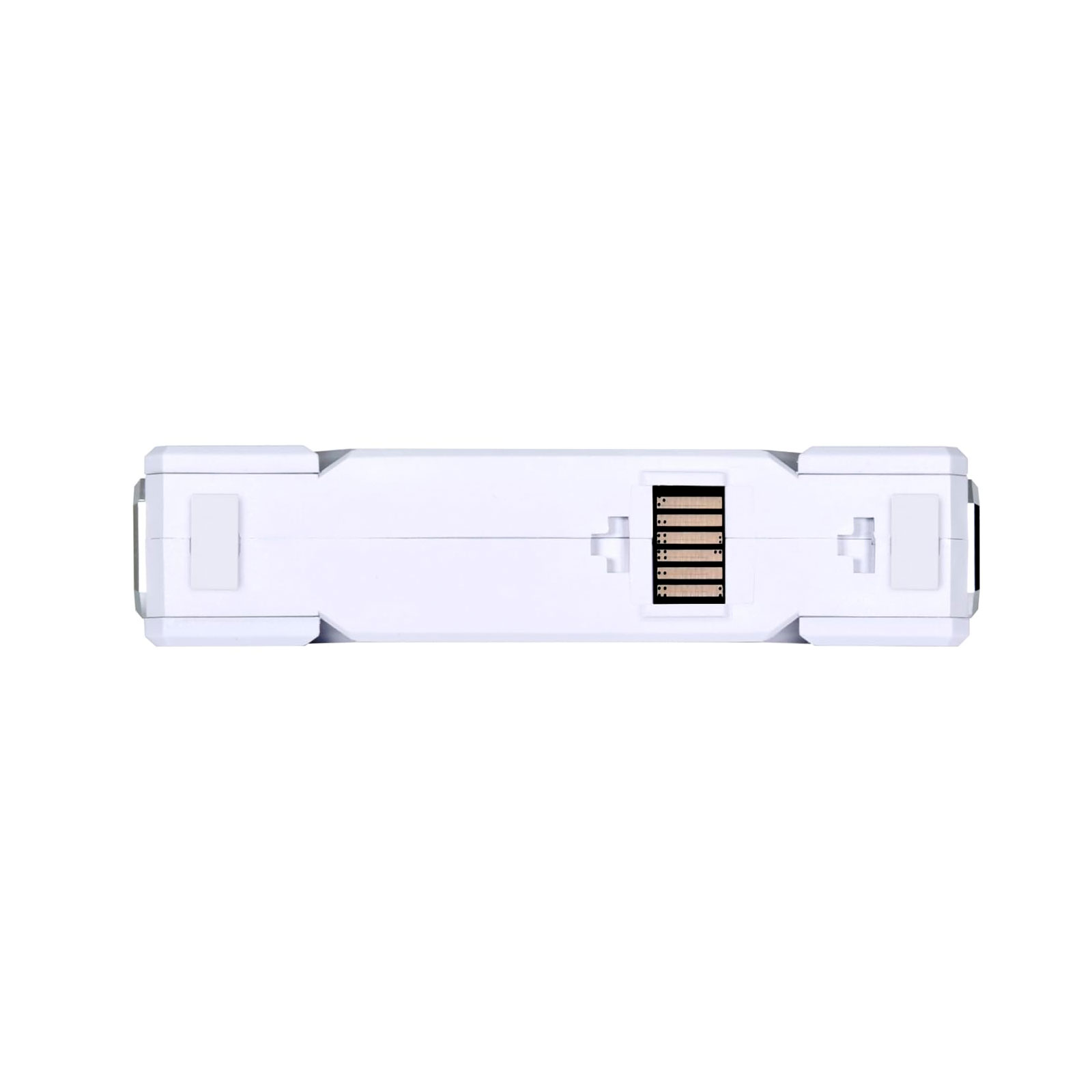

Plug-in Power Cable Module
The cable module is designed to plug in and sit flush with the fan frame, which doesn’t
require extra space for the module and reduces clearance issues with radiator fittings.

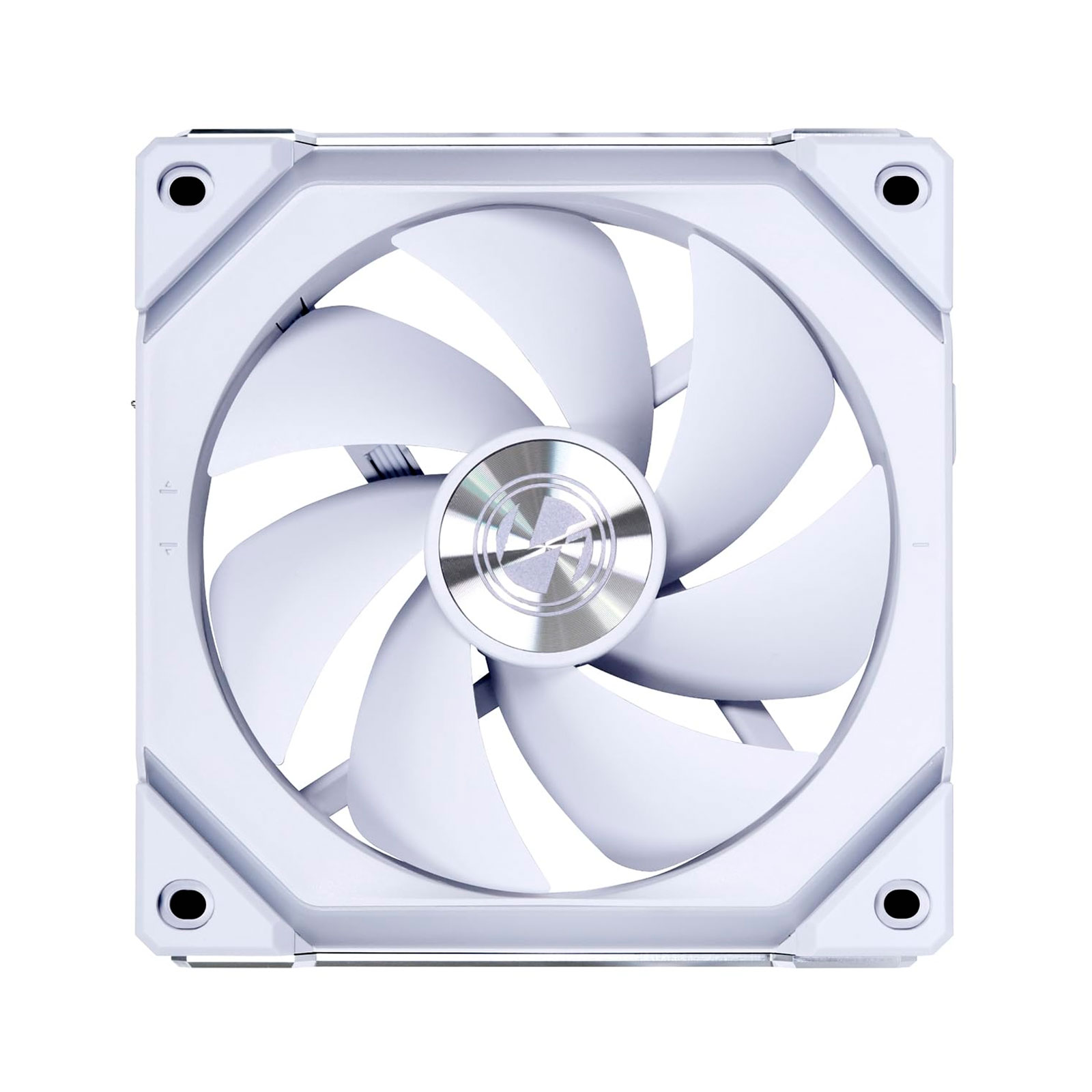

UNI FAN SL120 V2
Removable Key
The interlocking keys on each fan are removable to improve compatibility with radiator fittings.
MORE SLEEK LIGHTING DESIGN
Detail Oriented
The cut edge of the rubber pads is designed to create a smoother curve along the light diffuser.

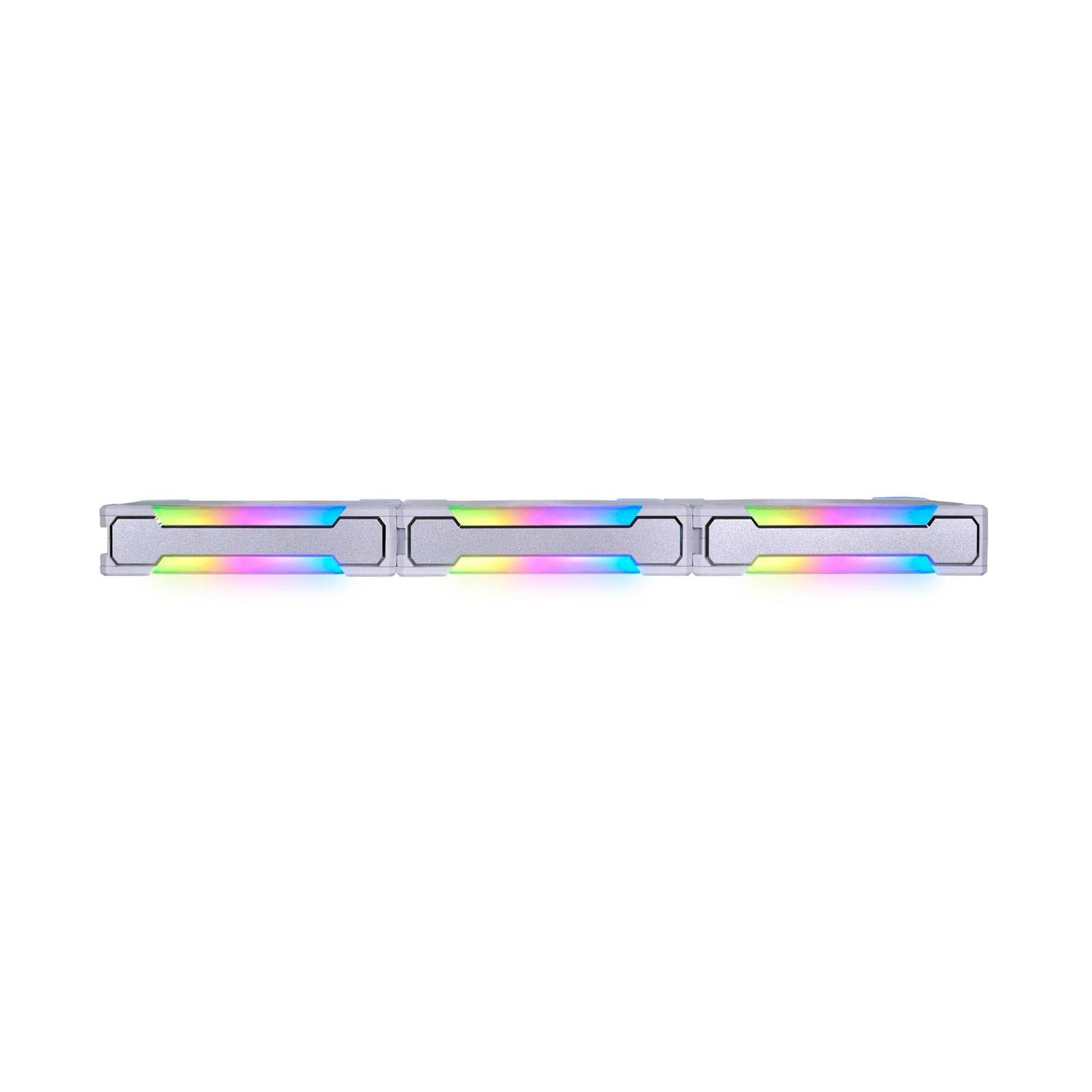

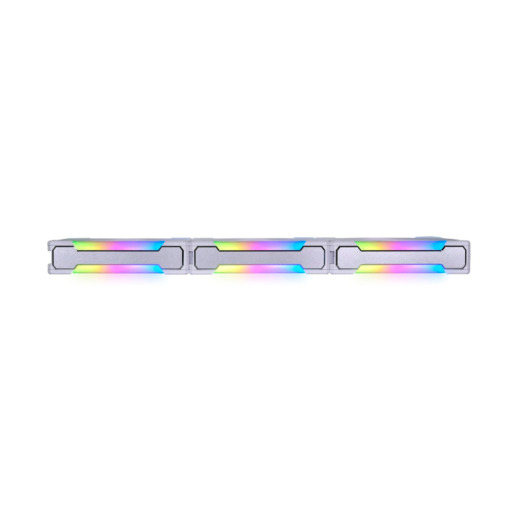

ontinuous LED Channel
The light gap between the two fans when interlocked together has been reduced from 5.6mm to 3mm, sketching out the elegant lighting effects.
Dazzling at All Angles

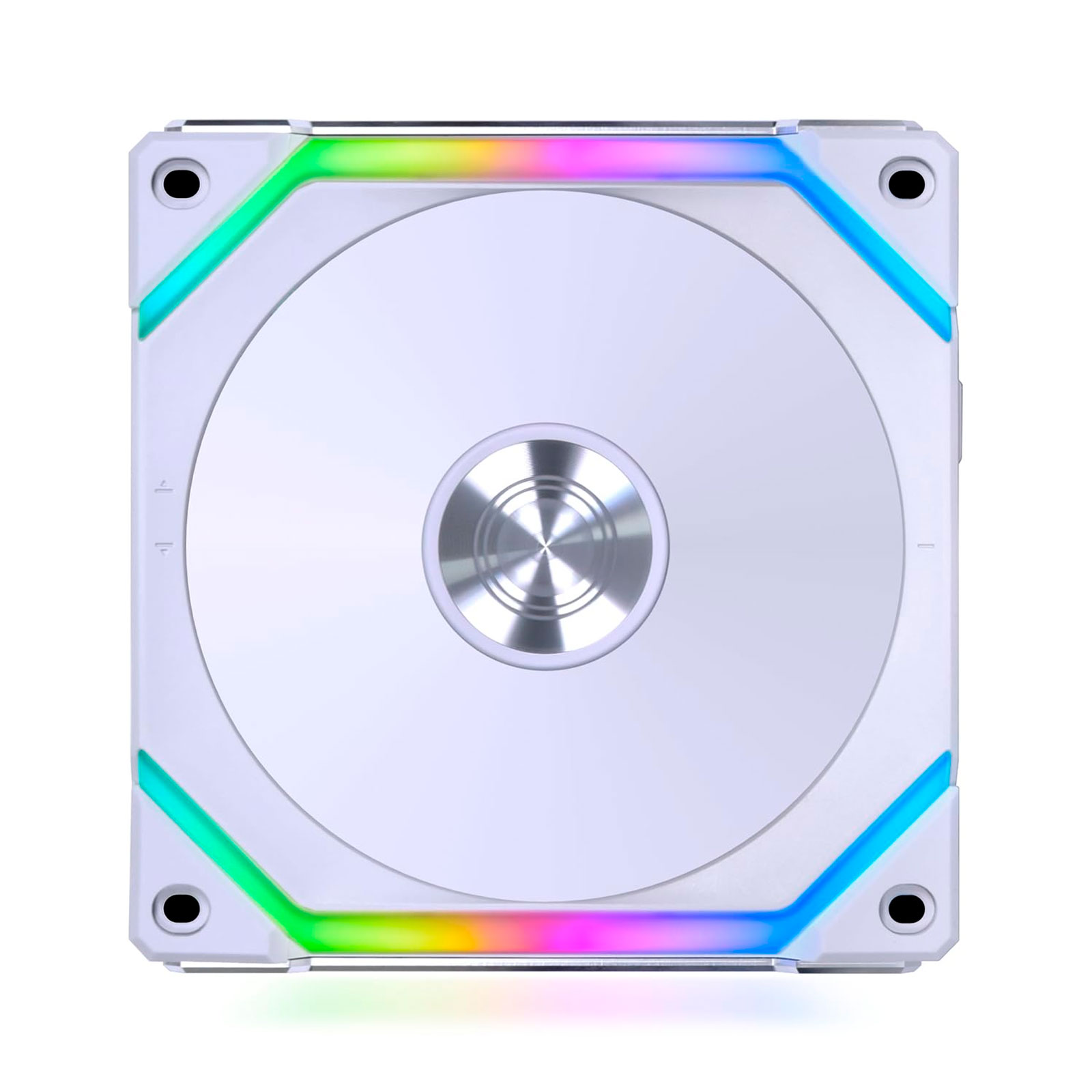

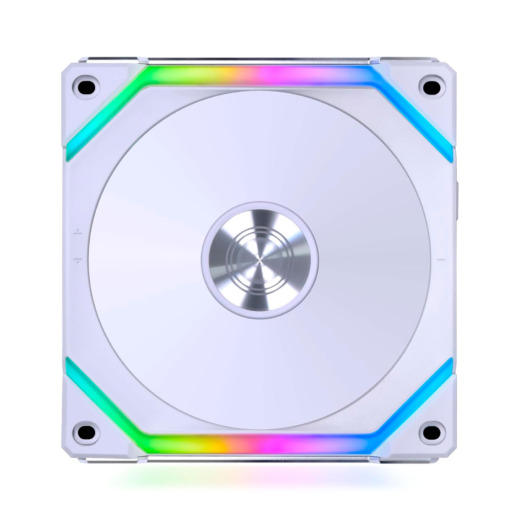

The center of the rear fan has been decorated with an aluminum medallion for an aesthetic look in any orientation.
Only One Cable
Combining both the power cable and the lighting cable into a single one, the cable module uses a 7-pin connector
to connect to the controller, efficiently reducing the number of cables cluttering the PC build.
Direct To Motherboard
The single pack includes a cable module that features a 4-PIN PWM and a 3-PIN SM-type ARGB cable
(3P to 3P 5V ARGB cable is included) to connect directly to the motherboard.
SPECIFICATIONS
PRODUCT NAME – UNI FAN SL V2 120
MODEL – UF-SL120V2-3W
COLOR – White
NUMBER OF FANS – 3
CONTROLLER – Sí
CONNECTOR TYPE – 1 × 4-PIN PWM + 3-PIN SM Type 1 × ARGB MB Adaptor
MATERIAL – PBT/PC/Aluminum)
RATED VOLTAGE – DC 12V (FAN) & 5V (LED)
FAN DIMENSION – 120 X 120 X 28 (mm)
FAN SPEED – 0, 250~2000 RPM
MAX. AIR PRESSURE – 2.59 mmH2O (Maximum)
MAX. AIRFLOW – 64.5 CFM (Maximum)
ACOUSTIC NOISE – 29.2 dB(A) Max
LOCKED CURRENT – 0（Automatic Protection
BEARING TYPE – Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE – DC12V & 5V
START-UP VOLTAGE – ≦5V
INPUT CURRENT – 0.17A
INPUT POWER – 2.04W
