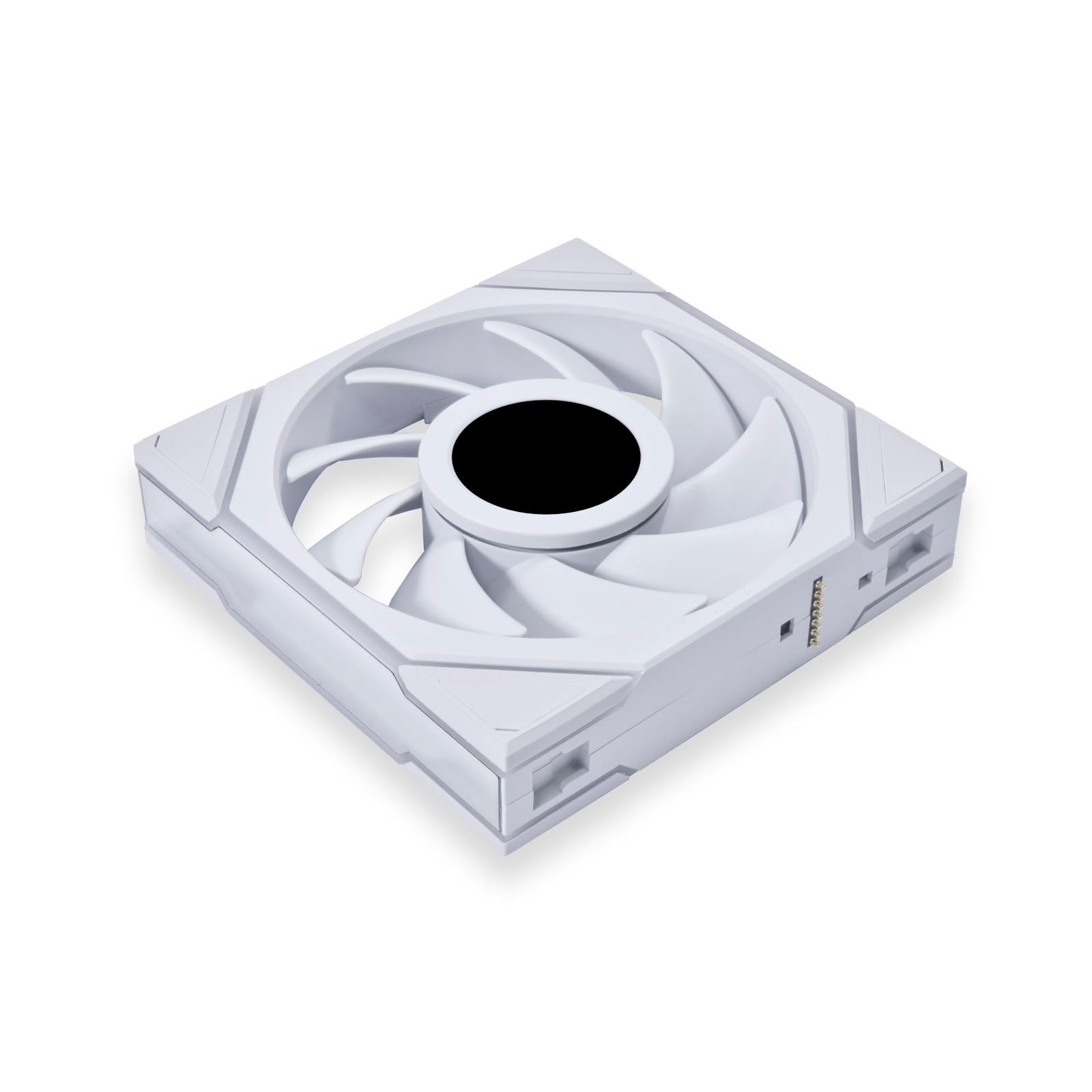

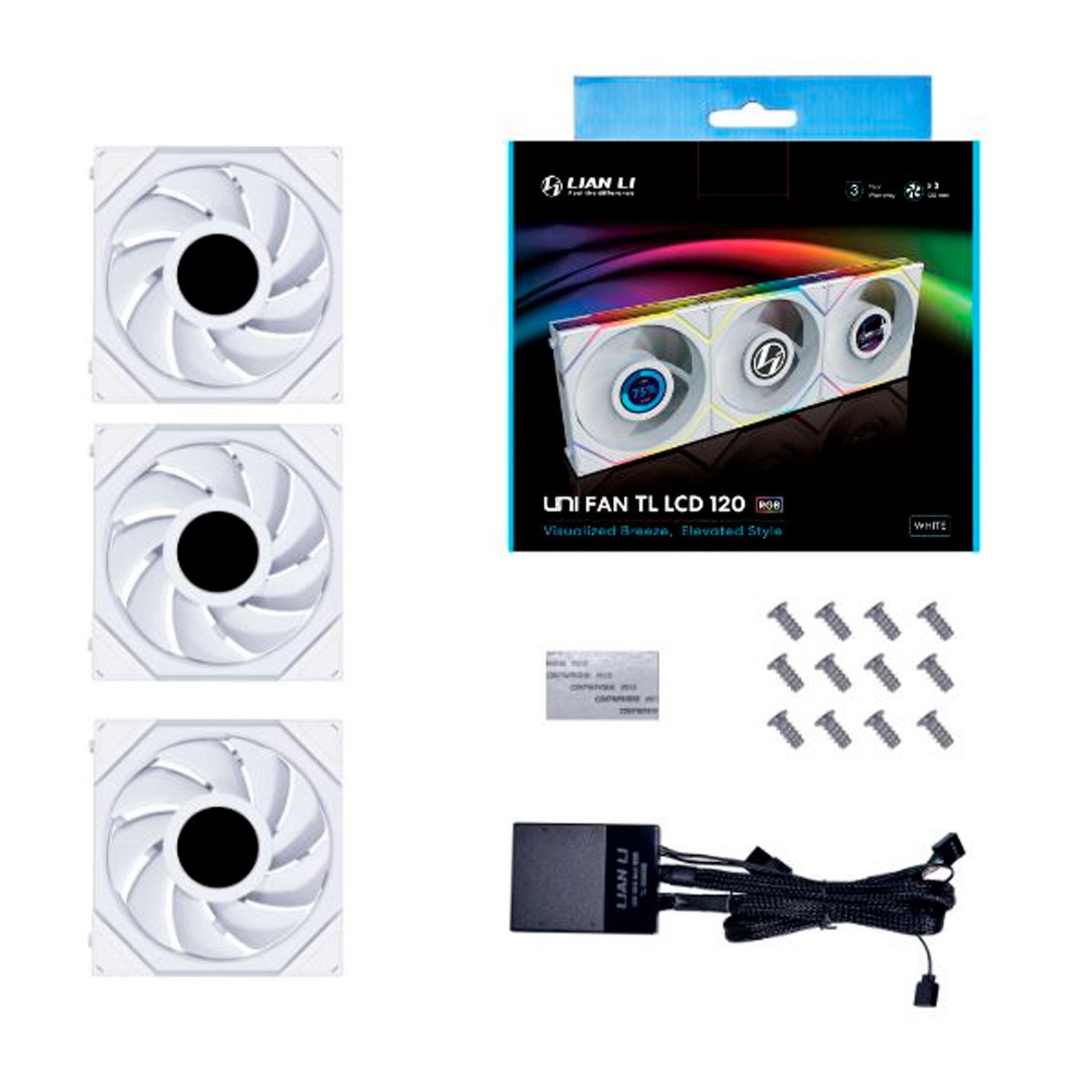

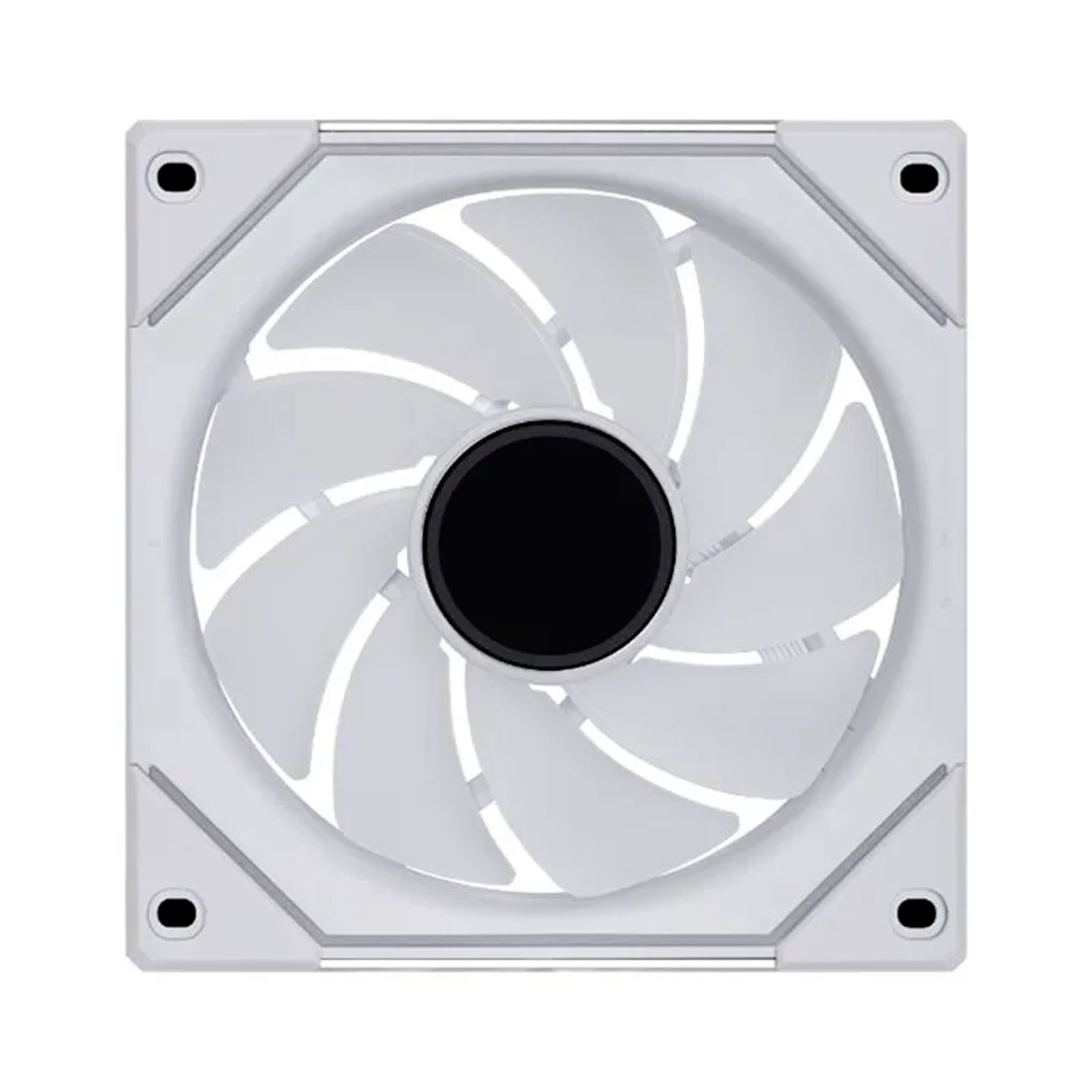

UNI FAN TL LCD 120mm White Triple Pack
- 1.6” LCD Screen with 400×400 resolution.
- Supports GIF, MP4, JPG, and PNG files.
- Suitable as a PC case with airflow and noise optimization.
- Comes with Lian Li exclusive flow-through animations through L-Connect 3.
- FDB bearing that provides stability, durability, and longevity.
- Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
- Features two light zones for increased lighting customizability.
- UNIFAN interlocking system for ease of cable management.
- LED lighting and fan speed controller shared with UNIFAN TL.
- Complete software control with L-Connect 3.
$159 exc. VAT
EMPOWER WITH CUSTOMIZABLE DISPLAY
The world’s 1st PC case fan with a LCD screen, which can be personalized and controlled using L-Connect 3.
● Power PCIe Cable
● 400 × 400 Resolution
● 500 (TYP) nits Brightness
● IPS Type Display
● SRGB-24-bit Full Color
PERFORMANCE DETAIL AT A GLANCE

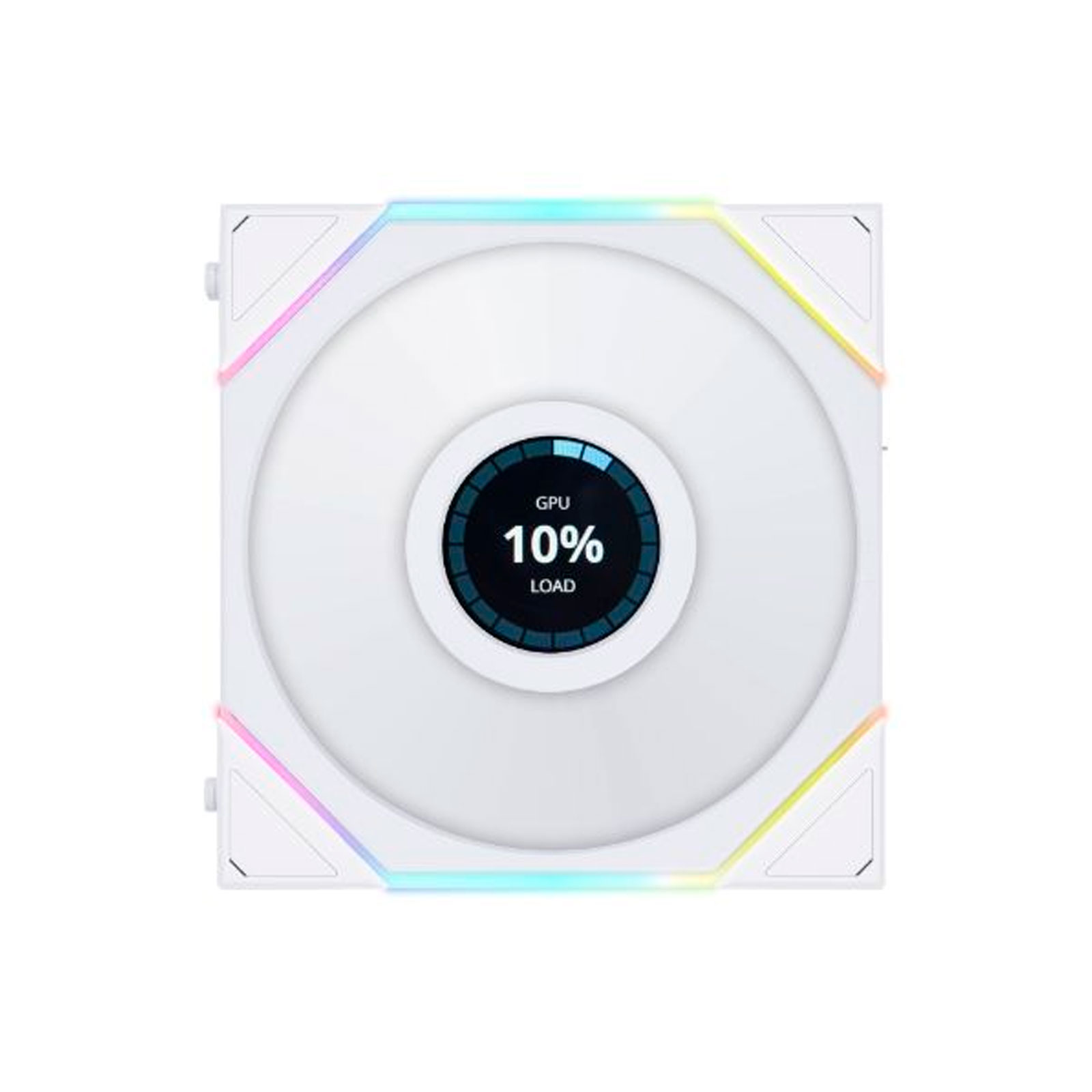

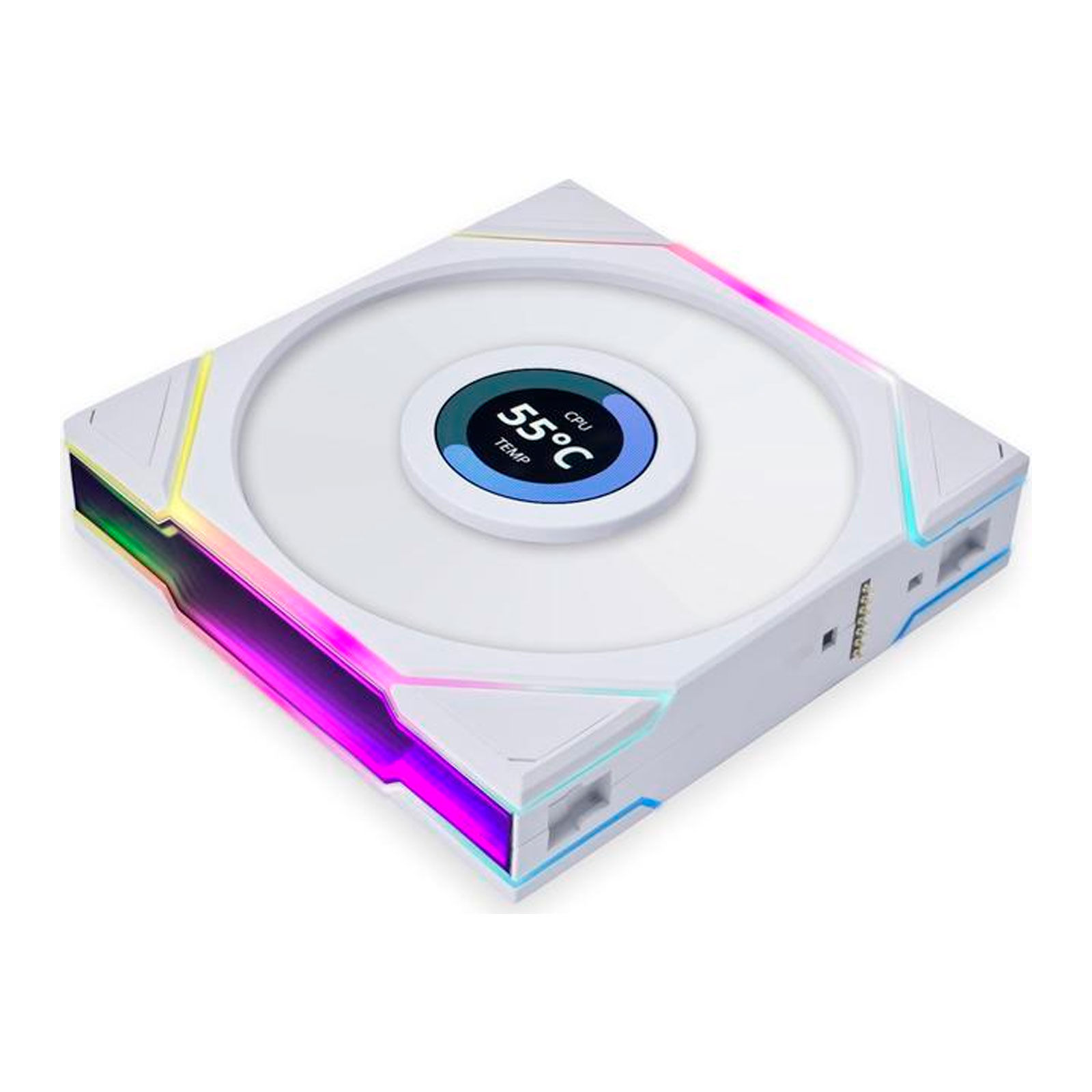

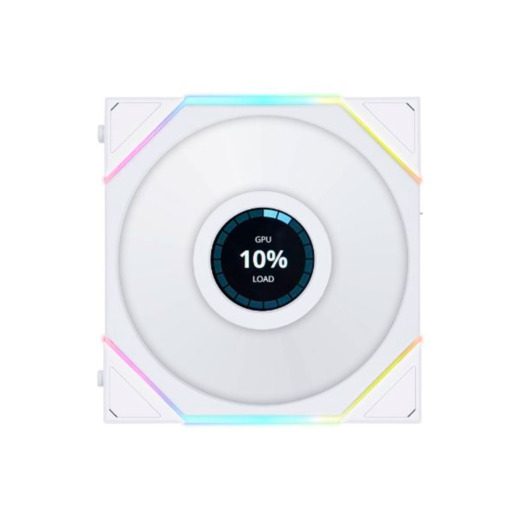

Monitor the temperature and loading of your CPU and GPU, as well as the fan speed,
instantly with built-in hardware monitor dashboards on the screen.
UNIQUE STYLE
Elevate your system’s style by uploading your own personalized MP4 / GIF / JPG / PNG.
NEXT GENERATION OF UNI FAN
Building on the design success of the UNI FAN series interlocking system, the UNI FAN TL series takes clutter-free setups to the next level.
Durable Daisy-Chain Solution
Experience a hassle-free setup with the slide-in daisy-chaining mechanism,
securely holding the fans in place and ensuring a snug fit for easy configuration.
Seamless Connection
A single cable is all you need to connect a group of up to 3 TL LCD fans to the controller,
which supports a maximum of 7 TL LCD fans per controller, with a group of 3 on each port (up to 16 TL+TL LCD fans in total).
To operate 8 to 12 TL LCD fans, please use 2 controllers simultaneously.
Note that L-Connect 3 doesn’t support more than 13 TL LCD fans.
Well-Adapted for all Configurations
The interlocking key at the end of TL LCD fans is removable for enhanced
compatibility and less interference with other components.
SOPHISTICATED CONTINUOUS RGB LIGHTING
Each UNI FAN TL fan has 26 LEDs with an elegant side diffuser on the 2 sides of the fan
frame that wraps around the edges of the anti-vibration pad.
DAZZLE WITH INFINITY MIRROR
Illuminate your setup with the UNI FAN TL’s enlarged infinity mirror (30% larger than UNI FAN SL-INF on the side)
on both sides of the frame, showcasing clear and 0.7mm gap multi-layer lighting effects.
INDIVIDUAL LIGHTING EFFECTS
Easily customize different lighting effects on the two sides of the LED strips using L-Connect 3 for a unique setup.
You can also sync your TL fans and apply the same lighting effect you like across all of them.
SMOOTH APPEARANCE
Cover the screws with anti-vibrate rubber pads for a seamless and uninterrupted aesthetic appeal.
SPECIFICATIONS
PRODUCT NAME – UNI FAN TL LCD 120
MODEL – 12TLLCD3W
NUMBER OF FANS – 3
CONTROLLER – YES
CONNECTOR TYPE – UNI FAN Controller Cable x 1 (P-7P)
FAN DIMENSION – 124 x 120 x 28 mm
FAN SPEED – 0, 350~1900 RPM
MAX. AIR PRESSURE – 2.9 mmH2O (Maximum)
MAX. AIRFLOW – 62 CFM (Maximum)
ACOUSTIC NOISE – 27 dB(A) Max
INPUT POWER – 7.08W
MATERIAL – PA66 / PBT
RATED VOLTAGE – DC 12V (FAN) & 5V (LED)
BEARING TYPE – Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE – DC12V & 5V
